MT-206/MT-207 Trolley Installation Guide
- 5 -

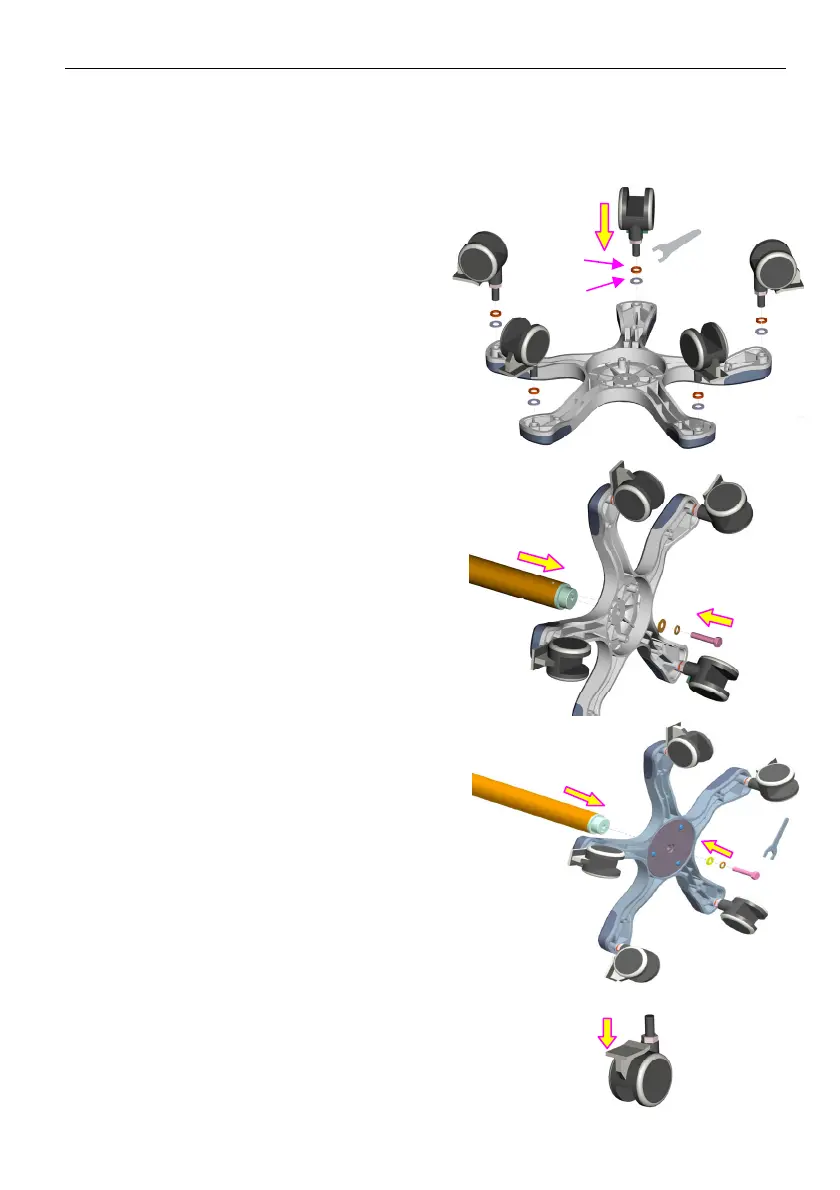

Procedure for Assembling Trolley:
1 Open the package and collate all the
parts with the packing list.
2 Take the chassis assembly out and
upturn it on the packing foam. Put an
A washer and then a B washer on the
bolt for each caster. Tighten the five C
casters to the chassis using the
provided spanner.
3 Tilt the chassis, and insert stand post
assembly into the groove of the
chassis. Make sure they are fixed well.
Install the D bolt, E washer and F
washer, then tighten them from the
center hole in the chassis.
4 For MT-207 trolley, a balancing
weight is installed on the chassis.
After installing the stand post as
shown in step3, install the D bolt, E
washer and F washer, then tighten
them from the countersink in the
chassis.
NOTE:
The caster has a pedal on it. You can
step on it to stop the Trolley, while push
it up to move the Trolley.
