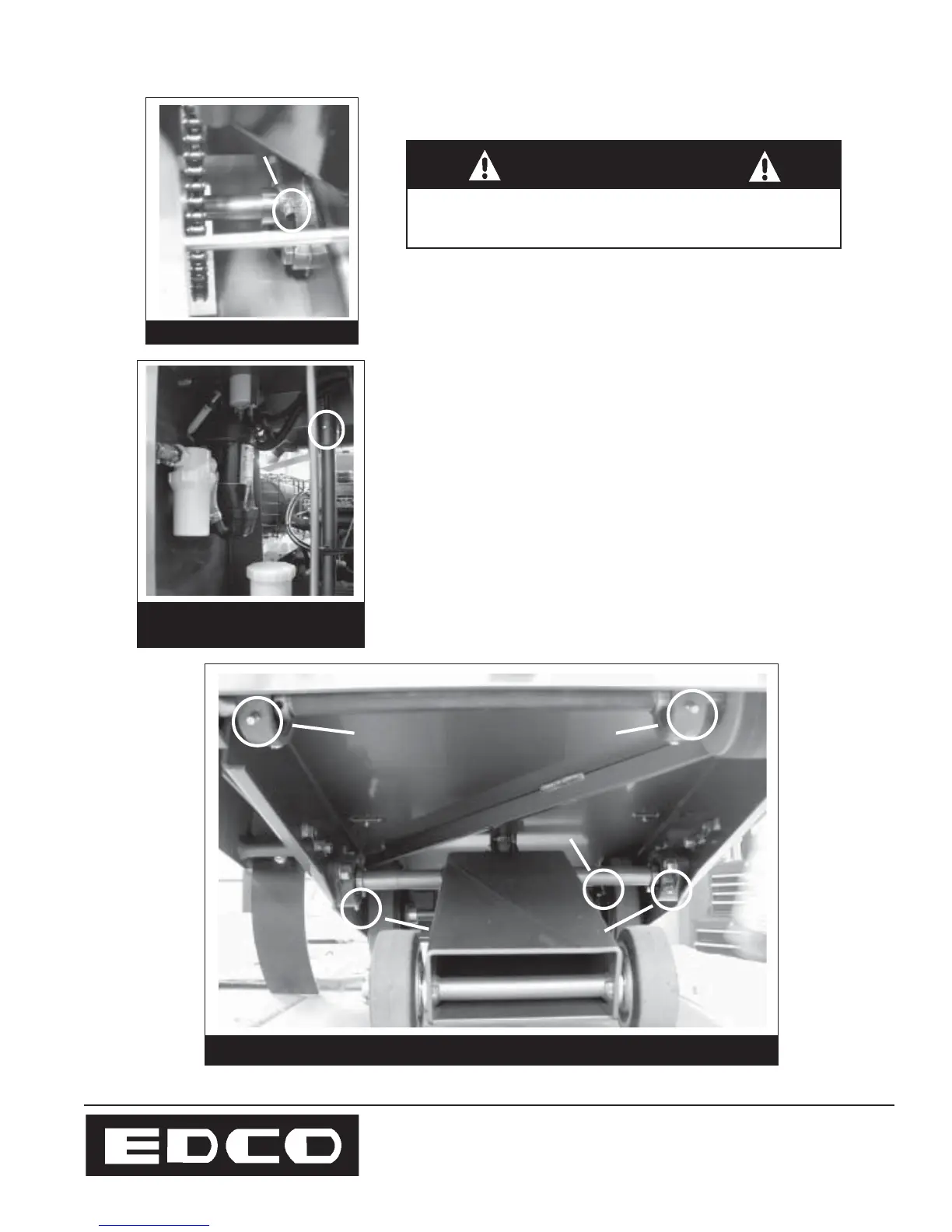

Grease Bearings - (9 Total)
Arbor Shaft Bearings (2) must be greased every 4 hours.
All other Bearings (7) must be greased every 40 hours.
Those include:
Front Fork Bearings (2), Rear Wheel Bearings (2),
Drive Axle Bearings (2), and the Depth Control Handle
Wheel Bearing (1).
Arbor Shaft Bearings (2)
(Must be lubricated every 4 hours)
Front Fork Bearings (2)
Rear Wheel Bearings (2)
(One side
not shown)
Arbor Shaft Bearings (2), Rear Wheel Bearings (2), Front Fork Bearings (2)
Important!
Arbor Shaft Bearings MUST be lubricated
EVERY FOUR HOURS!
Depth Control
Handwheel Bearing (1)
(Left side
not shown)
Drive Axle Bearings (2)
