 When using the power inverter on a boat, please connect it to the boat's ground system.
 When using the power inverter at home, please connect it to the home ground wire system. If there is no ground wire
system at home, please connect it to the negative terminal of the battery.
 When using the power inverter outdoors, please connect it to the negative terminal of the battery. It will not affect the
normal working of the power inverter without connecting the ground wire.
6.4 GFCI breaker or GFCI Outlet installation and GFCI Receptacle Tester
Electronic experience required. Please contact our customer service team for a detailed introduction.
6.5 Please pay attention when the power inverter works for the main power system in RV or at home
When the power inverter is connected to the RV power system or home power system for power supply, the
inverter could be damaged If the shore power or alternator is connected at the same time by mistake when the power
inverter is working. The AC input voltage is not accepted by the power inverter.
To prevent this case, we recommend installing a Dual Power Automatic Transfer Switch (ATS).
The ATS mainly used for testing whether normal(N) or spare(R) power is normal or not. Here is the compatible
specification:
1
2P;
2
120V/60HZ;
3
Travel switch includes shutdown function

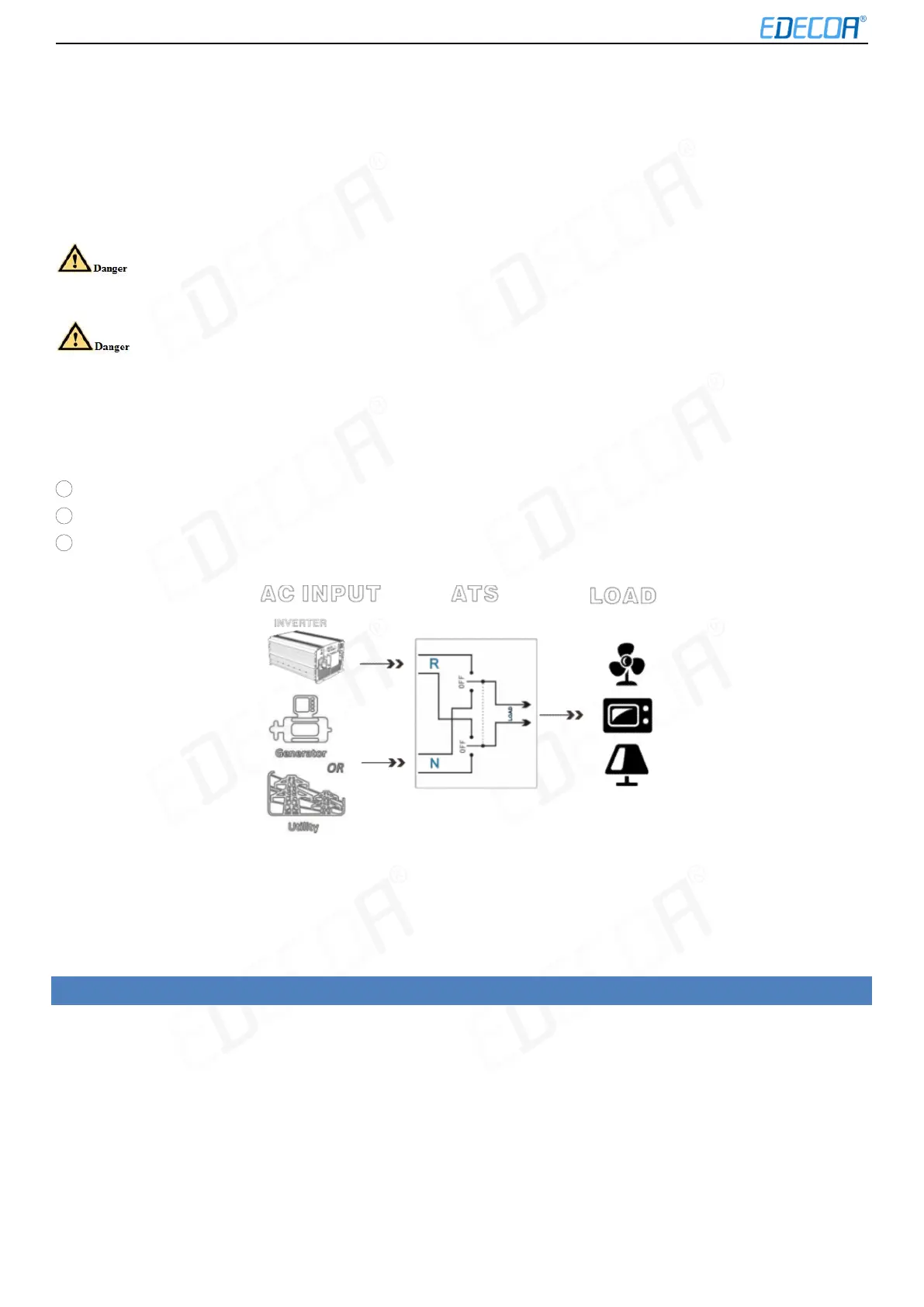

ON (R )-OFF-ON(N), Here is the schematic diagram of RV power system.
Note:
The ATS must contain an intermediate disconnect setting to prevent the generator or grid from being connecting at the
same time as the inverter, resulting in the inverter being burnt.
The switching time of the ATS is 1-2s, and the electrical device will stop working in a short time.
7.ABOUT THE REM O TE CONTROL LER
Tips: The switch of the remote control and the switch of the inverter is parallel.
Therefore, when any one controls the inverter, the other switch must keep the "OFF" state.
According to different models, we have two models of remote control (ED-RC, ET-RC). However, it is not possible to
replace each other.
