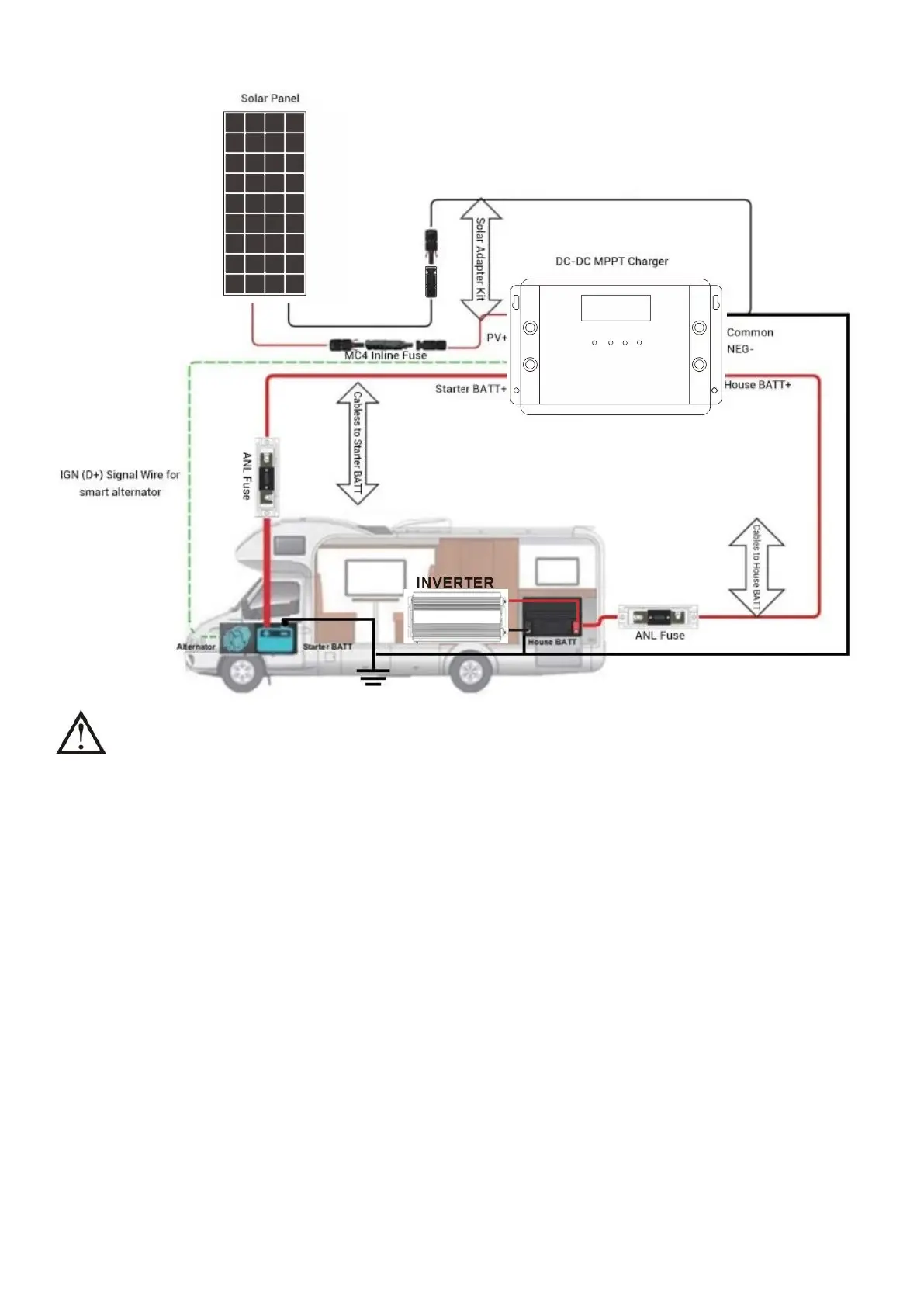

Solar System Connection Diagram (on vehicles)
How to use spare fuses
When installing and connecting the inverter, incorrectly connecting the battery to the positive and
negative electrodes of the inverter will damage the internal fuse of the inverter.
It can be replaced with spare fuses, and the inverter will return to normal after the positive and
negative poles are properly connected.
2.3 Battery Connection
CAUTION: For safety operation and regulation compliance, it’s requested to install a separate DC
over-current protector or disconnect device between battery and inverter. It may not be requested
to have a disconnect device in some applications, however, it’s still requested to have over-current
protection installed. Please refer to typical amperage in below table as required fuse or breaker size.
WARNING! All wiring must be performed by qualified personnel.
