Note: Lithium-ion batteries are not supported to be connected in series, confirm with your
battery supplier before operation.
24V battery pack 2 (series-parallel connection)
Series and parallel connection: The same batteries, of the same capacity, can be connected in series
and parallel.

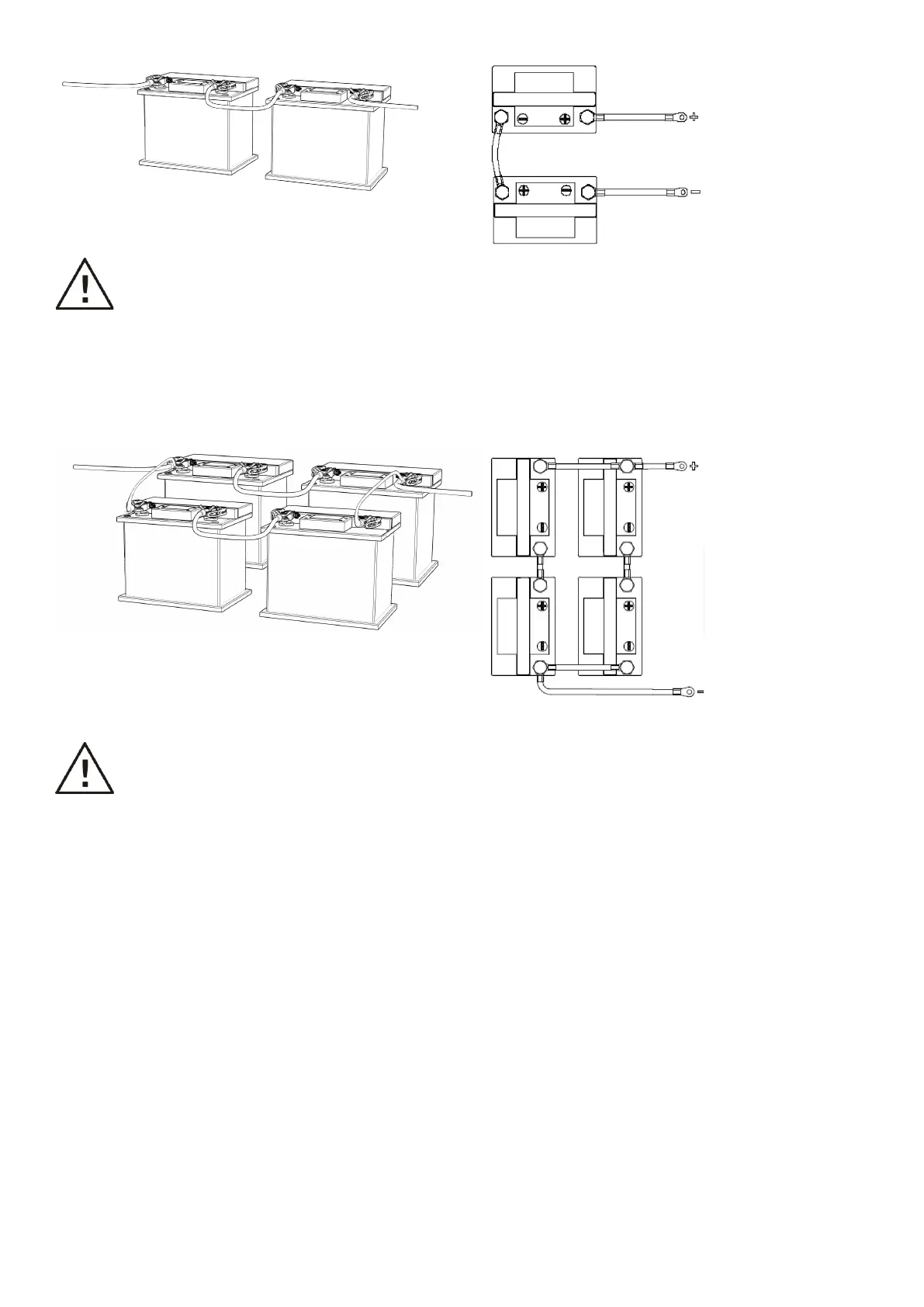

The diagram shows 4 identical 12V batteries forming a 24V battery system.
Note: Lithium-ion batteries are not supported to be connected in series, confirm with your
battery supplier before operation.
