EdgeStar Portable Air Conditioner 8
After you have installed the exhaust hose and window kit, you can
plug in your portable air conditioner and start using it.

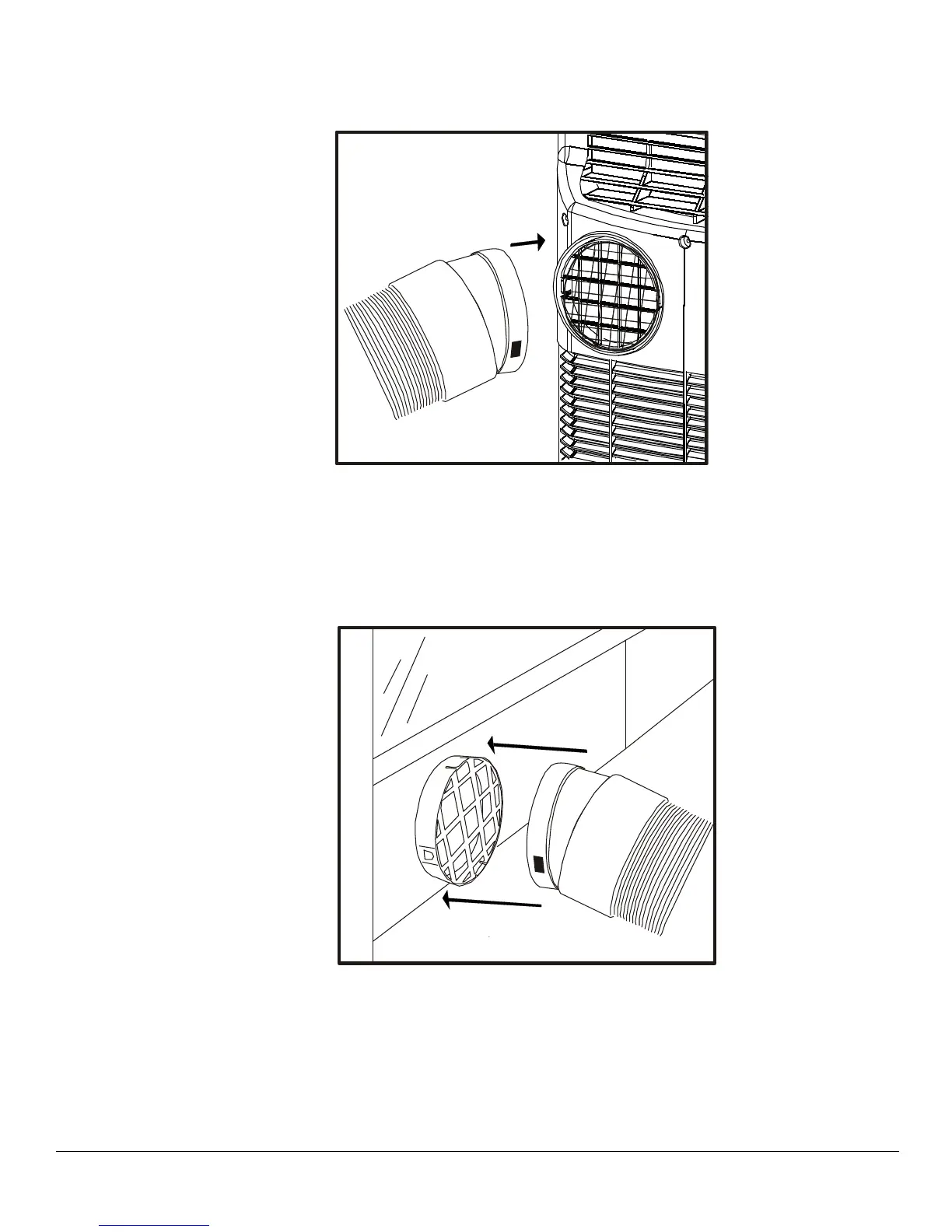

Connecting the duct
connector to the unit
Connecting the duct
connector to the grated
adapter
7. Align the slots on the duct connector to the tabs and
snap into the back of the unit.
8. Align the slots on the duct connector to the tabs on the
grated adapter and snap in place.



