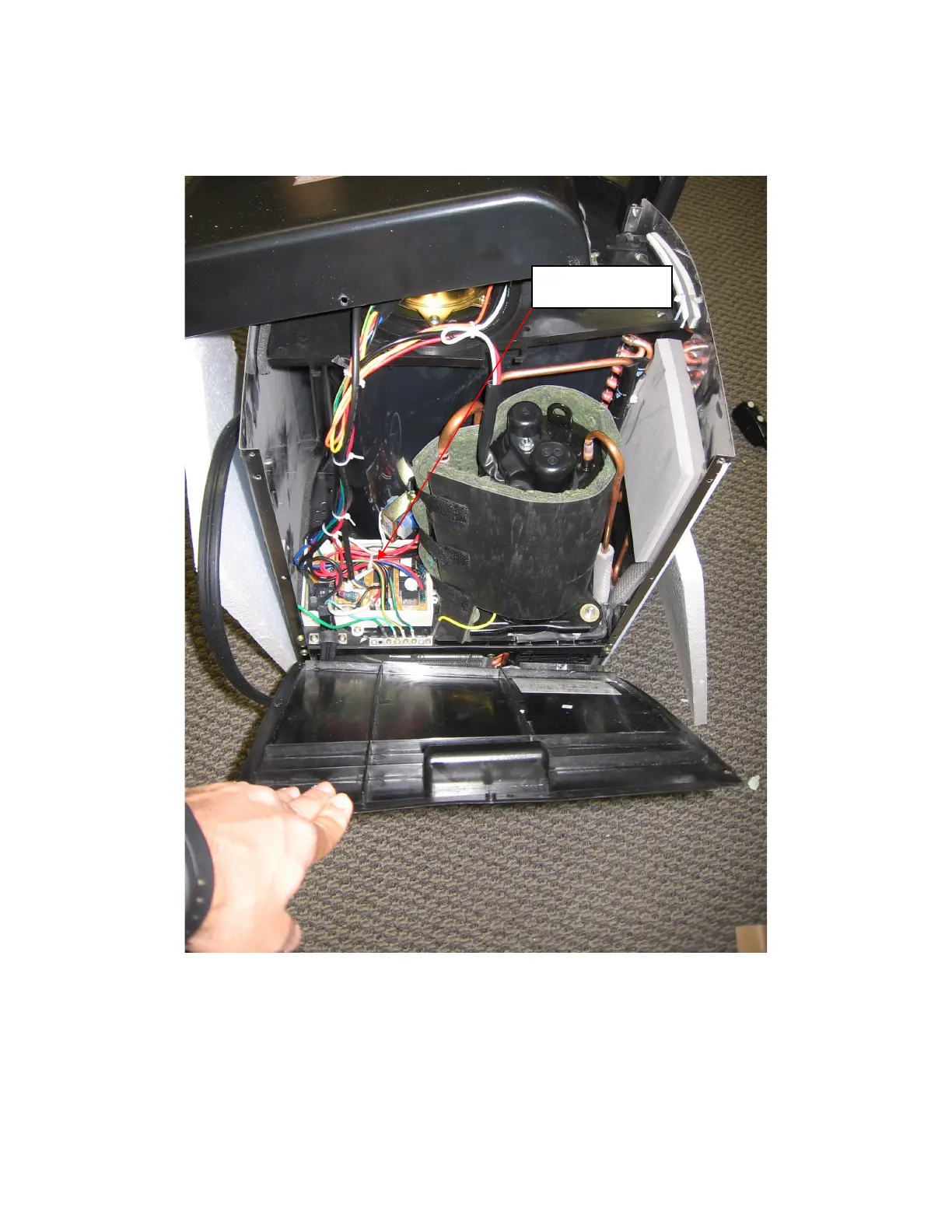

6) Now you can “peel” the back panel of the machine back and see the control
board. See fig. 4.
Fig. 4:
Control board
7) Once you have access to the control board, look for loose clips. The most
common clip that is disconnected to the control board is attached to a red wire.
Grab this clip (if it is unattached) and plug it into the appropriate terminal on the
control board. See fig. 5.
NOTE: Make sure the unit is disconnected from electricity!
