EdgeStar AP420HS User Manual

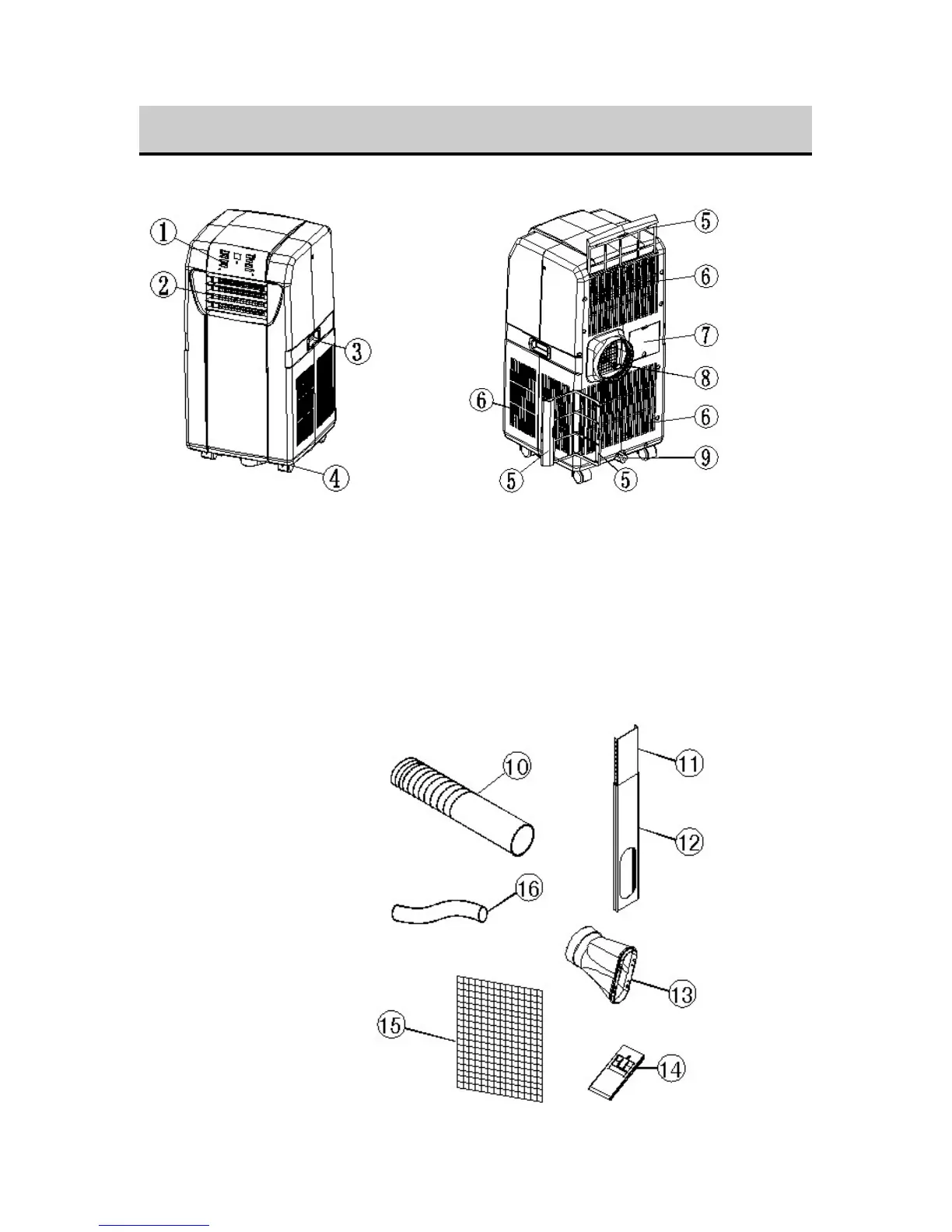

Parts Identification
Front Back
1. Control panel
2. Front air vent
3. Handle
4. Caster
5. Pre-filters
6. Air inlets (evaporator and condenser)
7. Power cord compartment
8. Exhaust air outlet
9. Water stopper/drainage point
Accessories
10. Exhaust hose
11. Window kit (part 2 )
- for filling the open
window space
12. Window kit (part 1) -
used to connect the
exhaust hose and
filling the remaining
open window space
13. Oval adapter for
insertion onto hose
and into window kit
14. Remote control
15. Active carbon filter
16. Drain tube for
continuous drainage
5

EdgeStar AP420HS Specifications

General

Brand	EdgeStar
Model	AP420HS
Category	Air Conditioner
Language	English
