Co2 cylinder comes empty due to HAZMAT restrictions. It will need to be filled locally at any air/gas
supplier prior to use.
13

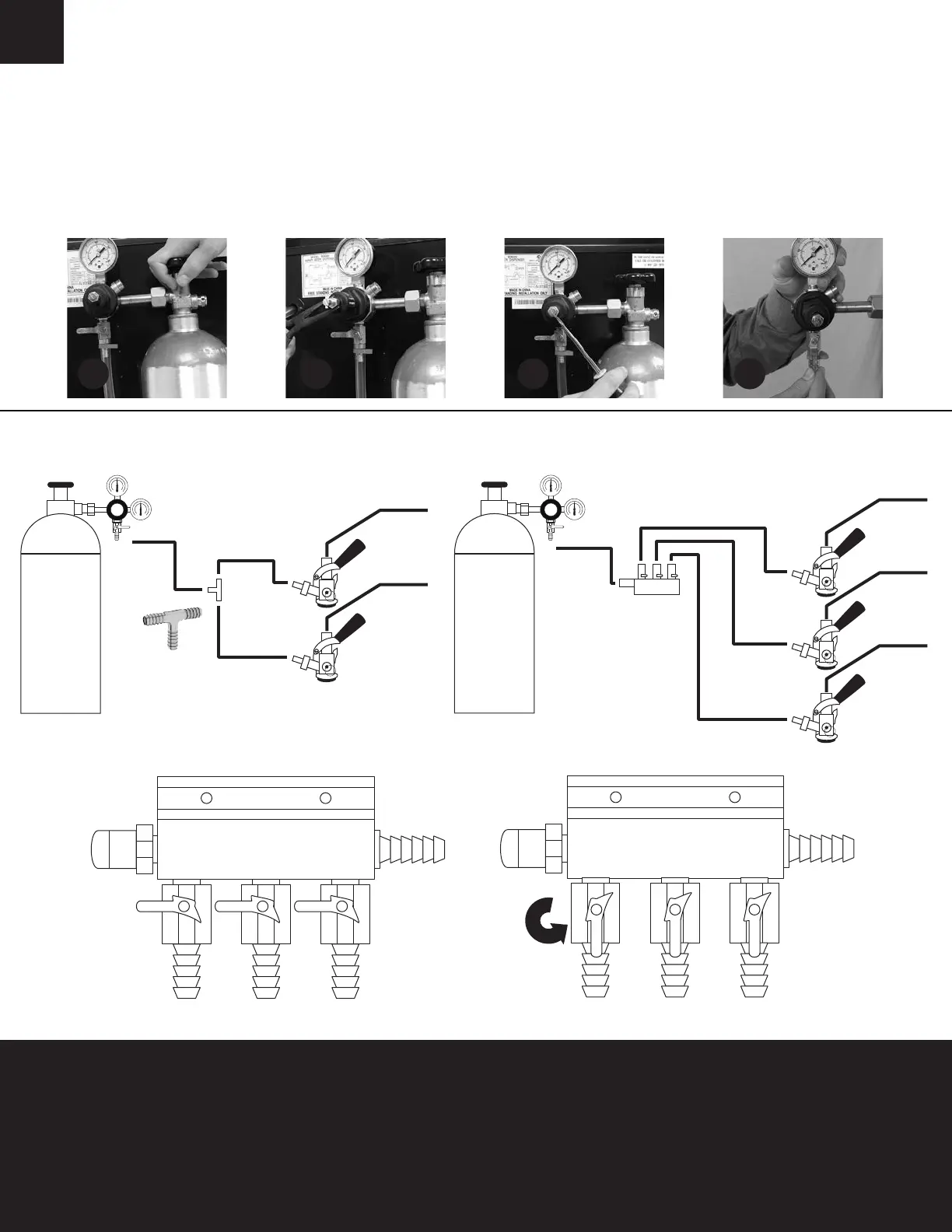

Calibrating the Regulator
(A) With the shut-off valve on the regulator closed, open the valve on the CO2 cylinder (#8) completely.
(B) With a pair of pliers, loosen adjustment nut allowing adjustment screw to be turned counter-clockwise until adjustment screw is completely open.
(C) Using a flathead screwdriver, slowly turn the regulator adjustment screw clockwise until the desired pressure is shown on the pressure gauge on the top. By turning
the screw clockwise it will increase (+) pressure and counterclockwise will decrease (-) pressure. Under normal circumstances, we recommend setting the regulator at
10-12psi. NOTE: When adjusting pressure from a high pressure to a lower pressure, you will need to release the higher pressure out by pulling the manual pressure
release valve ring located on the side of the coupler.
(D) Once the desired pressure is set, open the shut-off valve by turning the lever down (6 o’clock position or parallel to the CO2 tube). Gas should now be flowing from
the regulator to the keg coupler. You will hear the keg pressurizing. The output needle will drop momentarily while the pressure is equalizing. Then, the needle will
return to the point you set it at.
NOTE: Other conditions, such as altitude, beer type, and temperature may require some adjustment. It is always wise to follow up any adjustment to the regulator
with a brief pull of the pressure release valve ring on the regulator or coupler to ensure an accurate output reading.
Multiple Keg Configurations
ON
OFF
A
B C
D
CO2 LINE
BEER LINE
CO2 LINE
BEER LINE
For twin tap models
For triple tap models
*Manifold included in triple tap models
