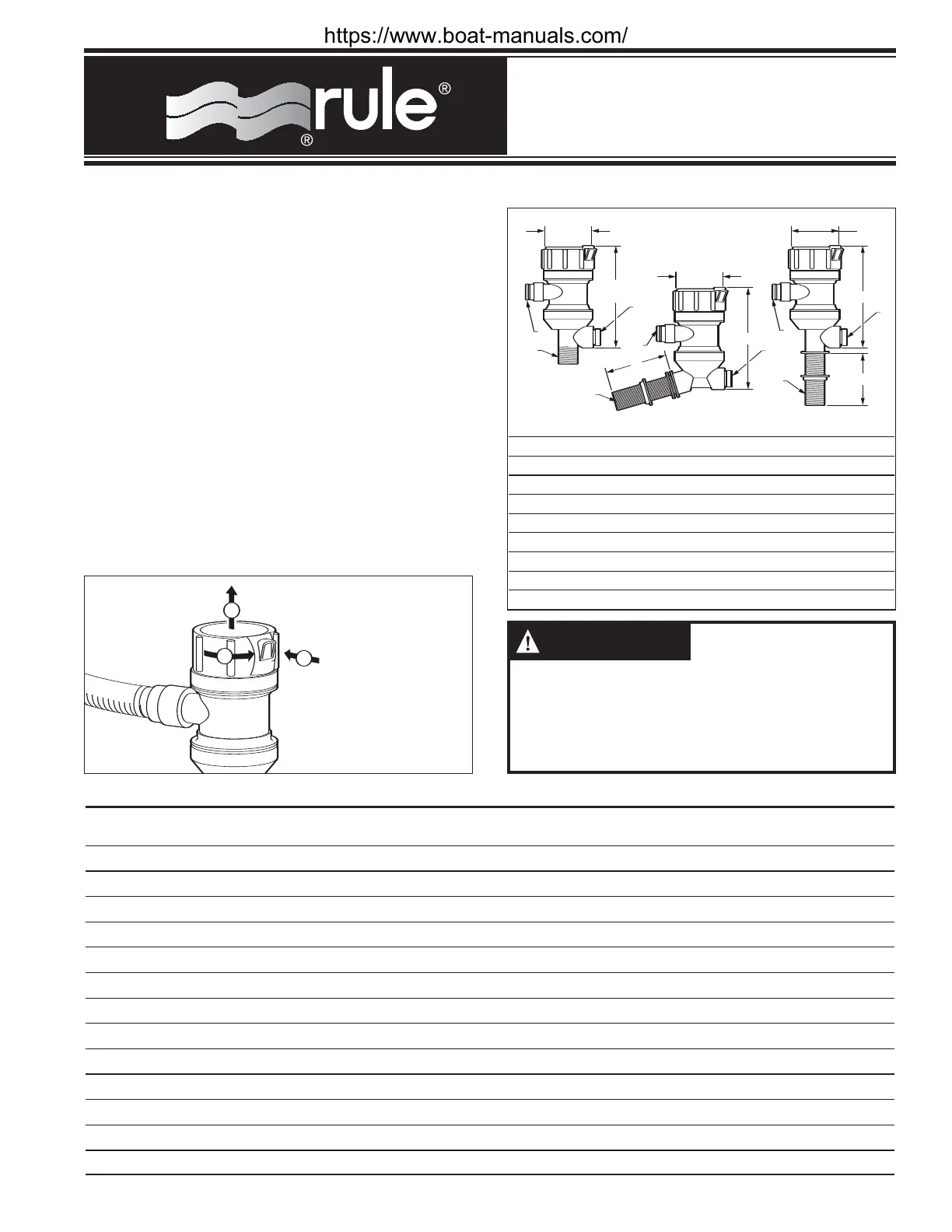

Tournament Series
Livewell/Baitwell Pumps
Description
Powerful and long lasting, Rule Tournament Series Cartridge
Pumps offer outstanding performance as well as the versatility of
replacing the motor cartridge if the motor expires. The cartridge
feature also allows complete access to the impeller for easy
cleaning and maintenance. Replacing the motor cartridge only
allows the fittings and hose to remain totally intact.
To Change Motor Cartridge
1. Block off the thru-hull before removing the motor cartridge
2. Disconnect wiring
3. Press cartridge button, twist counterclockwise and pull
motor cartridge straight up
4. Reconnect wire to new motor cartridge
5. Align the arrows and press the new motor cartridge down
firmly. Twist motor housing clockwise until cartridge locks
in place
Instruction Guide
Models 401C, 403C, 405C, 401STC,
403STC, 405STC, 401FC, 403FC, 405FC
Replacement motors 45DR, 46DR,47DR
This pump is designed for
use with fresh and salt
water. Use with any other medium, including
particularly hazardous, caustic or corrosive
substance, could result in damage to the pump, the
surrounding environment and injury to persons or
property, including possible exposure to hazardous
substances. This pump is for water applications only.
WARNING
Model # Description Required GPH at GPH at
Fuse Size (A) Open Flow 3.35 ft.
401 C 500 GPH Livewell Pump with Angled Pickup Tube 2.5 500 340
403 C 800 GPH Livewell Pump with Angled Pickup Tube 5 800 490
405 C 1000 GPH Livewell Pump with Angled Pickup Tube 6 1000 710
401STC 500 GPH Livewell Pump with Straight Pickup Tube 2.5 500 340
403STC 800 GPH Livewell Pump with Straight Pickup Tube 5 800 490
405STC 1100 GPH Livewell Pump with Straight Pickup Tube 6 1100 790
401 FC 500 GPH Livewell Pump with 1" Straight Pickup Tube 2.5 500 340
403 FC 800 GPH Livewell Pump with 1" Straight Pickup Tube 5 800 490
405 FC 1100 GPH Livewell Pump with 1" Straight Pickup Tube 6 1100 790
Replacement Motors
45DR 500 GPH Replacement Motor 2.5 500 340
46DR 800 GPH Replacement Motor 5 800 490
47DR 1000 GPH Replacement Motor 6 1100 790
Press Cartridge
Release Button
To remove motor cartridge:
Twist Cartridge
Counterclockwise
Pull Cartridge
Straight Up
a.
b.
c.
c
a
b
Models
Dimensions
in inches (mm)
B
A
A
B
2.76 (70)
2.76 (70)
2.76
(70)
2.76
(70)
C
C
E
E
E
C
D
D
D
Models
401 STC
403 STC
405 STC
Models
401 FC
403 FC
405 FC
Models
401 C
403 C
405 C
Model A B C D E
401C 4.0 (102) 5.87 (149) 3/4-14NPSM 1/2-14NPT 3/4-14NPSM
403C 4.0 (102) 5.87 (149) 3/4-14NPSM 1/2-14NPT 3/4-14NPSM
405C 4.0 (102) 5.87 (149) 1-11.5NPSM 1/2-14NPT 3/4-14NPSM
401STC 4.33 (110) 5.84 (148) 3/4-14NPSM 1/2-14NPT 3/4-14NPSM
403STC 4.33 (110) 5.84 (148) 3/4-14NPSM 1/2-14NPT 3/4-14NPSM
405STC 4.33 (110) 5.84 (148) 1-11.5NPSM 1/2-14NPT 3/4-14NPSM
401FC 5.87 (149) 3/4-14NPSM 1/2-14NPT 3/4-14NPT
403FC 5.87 (149) 3/4-14NPSM 1/2-14NPT 3/4-14NPT
405FC 5.87 (149) 1-11.5NPSM 1/2-14NPT 3/4-14NPT
