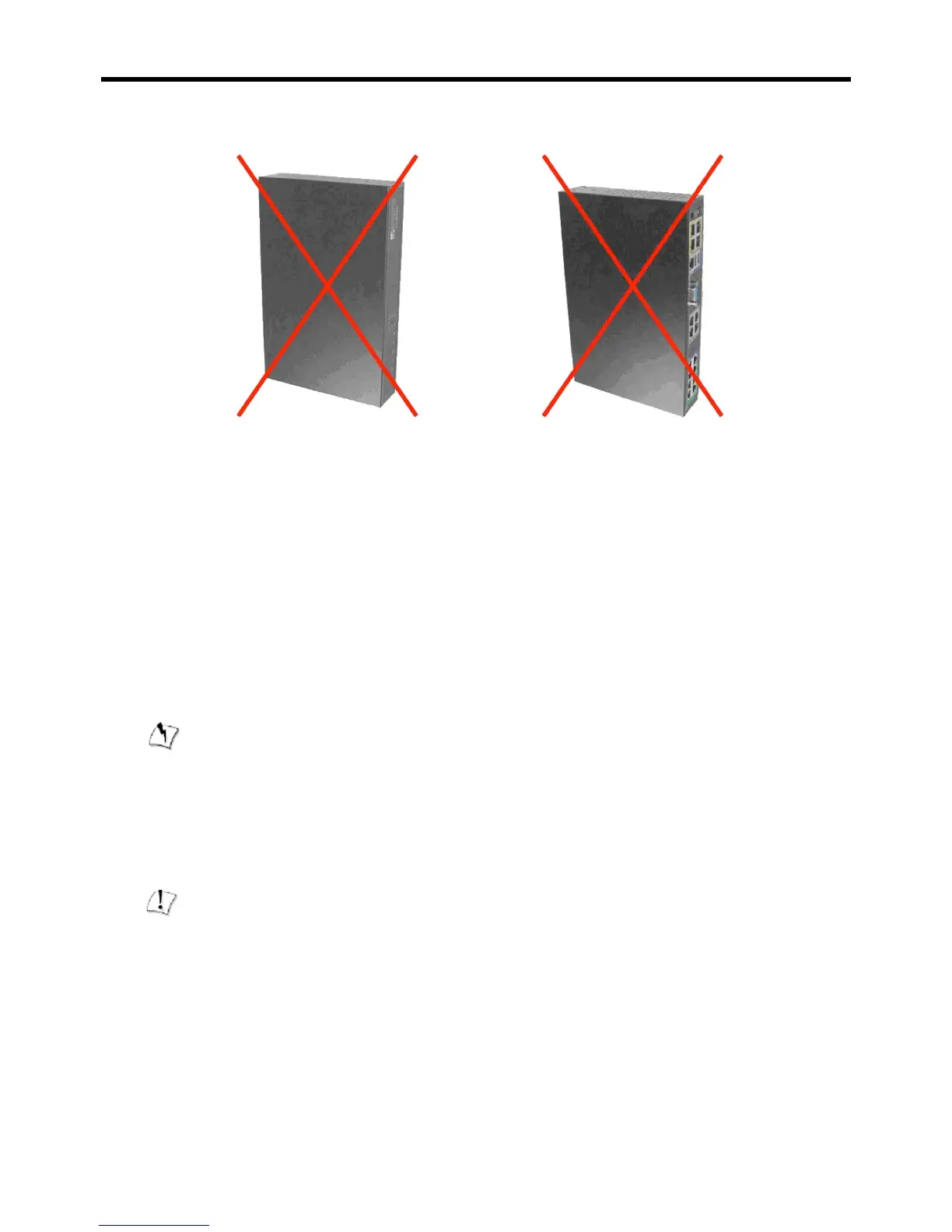

EdgeMarc 4550 Networking Gateway Installation Guide
8
Rack-Mount Installation
You can mount the 4550 in a 19” rack by using the rack-mount kit supplied with the product.
1. Attach the ear mounts to both sides of 4550 with the screws.
2. Attach the 4550 with the ear mounts to the shelf by screwing the ear mounts to the shelf
with screws.
Connecting the Power and Cables
The 4550 comes with an AC power cord and power adapter for connecting the unit to the AC
outlet.
Warning
Always connect the AC power cord to an AC outlet suitable for the power supply that came with
the unit in order to reduce the risk of damage to it.
• Connect one end of the AC power cord to the power adapter and the other one to the AC
outlet.
• Connect plug from the power adapter to the Power Connector on the 4550. Sometimes a
little force is necessary to get the plug properly positioned
Caution
Secure the power adapter using a fastener or tie wrap to nearby shelf so that it does not hang
from the power connector.
• If connecting to the WAN using the T1 then connect the T1 cable to the T1/E1 port and the
other end of the cable to the T1 line. Enable the T1 port from the Network Configuration
Menu. In this case Ethernet WAN port will not be available.
• If connecting to a WAN router, cable modem or DSL modem, then connect the Ethernet
cable to the Ethernet WAN port on the 4550 and the other end to the WAN device.
