- 17 -
ENGLISH

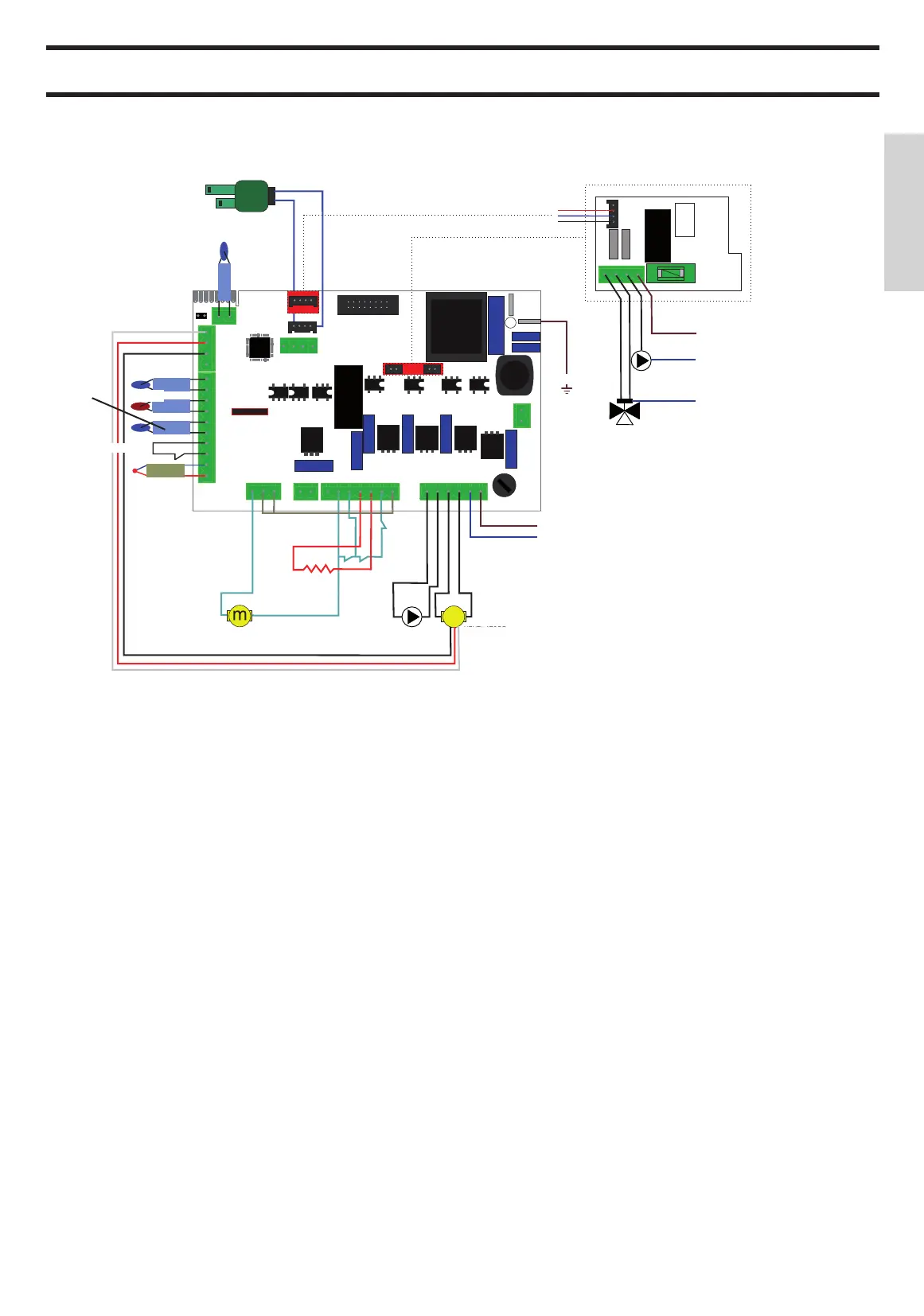

RETE 230Vac
TERRA
RETE 230Vac
COCLEA
CANDELETTA
VENTILATORE
FUMI
ALT
ALP
ALD
ALT=termostato sicurezza termocamera
ALD=depressimetro
ALP=termostato sicurezza vano pellet
sonda
fumi
sonda NTC
ambiente
sonda NTC
caldaia
termostato
ext.
encoder ventilatore fumi
encoder ventilatore fumi
-
+
m
m
m
DEBIMETRO
RETE 230Vac
TERRA
POMPA
BASSA EFFICENZA
3VIE
DISPLAY
SCA
ENC
GND
BLU
N.PEL N.H2O
N.AMB
TERM
-Tc1+
5+
ACC
COC
V2/PO
AUX2 AL3
AL2
AL1
AUX
AUX IN
FUMI
FUSE
1
N
N
N
F
F
PE
JTAG
Cn11
Cn9
Cn15
Cn7
Cn6
Cn19
Cn4
Cn8
Cn2
Cn5
SERIALE
Cn13
Cn17
Cn21
Cn2
P2
P4 F
P3
P2
P4 F
P3
SCHEDA I055
SCHEDA L023
LATO
SANIT.
LATO
RISC.
POMPA
ALT A EFFICENZA
N
sonda NTC
boiler
sonda NTC
puffer
BACKUP
BATTERY
*
REMOTE IGNITION
On the circuit board, there is an input)
supplementary thermostat clean contact *) that can be used for
remote ignitions via external thermostats.
These devices must be installed by authorized CAT via an
optional cable, code 640560.
A backup battery is found on the control board (3-Volt CR
2032 battery).
For more detailed information, please contact the DEALER
who has performed the rst 1st ignition.
placed at the smoke outlet to detect the temperature. Turns the
stove on and off and controls its operation based on dened
parameters.
AIR FLOW SENSOR:
placed in the air inlet channel. This intervenes if an anomaly
is detected in the combustion air ow and causes insufcient
circulation in the smoke ducts.
SAFETY THERMOSTAT:
trips when the temperature inside the stove is too high.
It stops pellet loading, causing the stove to go out
(see alarm A09 on pg. 21).
Ground
NETWORK 230 Vca
METERING SCREW
PLUG
SMOKE
VENTILATOR
HIGH EFFICIENCY
PUMP
LOW EFFICIENCY
PUMP
encoder smoke ventilator
encoder smoke ventilator
ass ow sensor
smoke
probe
probe NTC
boiler
probe NTC
boiler tank
probe NTC
room temp.
ext. Thermostat
HEAT
SIDE
SANITARY
SIDE
3
VOIES
ALT=thermostat safety heat chamber
ALD=depressometer
ALP=pellet chamber thermostat
