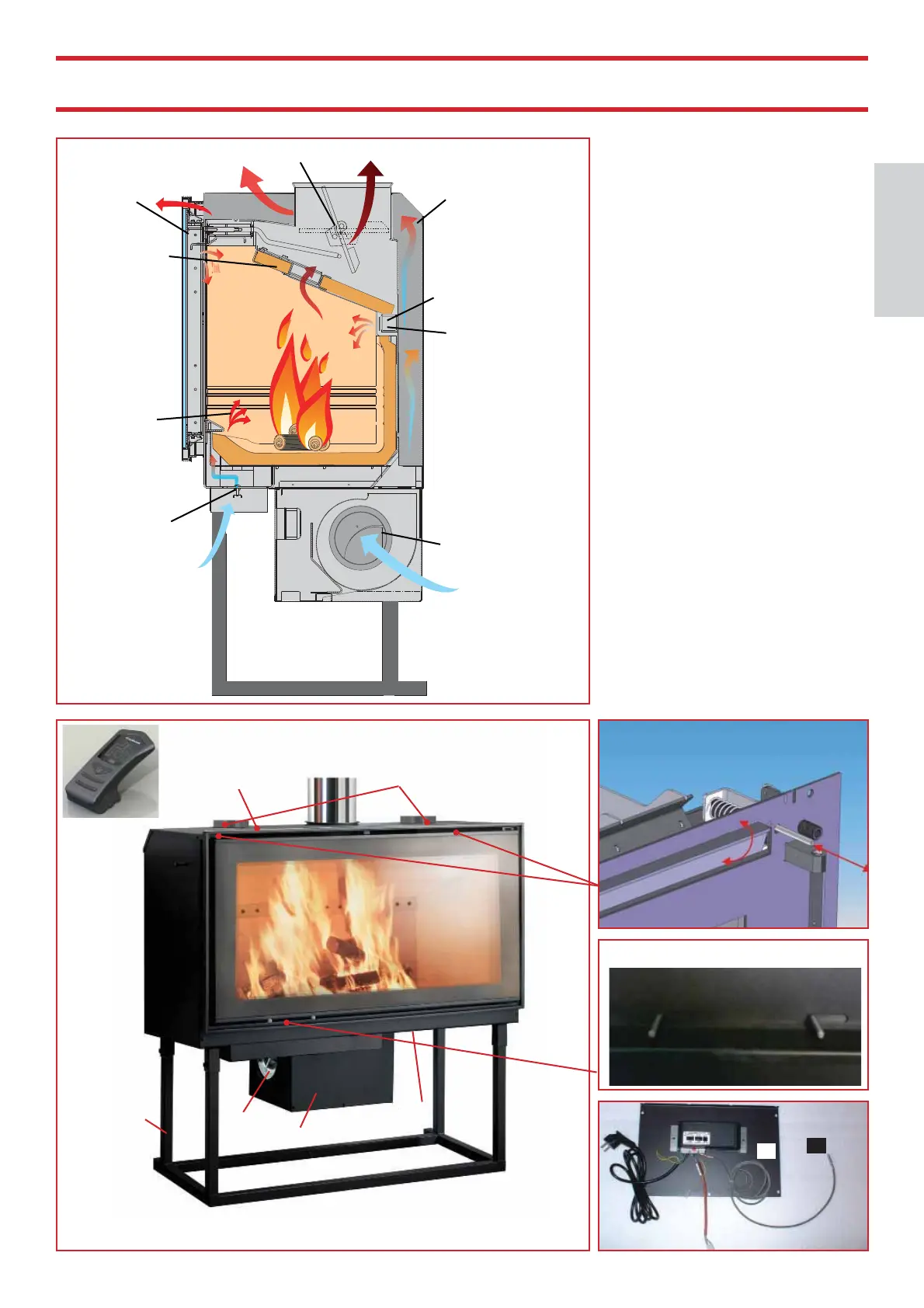

CHARACTERISTICS
LEGEND:
1) secondary air-deflector
(for glass cleanliness)
2) foldable anterior ceiling
component
3) post combustion air-duct
4) thermostatic valve sensor
5) electronic regulator sensor
6) primary combustion air mobile deflector
7) thermostatic valve
8) heating-air frontal outlet
9) channelled air outlets
10) air-casing with thermostatic valve
11) external air inlet connector
12) silk-screened ceramic glass
13) external mantle
14) fan-casing
15) height adjustable support stand
16) thermostatic valve setting lever:
M=manual A=automatic
17) combustion air adjustment lever
18) electronic regulator sensor
19) right/left slots for the management of
hot-air distribution
20) heating-air fan
21) heating air fan
22) throttle valve
23) remote control (
only for the ventilated
version
)
1
2
5
3
4
21
7
6
fig.1
22
fig.2
9
8
12
15 14
10
11
20
18
19
fig.3 C
16
17
MA
-+
fig.3 B
fig.3 A
23
- 17 -
ENGLISH
