CHARACTERISTICS
The SCREEN fireplace is manufactured from extra-thick carbon steel
sheeting, welded together to form an airtight fireplace.
The SCREEN fireplace is available in
- 2 different sizes (side illustrations)
•SCREEN 80
•SCREEN 100
- 2 different air-circulation configurations:
•N natural convection
•V forced ventilation
The fireplace is lined internally with ECOKERAM® to keep flame tem-
peratures high, for the purpose of improving combustion.
ECOKERAM® is a fireproof material, prepared by Edilkamin, which,
besides acting as a heat insulator for the fireplace, possesses the
special characteristic of accumulating heat during combustion and
gradually releasing it, even while the fire is burning down.
Safety information
The SCREEN fireplace is designed to heat the environment in which it
has been installed by means of irradiation and hot-air circulation.
The only risks which could derive from the use of the fireplace are
linked to inobservance of the installation instructions, to contact with
fire and with hot components (glass, tubes, hot-air outlets), or to the
insertion of foreign substances
substances foreign to the fireplace.
Note:
• Only use wood as fuel.
• Flammable products must never be used for cleaning the smoke
tubing.
• The glass may cleaned while COLD with an appropriate product (i.e.
GlassKamin) and a soft cloth. Do not clean the glass while it is hot.
• The discharge tubes and the door can reach high temperatures while
the fireplace is in function.
• Do not place objects which are not heat-resistant in the immediate
vicinity of the fireplace
• NEVER use flammable liquids to start the fireplace
or to reignite the embers.
• Do not obstruct the vents of the environment in which the fireplace is
installed nor the air-inlets of the fireplace itself.
• Do not wet the fireplace.
• Do not install reductions upon the smoke discharge tubes.
• The fireplace must be installed in environments with adequate fire
safety precautions and equipped with all of the facilities that the device
requires for safe and proper function.

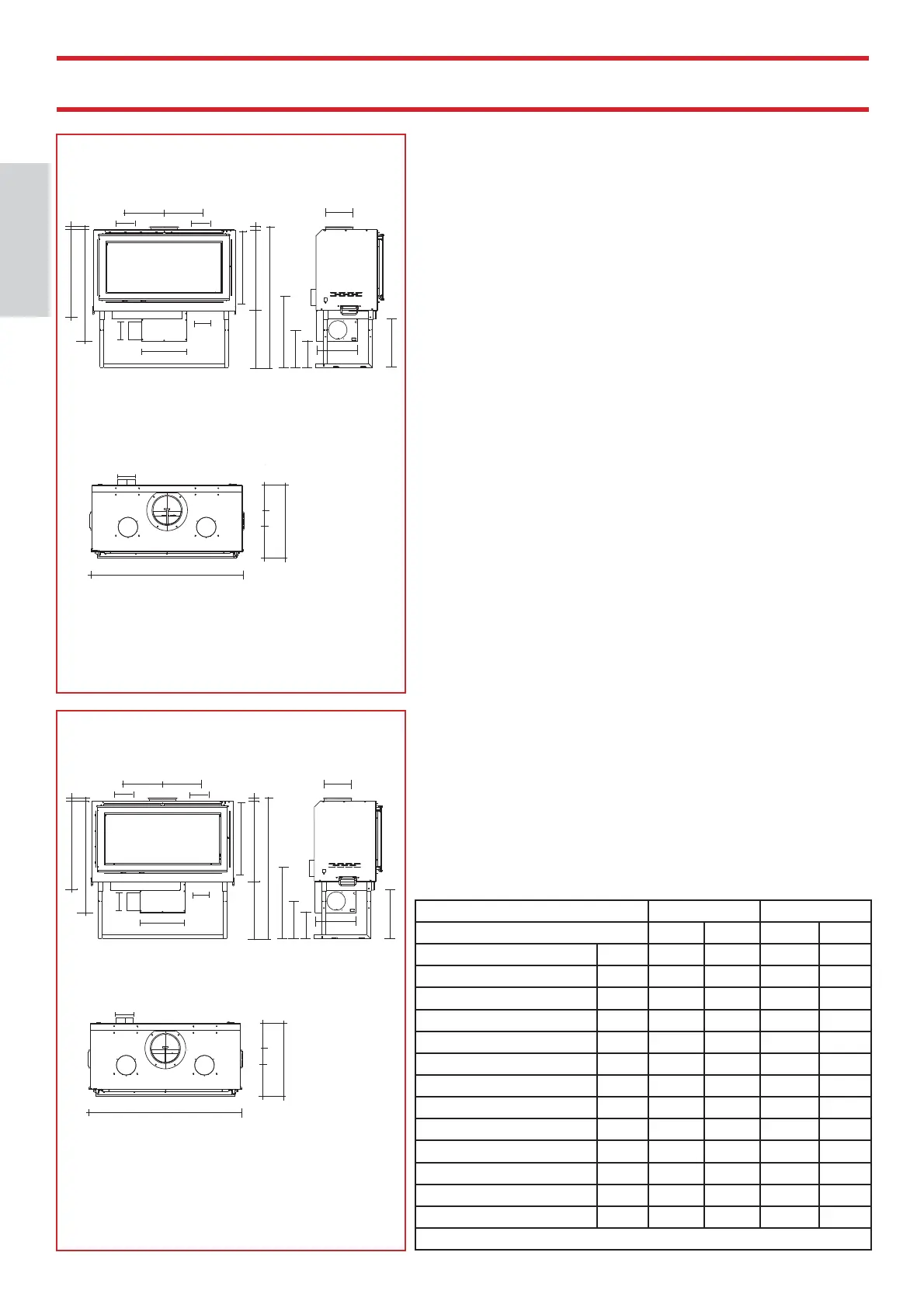

SCREEN 80 SCREEN 100
NVNV
power kW 12 12 14,5 14,5
consumption wood kg/h 3,3 3,3 3,7 3,7
efficiency % 79 79 84,5 84,5
Mass of smoke g/s 12,1 12,1 12,2 12,2
CO emission at 13% O² % 0,013 0,013 0,096 0,096
Flue gas temperature °C 246 246 237 237
Minimum draught Pa 12 / 6 12 / 6 12 / 6 12 / 6
Electrical connections V - 220 - 220
Ø smoke outlet (female) cm 20 20 20 20
Ø air inlet cm 12,5 12,5 12,5 12,5
fan capacity m
3
/h - 800 - 800
weight including the packaging kg 187 188 227 227
heatable volume m
3
315 315 380 380
N: natural convection V: forced ventilation
SCREEN 100
50
62
29 min 44max
108 max - 93 min
29
54
20
35
Ø14
Ø14
32
28
28
2
Ø14
Ø12.5
37
Ø20
70
86
2
70
86
2
110
52
18
12
22
Ø 12.5
50
62
29 min 44max
108 max - 93 min
29
54
20
35
Ø14
Ø14
32
28
28
2
Ø14
Ø12.5
37
Ø20
70
86
2
70
86
2
SCREEN 80
90
52
18
9
25
Ø 12.5
- Outer opening frame = cm 57x86 h
- Outer opening frame = cm 57x106h
