INSTALLATION INSTRUCTIONS

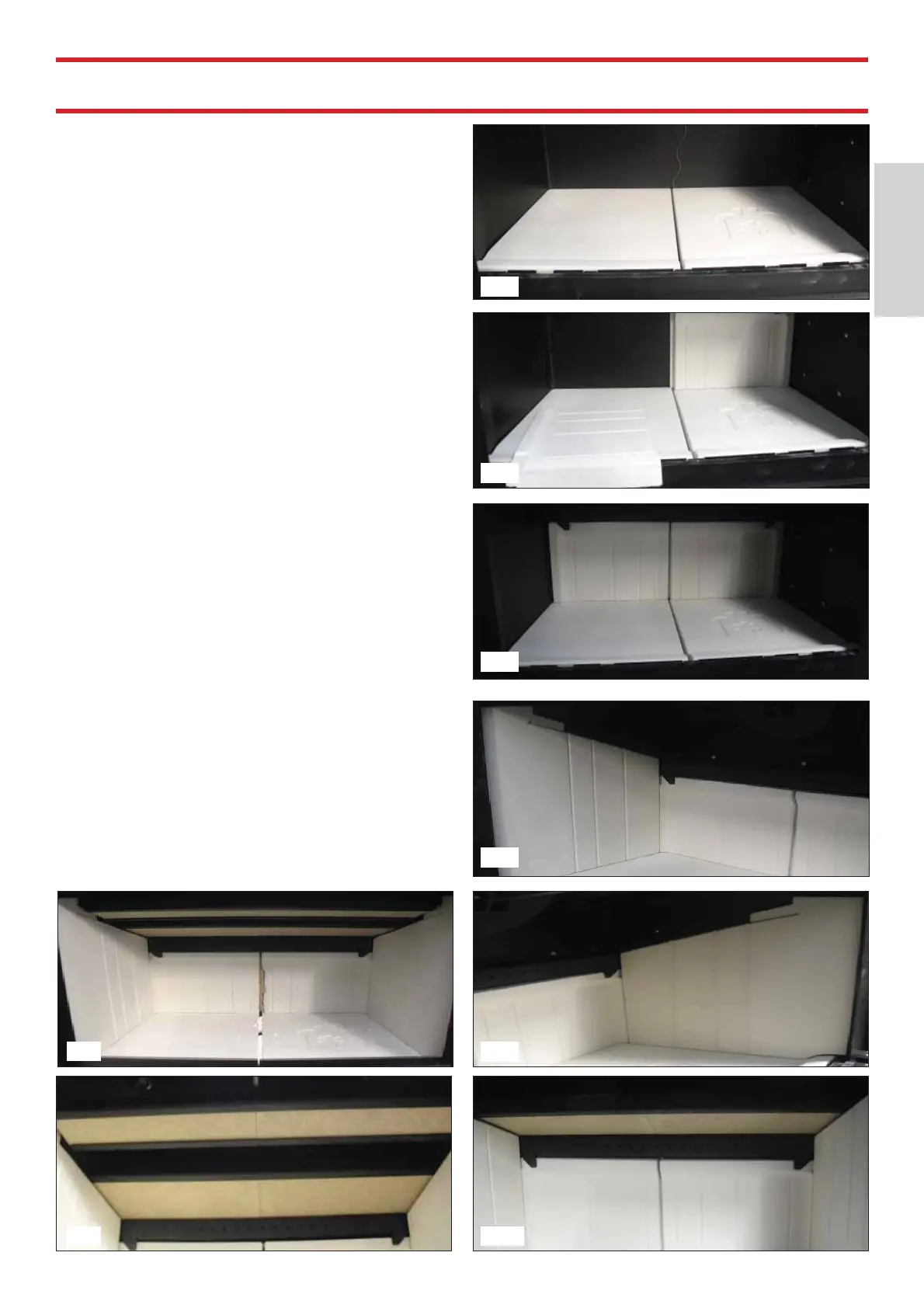

Instructions for dismantling the hearth refractory
materials
The SCREEN hearth is entirely covered with ECOKERAM cast refractory
material and is delivered fully assembled (fig. 1).
If the refractory material requires replacement, proceed as follows:
1) Remove the front and rear ceiling (fig. 2-3)
2) Remove the two LH/RH sides (fig. 4-5)
3) Remove the LH/RH bottom (fig. 6-7)
4) Remove the LH/RH hearth base (fig. 8)
fig.1
fig.2 fig. 3
fig. 4
fig. 5
fig. 6
fig. 7
fig. 8
