33
The TINY pellet stove is equipped with SISTEMA LEONARDO
®
.
LEONARDO
®
is a combustion safety and control system which allows optimal performance in all
conditions.
This is a safety system that allows optimum operation in all conditions.
LEONARDO
®
ensures excellent operation thanks to two sensors measuring the pressure level in the combustion
chamber and smoke temperature. The detection of and subsequent optimisation of these two parameters is continuous
in order to correct operation anomalies in real time.
The LEONARDO
®
system offers constant combustion, automatically regulating the draft based on the characteristics
of the chimney flue (bends, length, shape, diameter, etc.) and environmental conditions (wind, humidity, atmospheric
pressure, installations at high altitude, etc.). The standards for installation must be respected.
LEONARDO
®
system is also able to recognise the type of pellets and automatically adjust the flow moment by
moment to ensure the required level of combustion.
FEATURES

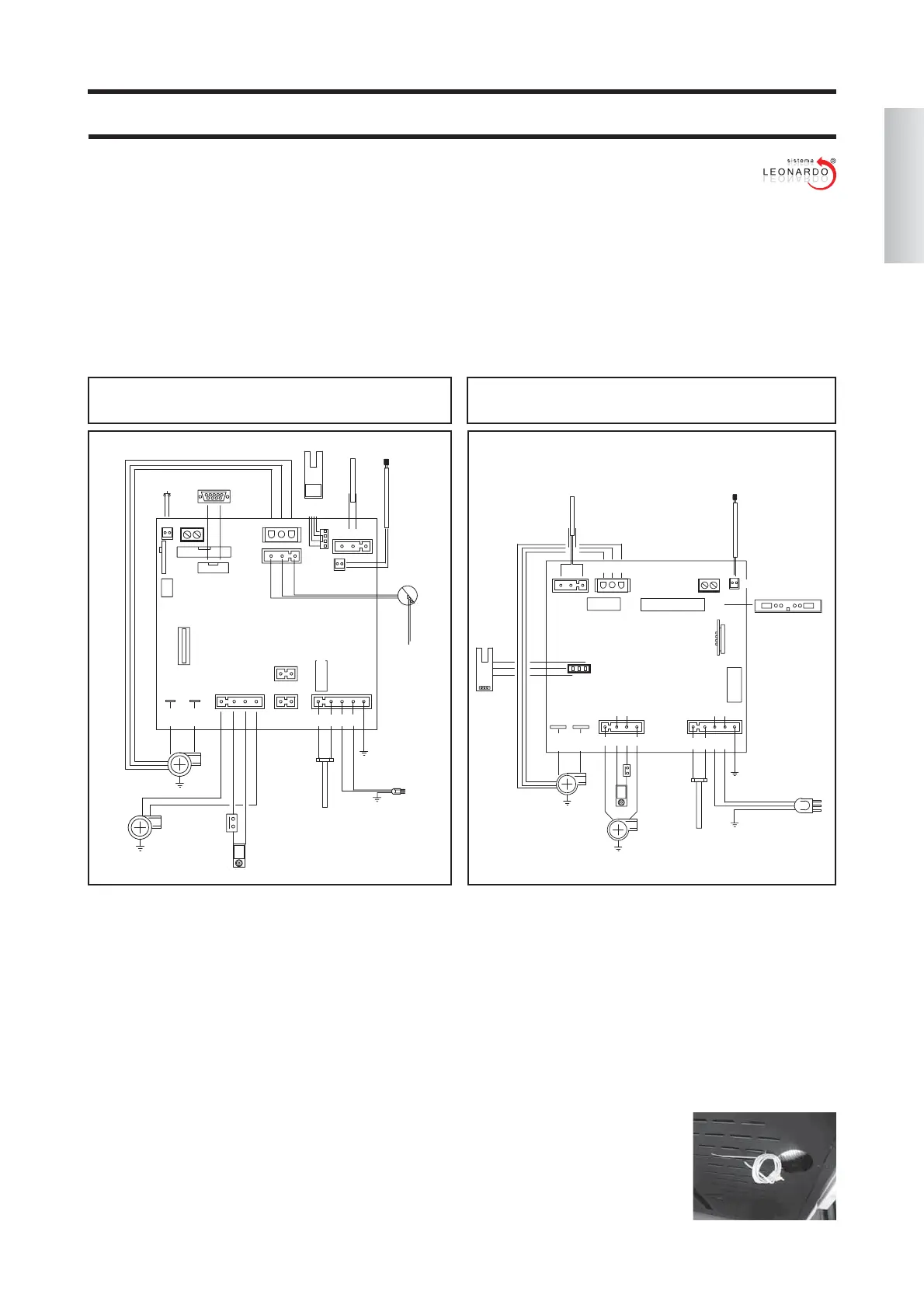

ELECTRONIC CIRCUIT BOARD KELLY
wiring diagram
ELECTRONIC CIRCUIT BOARD TINY
wiring diagram
ENGLISH
+---
DAB
C
H
L
G
F
F
M
N
R
P
+---
Le ge nda:
TM
G
L
H
M
N
FLOW
SENSOR
THERMOCOUPLE
RS232/AUX
AUX
SMOKE RPM
RS232/485
SERVICE
IN T° J
SENSOR AIR
AMBIENT (optional)
F
SOS
D
A
B
C
Smoke expulsion
motor
INGNITION ELEMENT
FUSE 2AT
230 Vac POWER SUPPLY
50-60 Hz +/-10%
F
TM 150 °C
BACKUP
BATTERY
LITHIUM
CR2032
P
R
M SCREW
VENTILATION
Reading
points
Vacuum gauge
P2
P1
SMOKE THERMOCOUPLE
SMOKE RPM
VENTILAZIONE
TM
230 Vac power supply
50 Hz +/-10%
FUSE 2AT
RS232
SENSOR AIR AMBIENT
I/O CONSOLLE
IN T° J
CONSOLLE
SENSOR AMBIENT
INGNITION ELEMENT
FLOW
SENSOR
M SCREW
BACKUP
BATTERY
LITHIUM
CR2032
Smoke expulsion
motor
SERIAL PORT
The Dealer can install an optional on the AUX outlet for controlling the process of switching on and off (e.g. telephone
remote, local thermostat), located at the rear oh the stove.
Can be connected via special optional trestle (TINY code 621240 - KELLY code 620550).
The serial port is located inside the stove on the lefthand side.
BACKUP BATTERY
A backup battery is found on the control board (3-Volt CR 2032 battery).
Its failure (not considered a product defect, but normal wear and tear) is indicated with the words "Battery check" for
the TINY model and "Batt. 1 - Batt. 2" for the KELLY model.
For more detailed information, please contact the DEALER who has performed the first 1st ignition.
ROOM TEMPERATURE SENSOR
An outlet for the 1 metre-long room temperature cable is provided on the back of the stove.
The sensor, which will be attached to the wall using the bracket provided, is wired onto the end
of the cable.
