11
ENGLISH
INSTALLATION

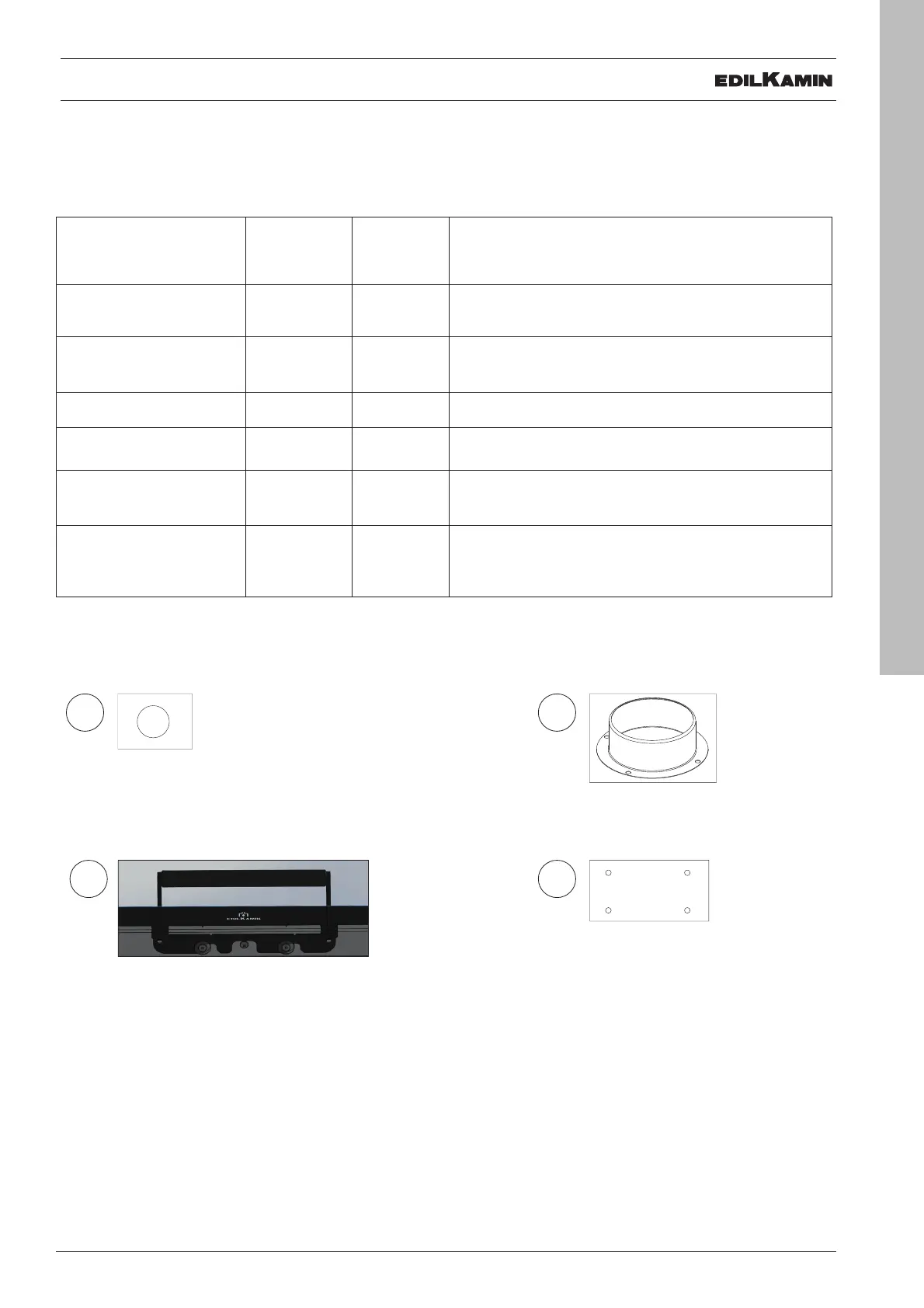

Description Number in
the figure
below
Quantity Use
Fireplace
1*
Side and rear refractory
elements for Windo 70 /
Windo 90-100-120
5 /
6
Anti-corrosion discs (2) 2
*R2 unions
Ø 140 mm
(3)* 2 for ducting in the version without ventilation kit
Handle for hatch lifting (4) 1 can be used either as a fixed handle (by fastening it with
the screws) or as a detachable handle, using the relevant
bushes.
*Side cover of the
casing
(5)* 2 to be screwed on once the chimney has been positioned
and the lifting brackets have been removed. Tighten the
(4+4) screws and close the opening with the side cover
of the casing.
2 3
xxxxx
4 5
PACKAGING
The packaging includes a useful inspection hatch to check the status of the product.On receipt, check and imme-
diately notify the retailer of any anomalies.
The packaging comprises a single item containing the following:
