13
ENGLISH
INSTALLATION
INTERNAL REFRACTORY ELEMENTS
ADJUSTABLE SHUTTER
In low draught conditions, the smoke flow can be adjusted using
the adjustable shutter (34x13 cm) shown in the adjacent figure.
The product is delivered only with the fire beds installed.
the deflector (E) is not mounted.

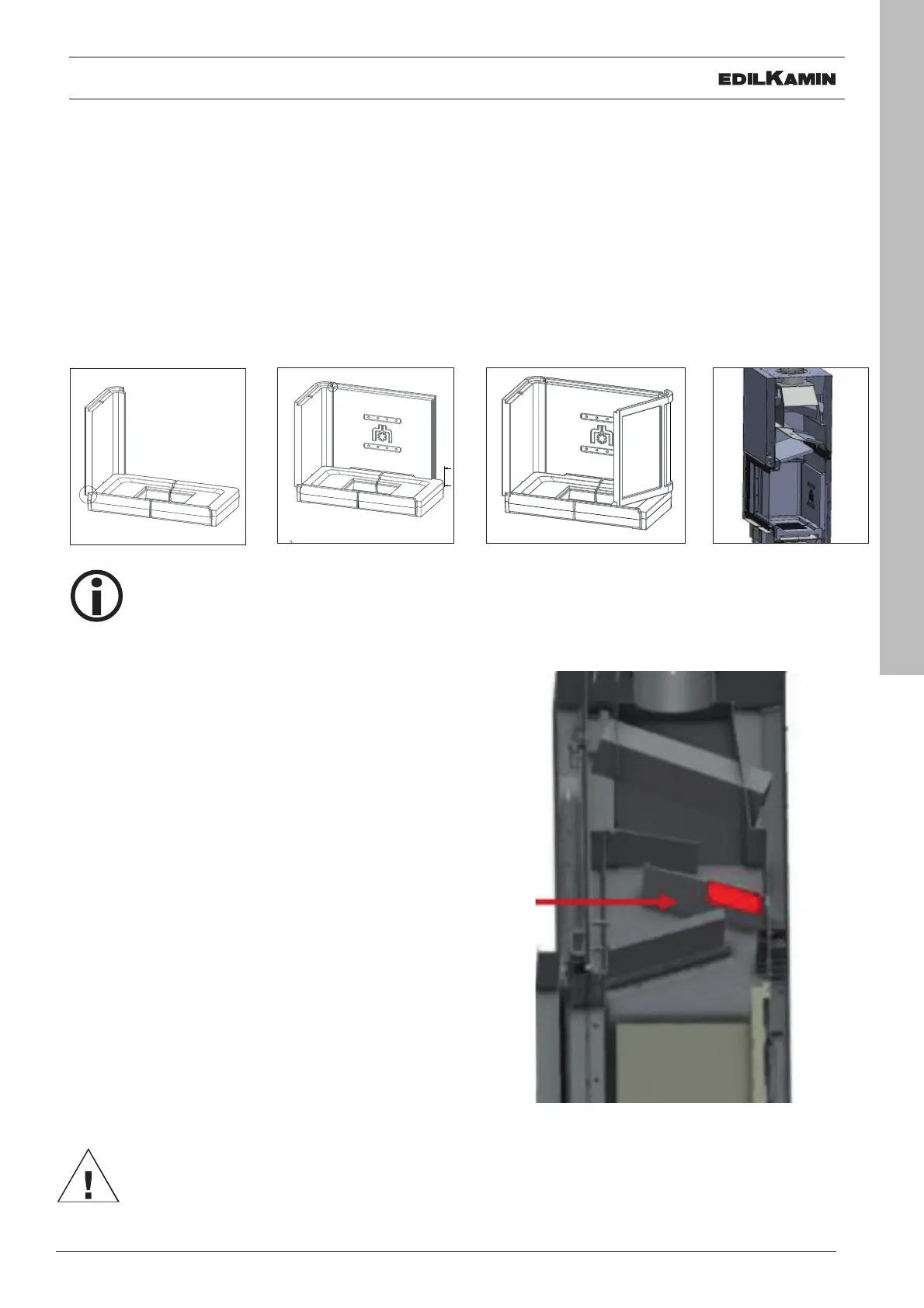

Assembly sequence for REFRACTORY ELEMENTS
1) Position the LH SIDE element
2) Position the BOTTOM element
3) Position the RH SIDE element
4) Position the deflector (E)
A
2) 3) 4)
E
A
A
B
Il diametro dell’uscita fumi non è il diametro del sistema camino che dovrà essere dimensionato.
Fit the sides first and then the bottom on windo 120
