Edimax BR-6428nS V5 User Manual

102
IV-2. Connecting to a Wi-Fi network
For help connecting to your device’s Edimax.Setup SSID for initial setup, or to
connect to your device’s new Wi-Fi network (SSID) after setup is complete,
follow the guide below:

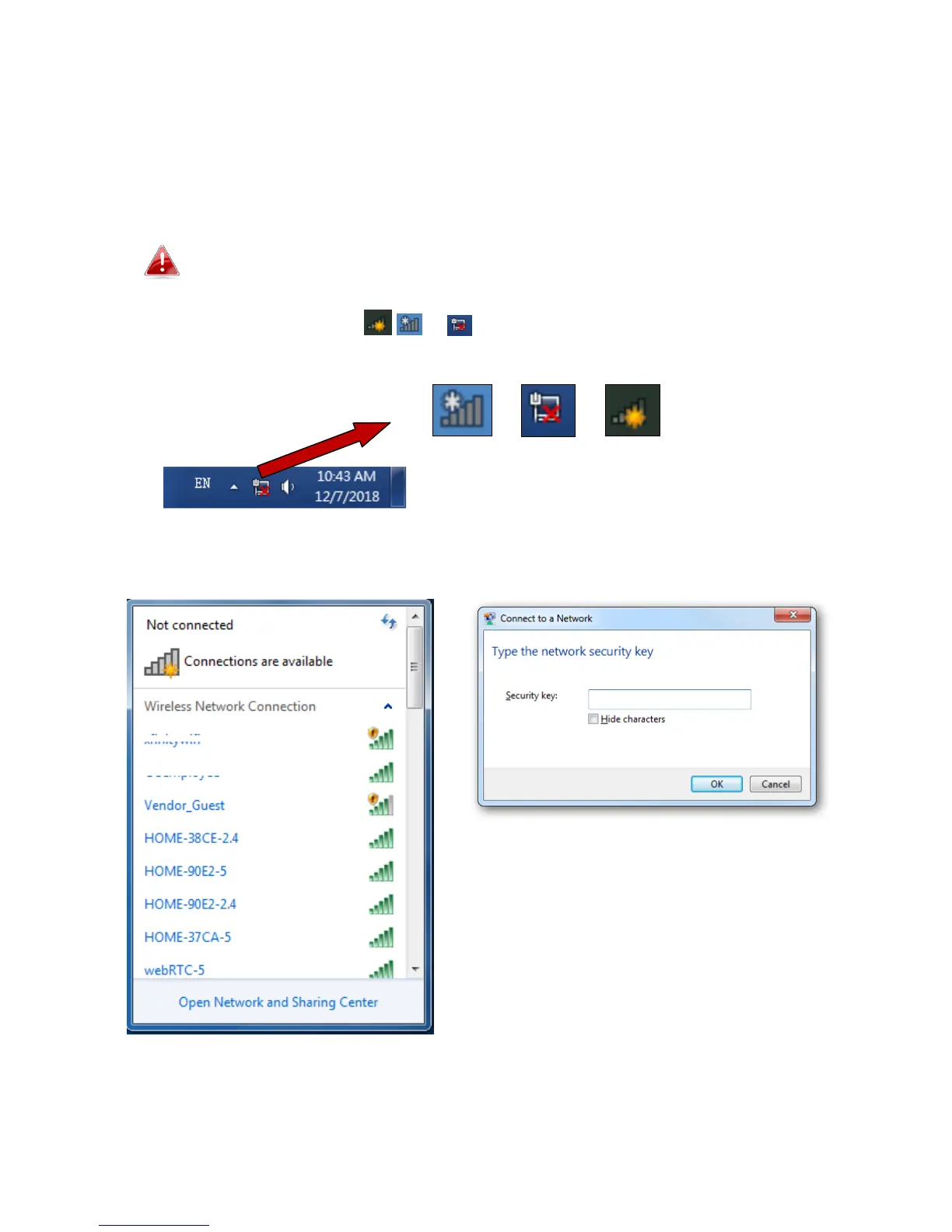

Below is an example of how to connect using Windows 7 – the
process may vary slightly for other versions of Windows.
1. Click the network icon ( , or ) in the system tray and a window with
available network connections will open.
2. Search for the SSID of your BR-6428nS V5 and then click “Connect”. If you
set a password for your network, you will then be prompted to enter it.
3. After correctly entering your password, you will be successfully connected
to the BR-6428nS V5’s wireless network.

Edimax BR-6428nS V5 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	11g (11Mbps): -79 ±2dBm, 11g (54Mbps): ‐68±2dBm, 11n (20MHz, MCS7): ‐67±2dBm, 11n (40MHz, MCS7): ‐64±2dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Transmit power	16 dBmW
Antennas quantity	2
Memory card slot(s)	No
Ethernet LAN (RJ-45) ports	5
Output current	0.4 A
Output voltage	9 V
Power source type	DC
Product type	Tabletop router
Product color	Black
Flash memory	2 MB
Certification	CE, RoHS
Internal memory	8 MB
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Firewall security	SPI Firewall, IP and MAC Address Binding, Wireless MAC Filtering
Security algorithms	WEP, WPA, WPA2, WPA2-PSK, WPS
Supported network protocols	Dynamic IP, Static IP, PPPoE, IPv4
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package type	Box
Number of products included	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	107 mm
Width	153.8 mm
Height	25 mm
Weight	150 g
