Edimax EW-7209APg User Manual

1b) Windows XP
1: Click the Start button and select Settings, then click Network Connections. The Network
Connections window will appear.
2: Double-click Local Area Connection icon. The Local Area Connection window will appear.
3: Check your list of Network Components. You should see Internet Protocol [TCP/IP] on your list.
Select it and click the Properties button.

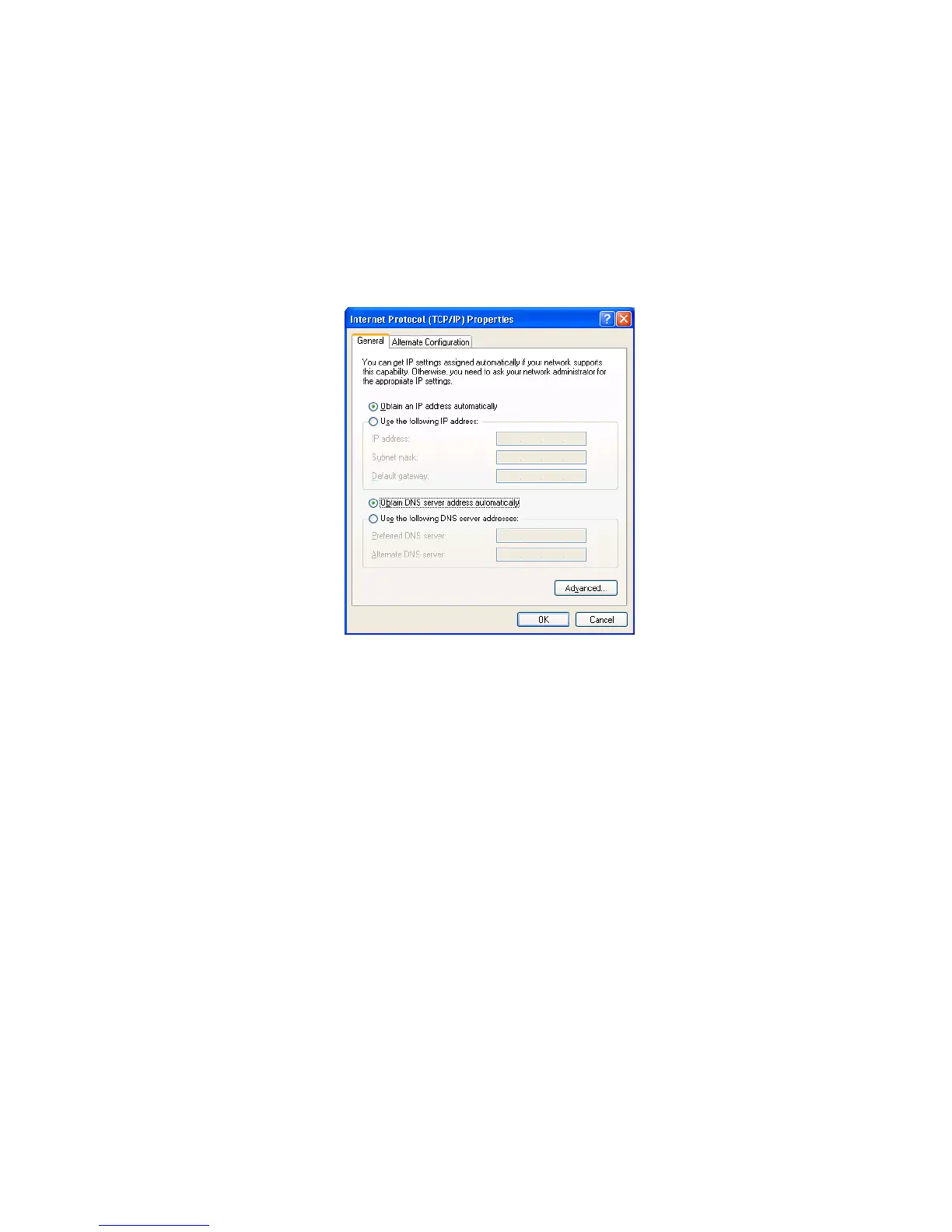

4: In the Internet Protocol (TCP/IP) Properties window, select Obtain an IP address automatically and
Obtain DNS server address automatically as shown on the following screen.
5: Click OK to confirm the setting. Your PC will now obtain an IP address automatically
from your Broadband Router’s DHCP server.
Note: Please make sure that the Broadband router’s DHCP server is the only DHCP server
available on your LAN.
Once you’ve configured your PC to obtain an IP address automatically, please proceed to
Step 3.

Edimax EW-7209APg Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Maximum data transfer rate	100 Mbit/s
Ethernet LAN (RJ-45) ports	5
Security algorithms	EAP-MD5, SSID, WPA, WPA2
Compliance industry standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Flash memory	2 MB
Internal memory	16 MB
Processor model	Realtek RTL8186
Antenna connector type	RP-SMA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC Class B, CE Mark, C-Tick
Power requirements	12V DC, 1A

Weight and Dimensions

Dimensions (WxDxH)	187 x 100 x 30 mm
