Edimax EW-7228APn User Manual

5
I. Product Information
Thank you for purchasing the Edimax EW-7228APn wireless access point. This
product provides wireless access to an existing wired Ethernet network, at
speeds up to 150Mbps for 802.11n compatible wireless devices. Its quick and
easy installation process ensures that anybody can set up a network
environment and share an Internet connection in a matter of minutes.
I-1. Package Contents
Before you start using this router, please check if there is anything missing
from the package, and contact your dealer to claim the missing item(s):
 Wireless Access Point
 CD containing setup wizard, multi language quick installation guide
and user manual
 Power Adapter
 3dBi Antenna
 Accessory Kit
 Quick installation guide
I-2. Description

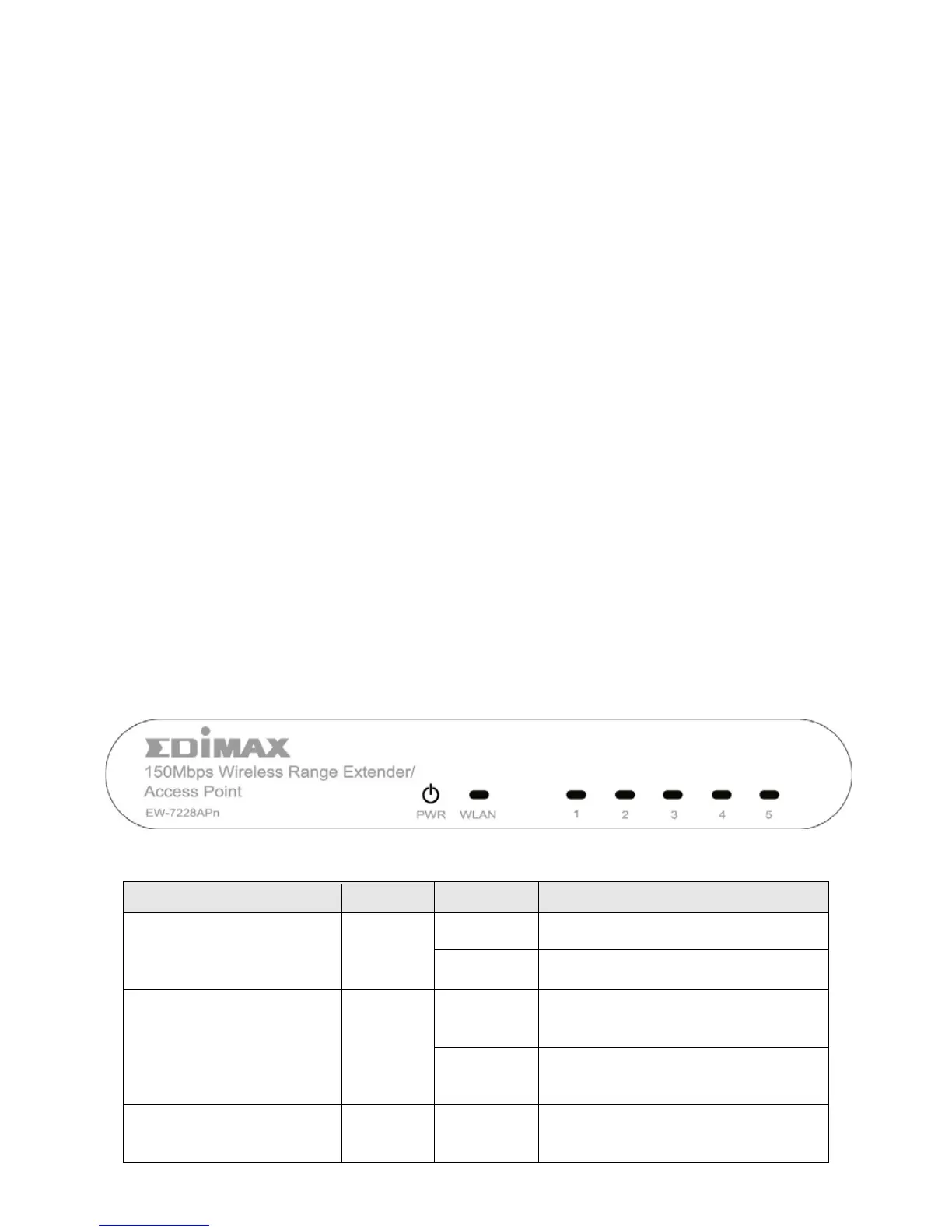

Front panel:
Item
Color
Status
Description
PWR
(Power)
Green
On
Device is on
Off
Device is off
WLAN
(Wireless LAN)
Orange
Flashing
Data is being transmitted
wirelessly
Off
Data is not being
transmitted wirelessly
1 to 5
Green
On
Ethernet port is connected
to a device

Edimax EW-7228APn Specifications

General

Frequency band	2.4 GHz
Ethernet LAN data rates	100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Antenna type	External
Antenna connector type	RP-SMA
Antenna gain level (max)	3 dBi
Wireless technology	801.11b/g/n
Ethernet LAN (RJ-45) ports	5
Security algorithms	128-bit AES, 128-bit WEP, 256-bit AES, 64-bit WEP, SSID, WDS, WPA, WPA-PSK, WPA-TKIP, WPA2, WPA2-PSK
Internal	No

Weight and Dimensions

Dimensions (WxDxH)	26 x 136 x 90 mm
