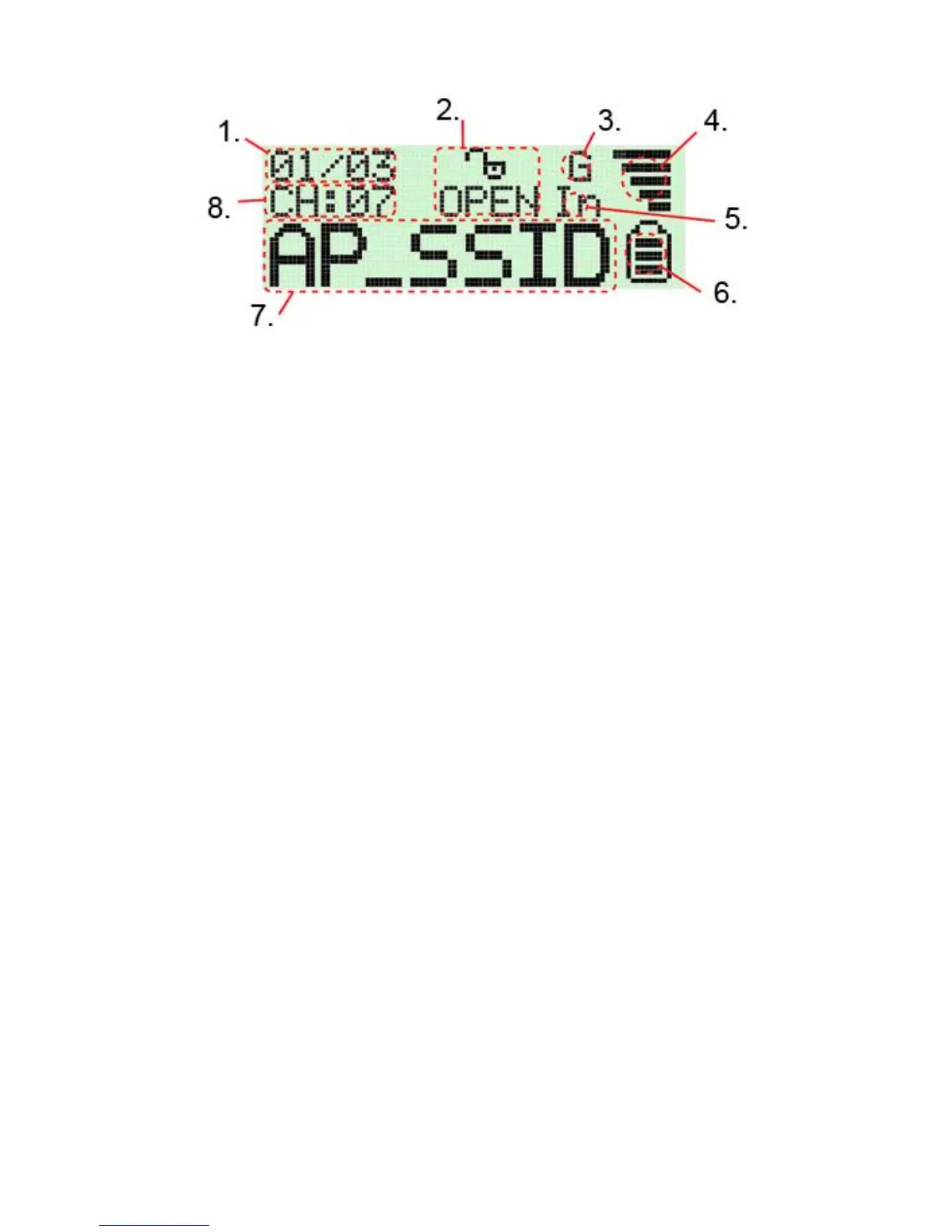

The Icons on the LCM are displayed as follows:
1. Operating Channel: Indicates the current operating
channel of the detected Wi-Fi signal.
2. Number of AP’s Detected: the left digit indicates which
detected Wi-Fi signal is currently displayed and the right
digit indicates the total amount of Wi-Fi signals detected.
3. Encryption indicator: “WEP” for WEP encryption, “WPA”
for WPA encryption, and “WPA2” for WPA2 encryption
and “OPEN” indicates it is a non-encrypted signal.
4. “G” indicates the signal is a 802.11g wireless signal. “B”
indicates the signal is a 802.11b wireless signal.
5. Signal strength indicator with 5 bars indicating the signal
strength.
6. “In” indicates the signal is an infrastructure mode signal,
“Ad” indicates the signal is an Ad-hoc mode signal.
7. Battery indicator with 3 bars indicating battery power.
When the indicator is empty, please recharge the
detector by inserting it into a USB port.
8. SSID Indicator: Displays the SSID of the detected Wi-Fi
signal, if the SSID is too long the SSID indicator will scroll
to display the complete SSID.
