Edimax EW-7416APn Quick Installation Guide

3
English Version.
G
G
e
e
t
t
t
t
i
i
n
n
g
g
S
S
t
t
a
a
r
r
t
t
e
e
d
d

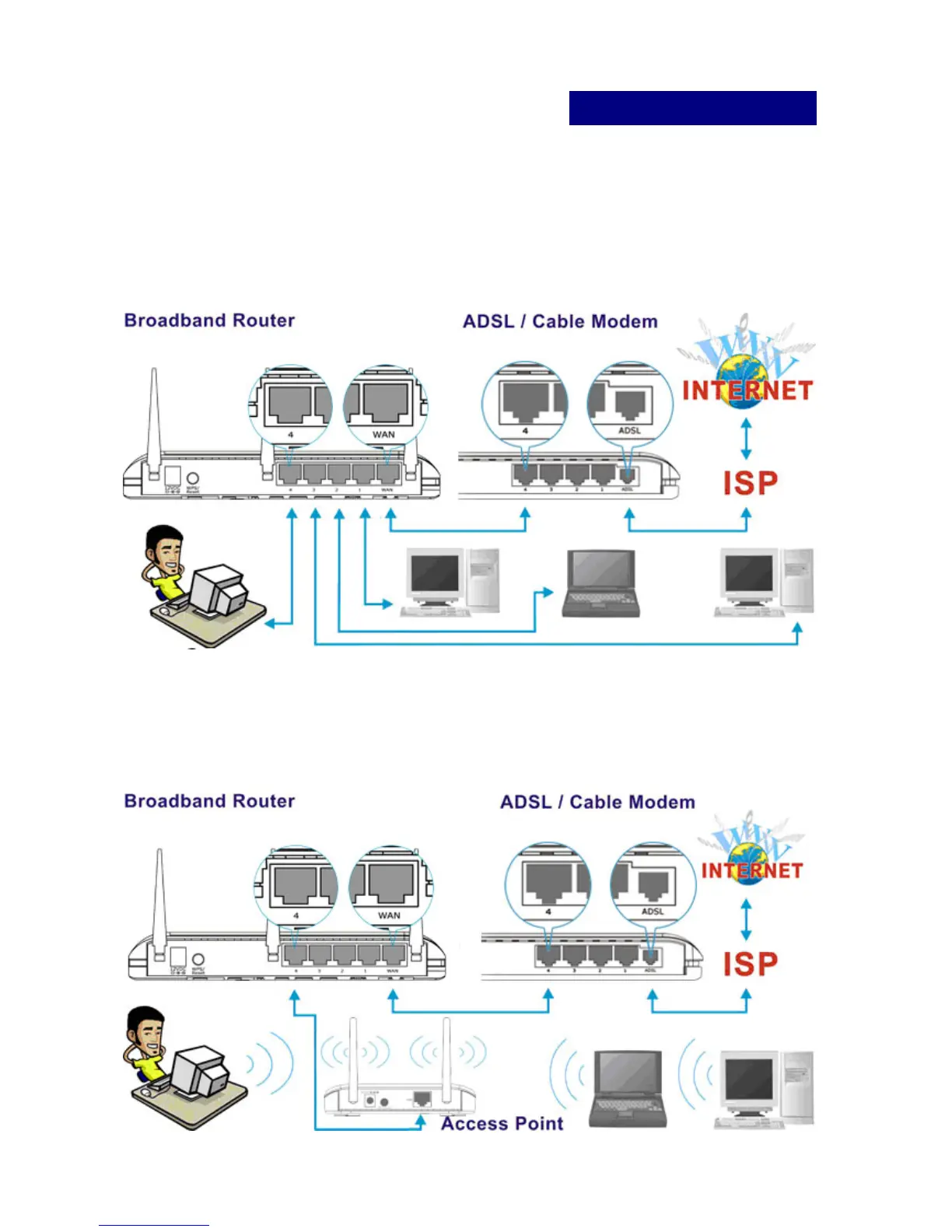

Before deploying the Access Point, please make sure all the PCs
in your wired network are able to obtain an IP address
automatically from the router like the figure below.
After the Access Point is deployed, you can surf the Internet /
Intranet wirelessly as show in the figure below.

Edimax EW-7416APn Specifications

General

Interface	10-100M UTP Port x 1
Networking features	IEEE 802.11b/g/n
Antenna type	External
Antenna features	Dipole antenna, Detachable antenna
Antennas quantity	2
Antenna gain level (max)	3 dBi
Flash memory	4 MB
Internal memory	16 MB
Built-in processor	Yes
Output voltage	12 V
Output power description	11n: 15±1dBm, 11g: 15±1dBm, 11b: 18±1dBm
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE
Security algorithms	802.1x RADIUS

Weight and Dimensions

Dimensions (WxDxH)	127 x 96 x 30 mm
