Edimax EW-7416APn Quick Installation Guide

4
P
P
h
h
y
y
s
s
i
i
c
c
a
a
l
l
D
D
e
e
s
s
c
c
r
r
i
i
p
p
t
t
i
i
o
o
n
n

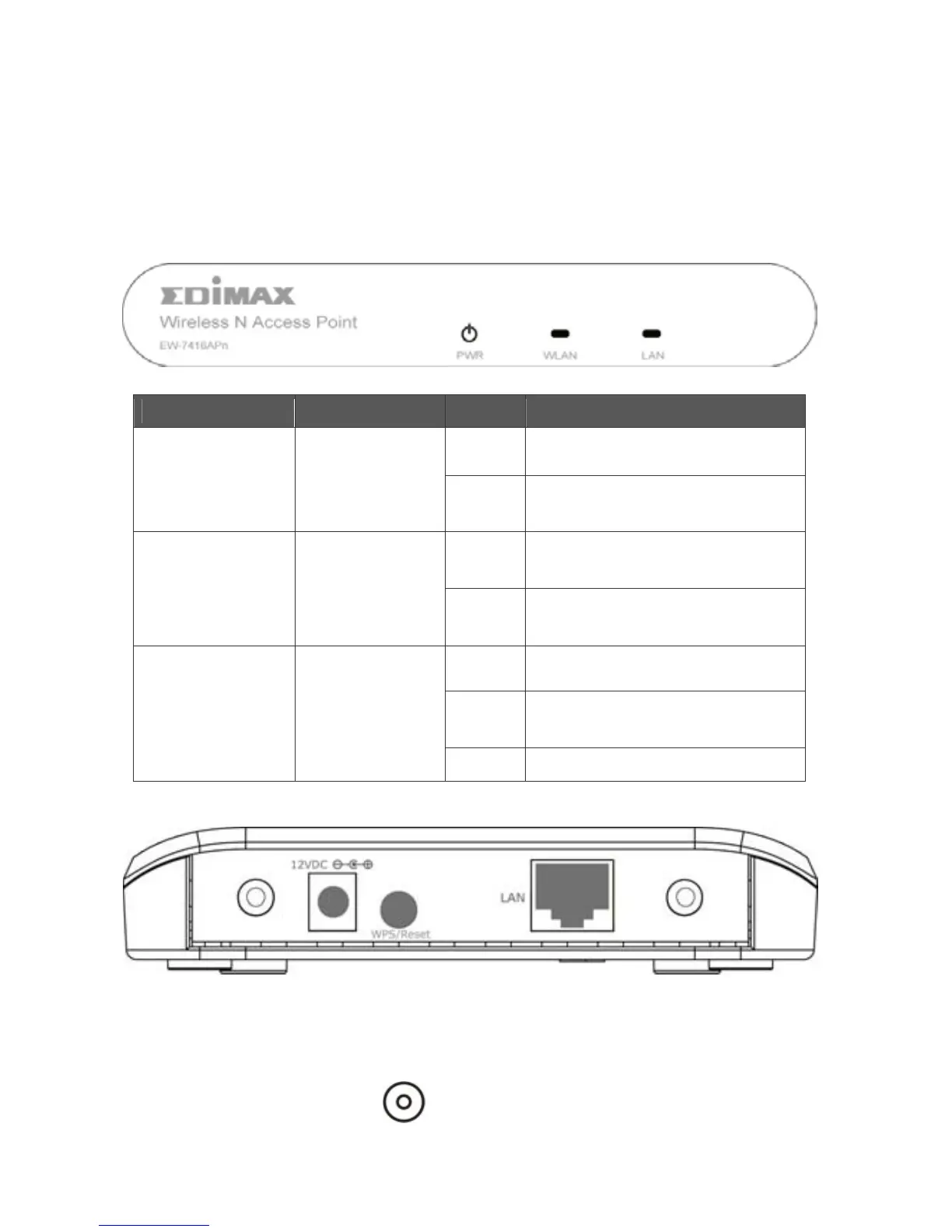

Front Panel
The LED lights located on the Access Point’s front panel provide
information of the Access Point’s current status.
EW-7416APn
LED Color Status Description
Lit Power is supplied.
PWR
(Power)
Green
Off No Power.
Flash
Antenna is transmitting or
receiving data.
WLAN
(Wireless LAN)
Green
Orange
(EW-7209APg)
Off
Antenna is not transmitting
or receiving data.
On A valid link is established.
Flash
It is transmitting or receiving
data.
LAN
(Link / Act)
Green
Off No link is established.
Back Panel
EW-7416APn
z Antenna Connector

Edimax EW-7416APn Specifications

General

Interface	10-100M UTP Port x 1
Networking features	IEEE 802.11b/g/n
Antenna type	External
Antenna features	Dipole antenna, Detachable antenna
Antennas quantity	2
Antenna gain level (max)	3 dBi
Flash memory	4 MB
Internal memory	16 MB
Built-in processor	Yes
Output voltage	12 V
Output power description	11n: 15±1dBm, 11g: 15±1dBm, 11b: 18±1dBm
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE
Security algorithms	802.1x RADIUS

Weight and Dimensions

Dimensions (WxDxH)	127 x 96 x 30 mm
