4K Ultra HD Camera With Autofocus User Manual
15
6) Input Type
Input type MIC.
7) Input Vol L
The volume of the left channel.
8) Input Vol R
The volume of the right channel.
9) ADTS Options
Optional items: On, Off.

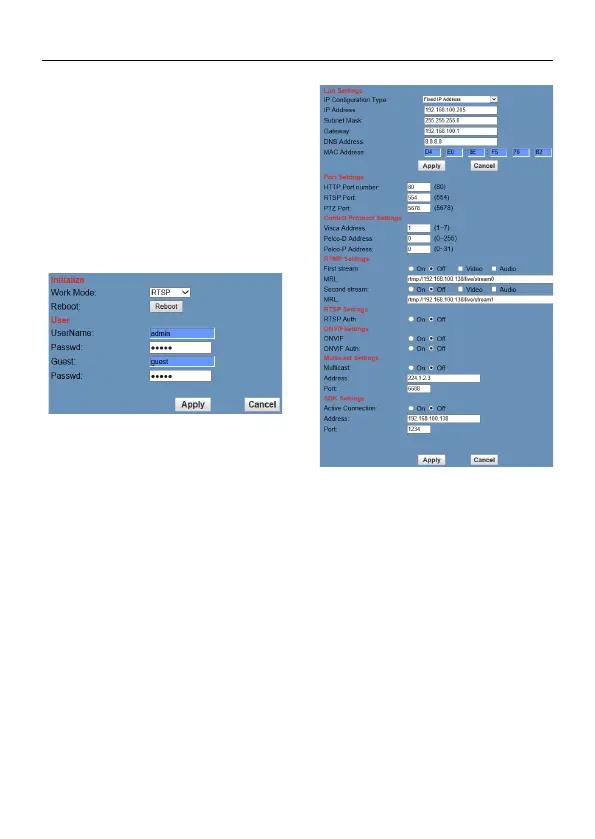

6.6.5 System Settings
1) Work Mode
The default work mode is RTSP. Optional
items: RTSP, SDK, Multicast.
2) Reboot
Click the “Reboot” button, system restart.
3) Username and password
The user can modify the password (letters
and Numbers only).
6.6.6 Network Settings
1) Lan Settings
Default the IP address is 192.168.100.88,
The MAC address can be modified.
2) Port Settings
A. HTTP Port
IP address identifies the network device, the
device can run multiple web applications,
each network program using network port to
transmit data, so data transmission to be
carried out between the port and port. Port
setting is to set up WEB SERVER program
using which port to transmit. When port
mapping, need to be consistent with the port
number (default port: 80).
