Edis V60CL-N - Interfaces and Buttons

Video Conference Camera User Manual
3
of View
Vertical Angle of
View
34.1° ~ 1.89°
Horizontal
Rotation Range
±170°
Vertical Rotation
Range
-30° ~ +90°
Pan Speed
Range
1.7° ~ 100°/s
Tilt Speed
Range
1.7° ~ 69.9°/s
H & V Flip
Support
Image Freeze
Support
Local Storage
Support
Number of
Preset
255
Preset Accuracy
0.1°
Network Features
Video
Compression
H.264/MJPEG
Video Stream
Main Stream, Sub Stream
Main Stream
Resolution
1920x1080, 1280x720,
1024x576
Sub Stream
Resolution
1024x576, 720x480,
320x240
Video Bit Rate
32Kbps ~ 20480Kbps
Bit Rate Type
Variable Rate, Fixed Rate
Frame Rate
50Hz: 1fps ~ 50fps,
60Hz: 1fps ~ 60fps
Audio
Compression
AAC, G711A
Audio Bit Rate
96Kbps, 128Kbps,
256Kbps
Protocols
NDI®|HX, NDI®|HX2,
TCP/IP, HTTP, RTSP,
RTMP, Onvif, DHCP,
Multicast, etc.
Input/Output Interface
Audio Interface
1 x LINE IN: 3.5mm Audio
Interface
CVBS Interface
1 x CVBS: 3.5mm RCA
jack, 1Vp-p, 75Ω
Communication
Interface
1 x RS-485: 2pin phoenix
port, Max Distance:
1200m, Protocol:
VISCA/Pelco-D/Pelco-P
1xRS232 IN: 8pin Min DIN,
Max Distance: 30m,
Protocol:
VISCA/Pelco-D/Pelco-P
1 x RS-232 OUT: 8pin Min
DIN, Max Distance: 30m,
Protocol: VISCA network
use only
Network
Interface
1xRJ45: 10/100M
Adaptive Ethernet Ports
HDMI Interface
1 x HDMI: Version 1.3
3G-SDI
Interface
1x3G-SDI: BNC type,
800mVp-p, 75Ω. Along to
SMPTE 424M standard
USB Interface
1xUSB2.0: Type A female
jack
Power Jack
JEITA type (DC IN 12V)
Physical Parameter
Input Voltage
DC 12V / PoE (802.3af)
Current
Consumption
1.0A(Max)
Operating
Temperature
-10°C ~ 40°C
Storage
Temperature
-40°C ~ 60°C
Power
Consumption
12W(Max)
MTBF
＞30000h
Size
145.2x150.9x161.8mm
Net Weight
1.52Kg

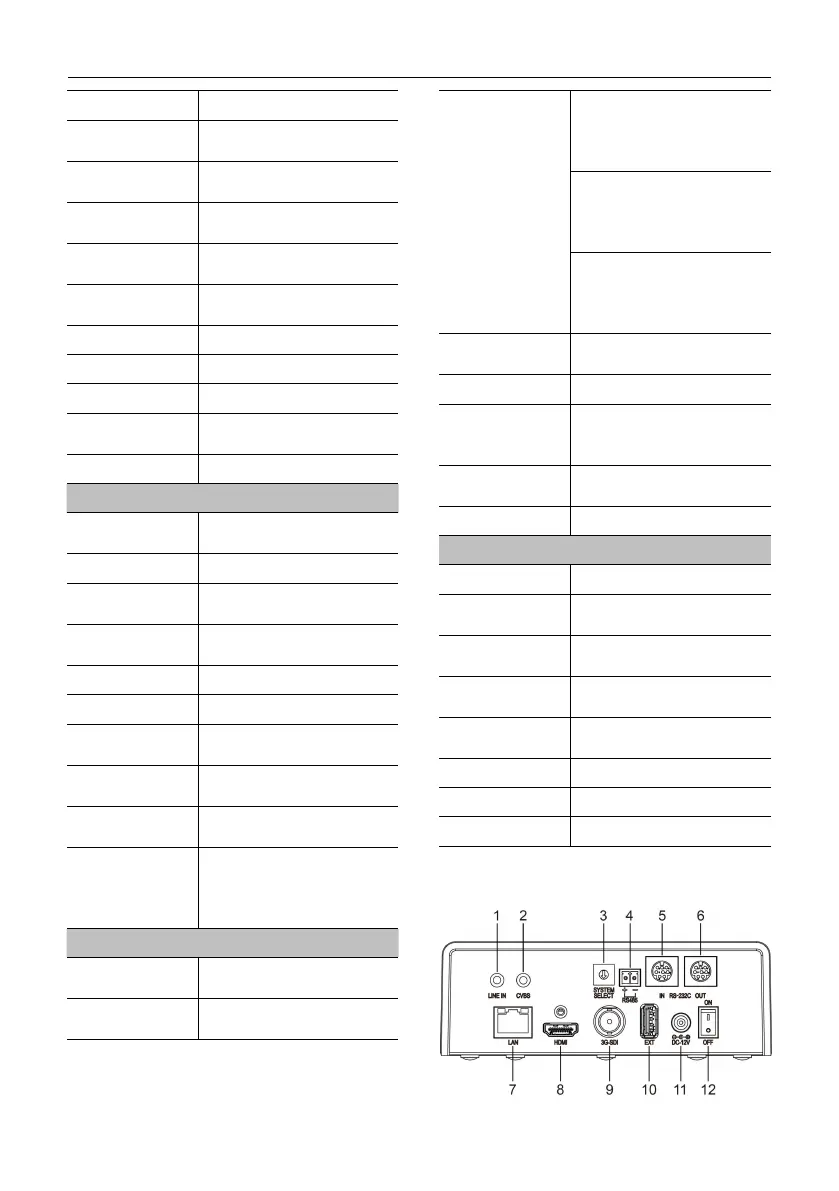

4.3 Interfaces and Buttons
