Edison Ping User Manual

Version of 20 August 2020 7

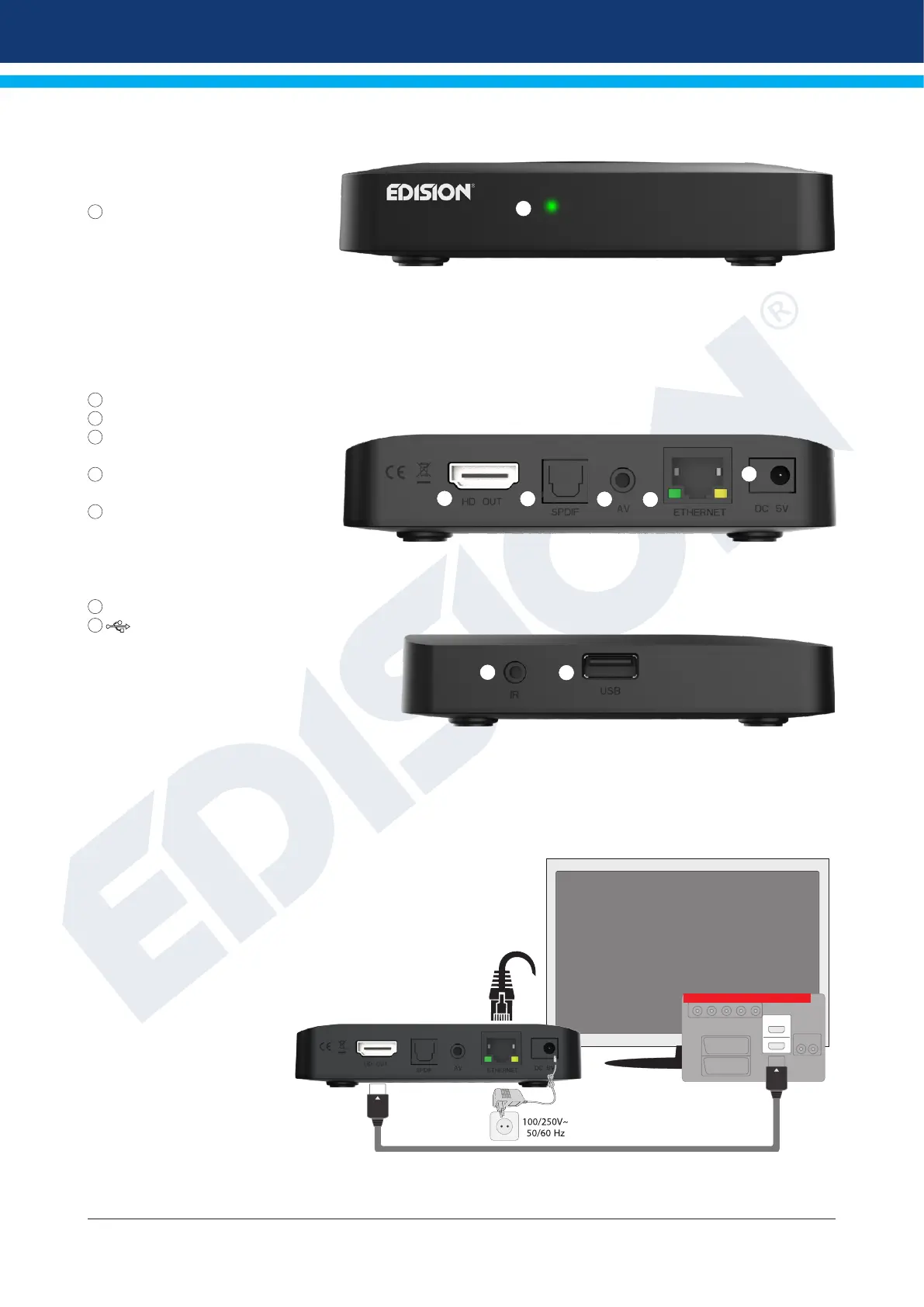

►Description
Front Panel
1
Infrared sensor for the reception
of remote
control commands
Back Panel
2
HD OUT: Connection to an HDTV quality TV
3
S/PDIF: Audio interface for amplier/audio console
4
AV OUT: For broadcasting video
and sound signals (optional)
5
ETHERNET: Ethernet port RJ45
10/100 Mbps
6
Connection for an adapter (DC 5V/2,0A)
Subpage
7
IR IN: Infrared connection port (optional)
8
/ USB: Connection for USB storage devices
Connecting and switching on
Note: For the proper function of the OTT receiver,
the suggested internet connection must be with Ethernet cable,
at 10Mbps and more.
• Connect the receiver using HDMI cable via
the HD OUT output port to your TV’s HDMI input port
• Connect the receiver via the input
ETHERNET with network cable.
• Insert the batteries into the remote control.
Notes on the remote control
can be found on the back
of these instructions.
• Connect the receiver
to the power supply.
• The receiver starts with the BOOT
process and is operational
within a short time
1
6
2
3
4
5
7
8
1
HDMI IN
2
HDMI
HDMI
Power socket
HD OUT:
Output receiver HDMI cable
ETHERNET:
Cable connection
with INTERNE
TV set connection panel
Use an HDMI input!

Edison Ping Specifications

General

Brand	Edison
Model	Ping
Category	Receiver
Language	English
