Please read thoroughly before operation and keep for future reference
4

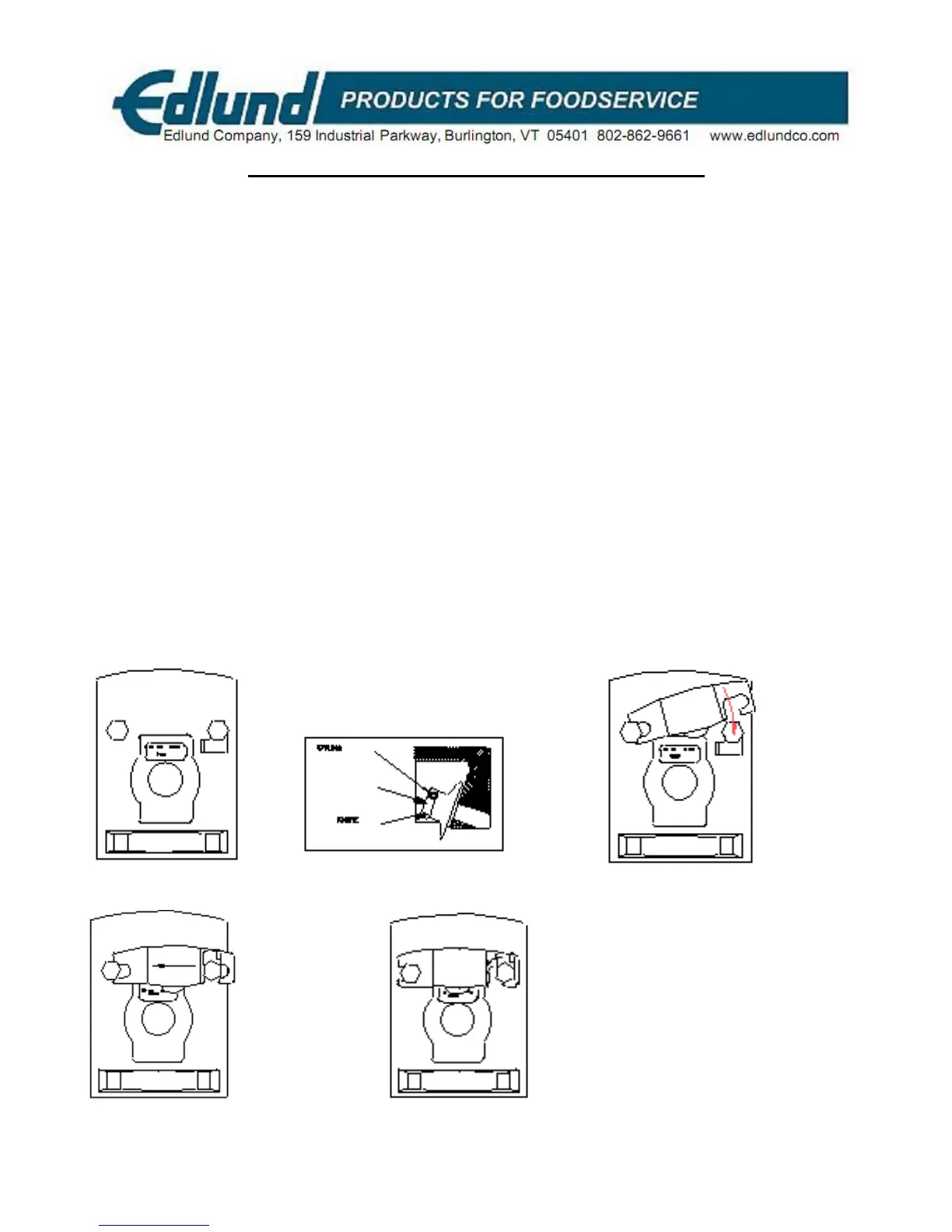

Reassembly of knife holder, knife, gear and shield.
1. Place the shield over the output shaft in the position shown and press the shield. Press firmly
against the front of the opener. (Fig.6)
2. Place the gear over the square output shaft and push the gear against the shaft shoulder. (Fig.6)
3. Lock the shield and the gear in place by pressing where the words "Press here to lock" are
located. The shield and the gear are locked when a click is heard. (Fig.6) Check pulling out on
the gear locks the gear. If the gear is properly locked in place it will not come off.
4. Reattach the knife by grasping the knife shoulder. Slide the knife over the "O" ring on the knife
stud. Twist and push the knife until it is seated against the knife holder. (Fig.7)
5. To reattach the knife holder, place the left slot over the left shoulder screw. Rotate the knife
holder clockwise until the right slot slides over the right shoulder screw. (Fig.8)
6. Push the knife holder to the left. (Fig.9)
7. Rotate the knife holder latch counterclockwise until the knife holder is locked in place.
(Fig.10)
NOTE: NEVER OPERATE OPENER WITHOUT OPENER SHIELD IN PLACE
Fig. 6 Fig. 7
Fig. 8
Fig. 9
Fig. 10
