Page/Seite/Page 8 © Edwards Limited 2020. All rights reserved.
D14641885 Issue L/Ausgabe L/Version L

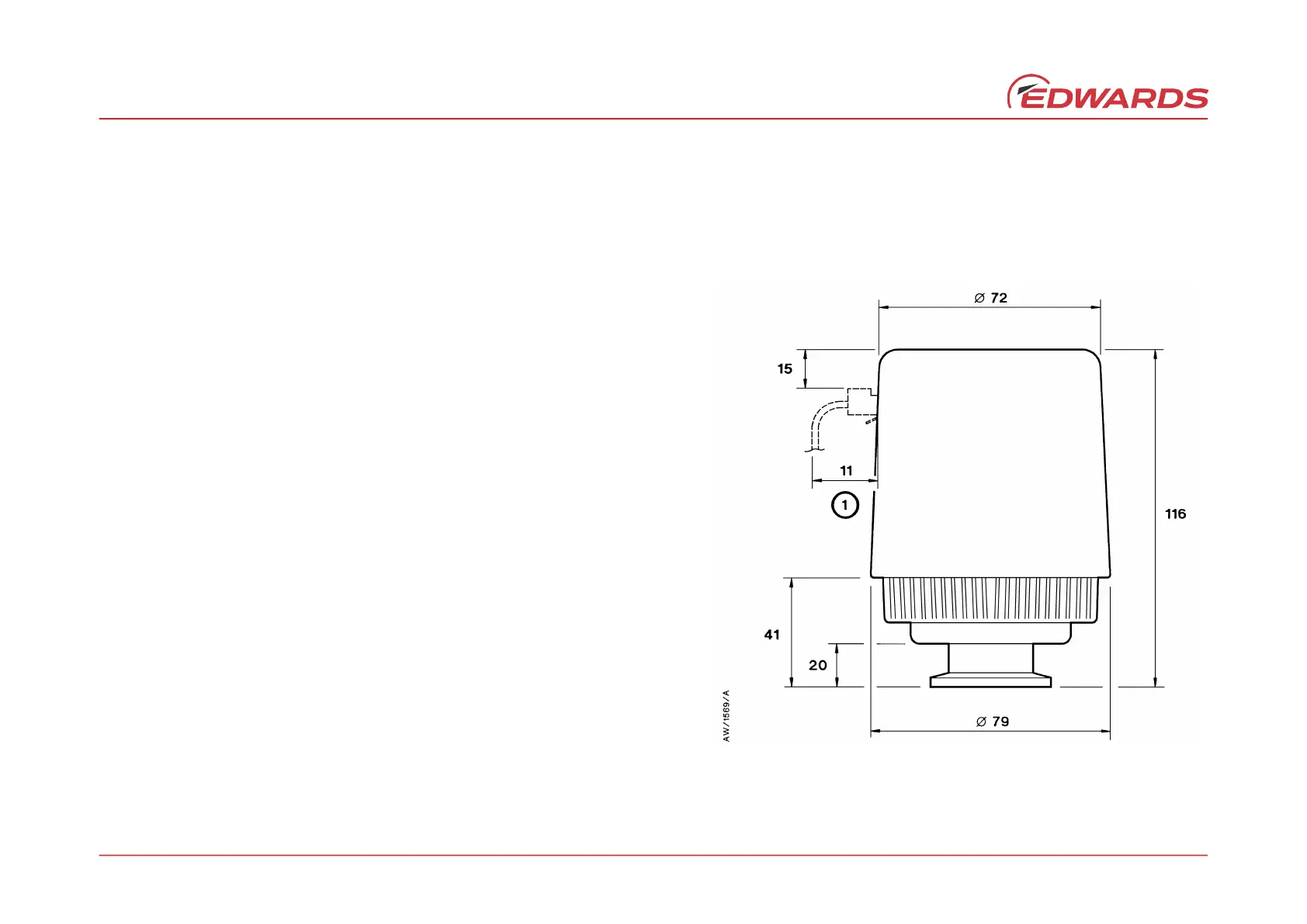

Figure 2 – Dimensions (mm)
Abbildung 2 – Abmaße (mm)
Figure 2 – Dimensions (mm)
1. Clearance required for electrical cable
1. Freiraum für elektrisches Kabel
1. Espace requis pour le passage du câble électrique
