Edwards FL20K - Component Parts of the FL20 K

A133-99-880 Issue E
Page 2 © Edwards Limited 2013. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Introduction

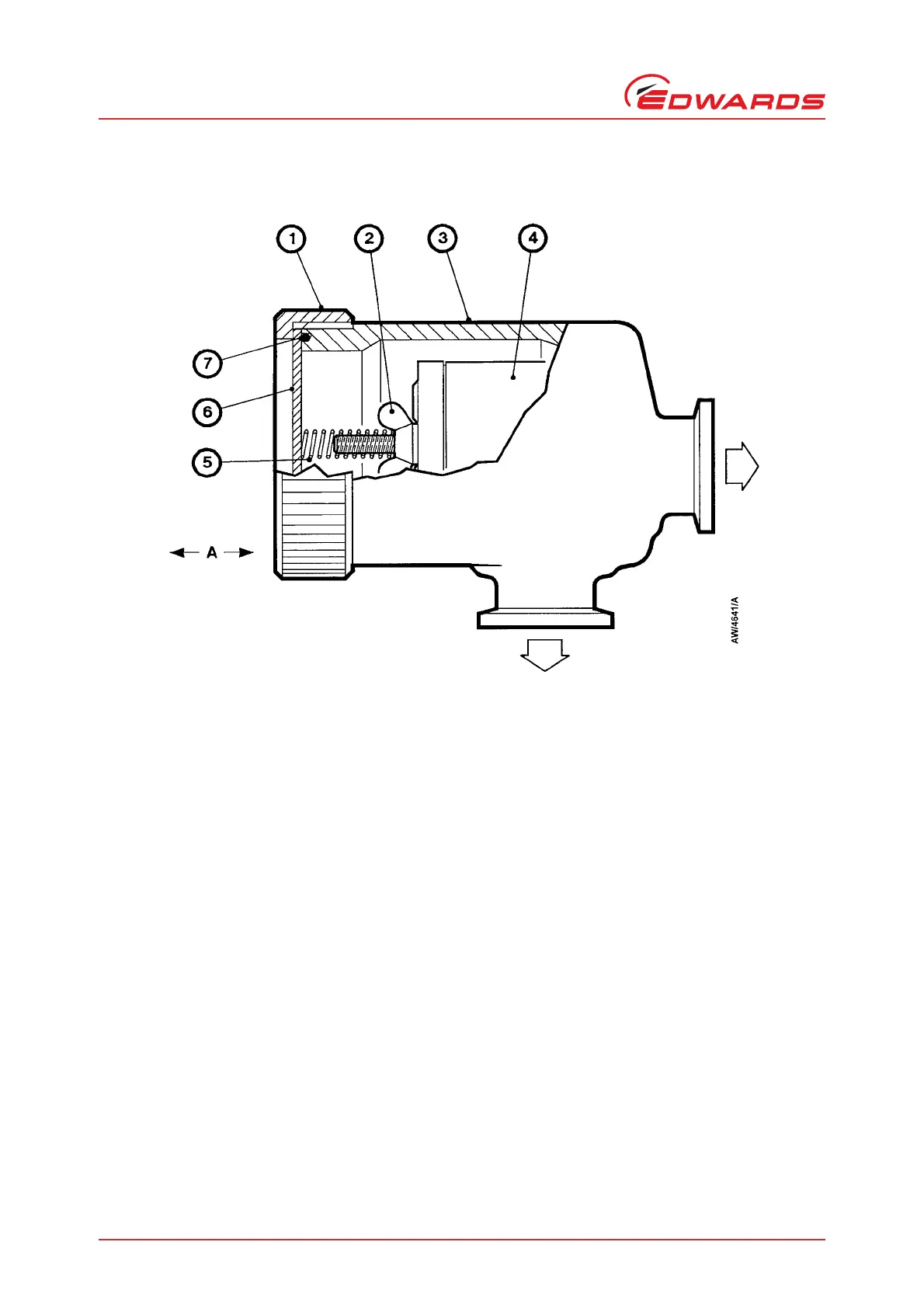

Figure 1 - Component parts of the FL20K
1. Nut
2. Wing nut
3. Body
4. Basket
5. Compression spring
6. Lid
7. O-ring
A. Clearance required for removal of basket (4)
