Installation
A133-99-880 Issue E
Fill the basket with alumina balls so that the top of the sorbent charge is approximately level with the
marker (6).
Tap the basket gently to settle the sorbent, then add more alumina balls if necessary.
5. Place the perforated end disk (7) on top of the alumina balls and slide the spring (8) over the spindle (4) so that
it rests on the end disk (7). Ensure that both end disks (5 and 7) have their smooth side in contact with the balls.
6. Refit the washer (10) and end cap (1) over the spindle.
7. Refit the second washer (10) and wing nut (9) over the spindle (4) and tighten the wing nut (9). To ease
tightening of the wing nut, push the lid down gently
8. Position the charged basket in the trap, ensuring that it is fully located on the bottom O-ring seal.
9. Refer to Figure 1 and replace the spring (5), lid (6) and nut (1).

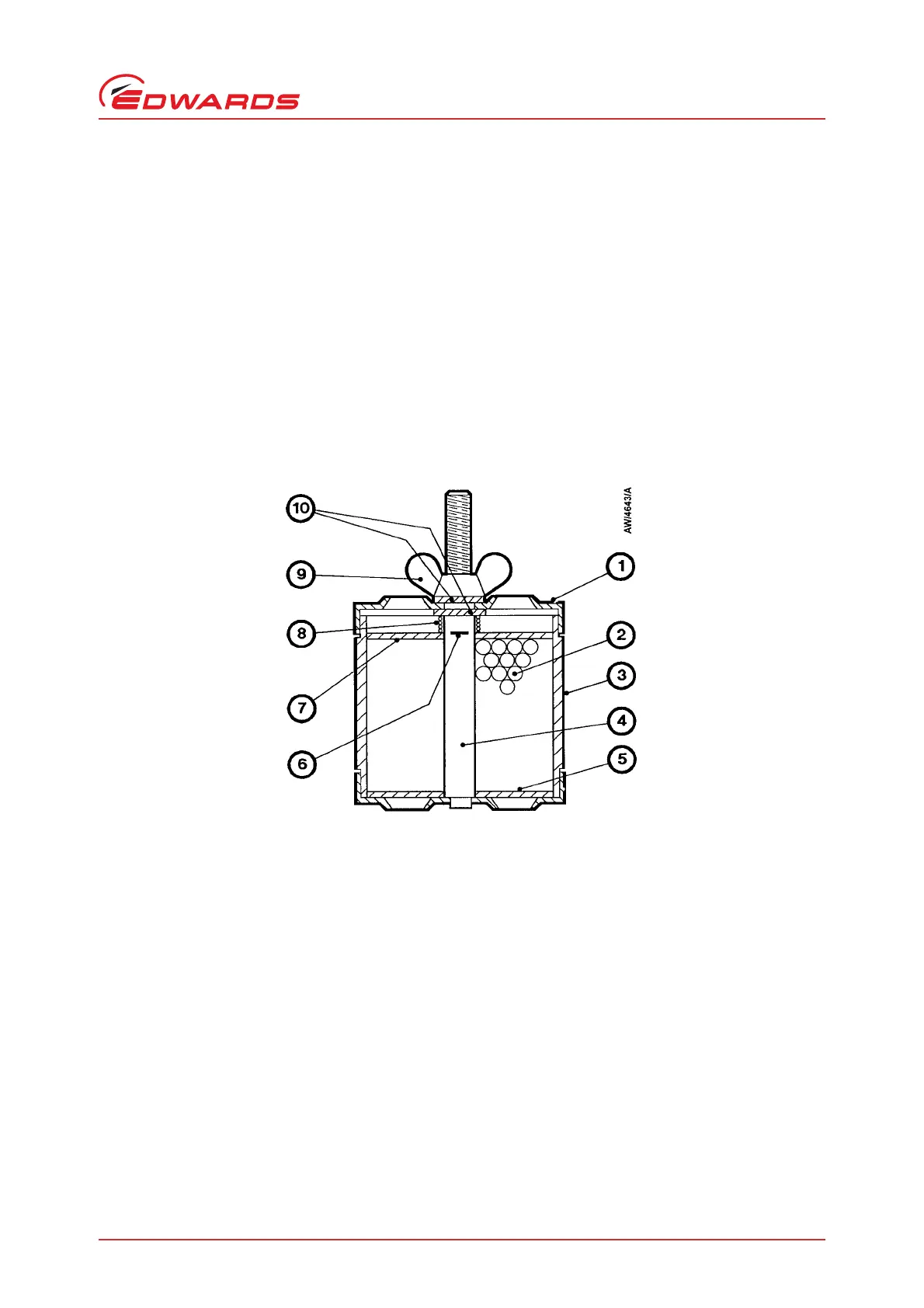

Figure 3 - Component parts of the basket assembly
1. End cap
2. Activated alumina
3. Basket
4. Spindle
5. End disk
6. Alignment marker
7. End disk
8. Compression spring
9. Wing nut
10.Washer (M6)
