Installation
 Tighten the locking screw (item 3) to firmly hold the locking mechanism in place.
 Connect the other end of your electrical supply cable to your electrical supply through a suitable isolator.

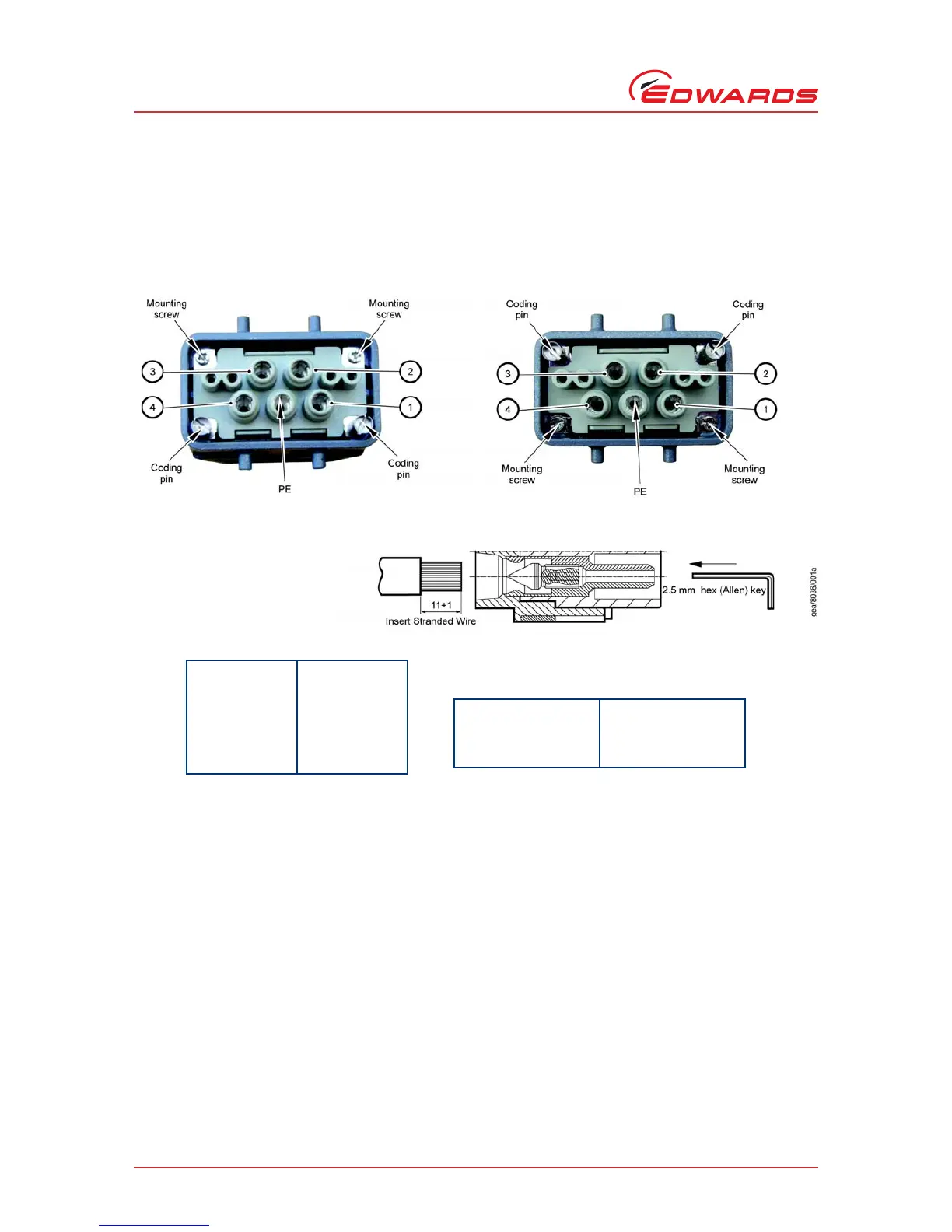

Figure 8 - The Harting Han
®
K 4/4 cable-mounted connector
Low volt pin configuration
High volt pin configuration
Pin identification
Pin 1 Phase 1
Pin 2 Phase 2
Pin 3 Phase 3
Pin 4 Not connected
PE Protective earth
Torque settings for connector pins
Cable size (mm
2
)
Max torque setting
(Nm)
62
10 3
16 4
