BRUSCHCUTTERS DS 2200 - DS 2400
Workshop manual

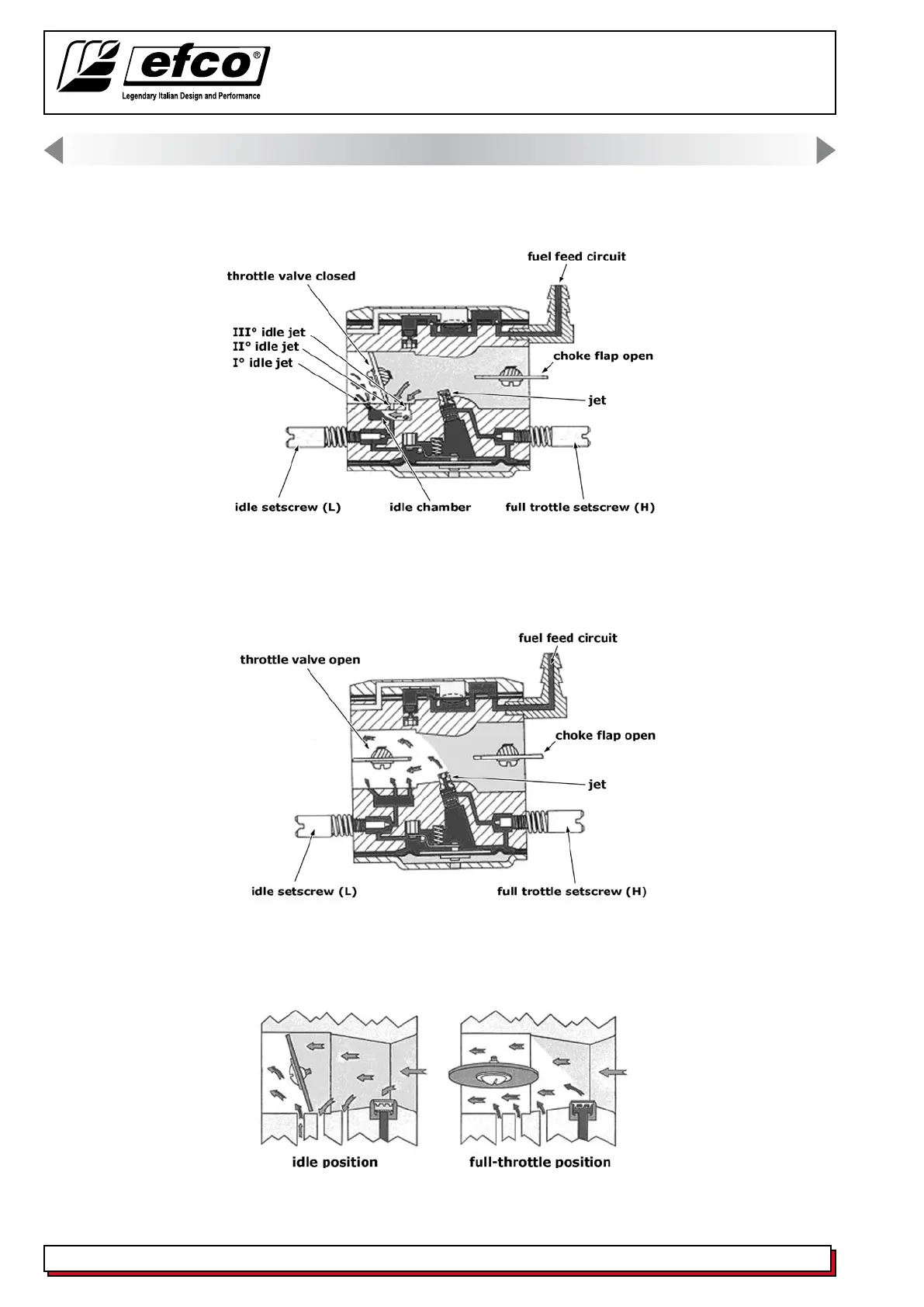

13. FUEL SYSTEM
Idle setting
Throttle valv
e closed.
The air and fuel mixture is formed at the outlets of the idle jets.
Full-throttle setting
Throttle valv
e open.
The air and fuel mixture is formed in the V
enturi.
Fuel jet – Operation of the main jet
Fuel is delivered by the main jet at full throttle, and cut off at the main jet when the engine is idling.
43
45
Table of Contents
Table of Contents
4
General Information
5
Safety
7
Fastener Torques
10
Metric Fastener Torque Values
10
Inch Fastener Torque Values
11
Fastener Torques of the DS 2400
12
Fastener Torques of the DS 2200
15
Serial Number
18
Starter
19
Muffler
24
Ignition
26
Clutch
30
Transmission
31
Bevel Gear
33
Short Block
37
Piston Failure Analysis
40
Fuel System
42
Carburetor Tuning
48
Trouble Shooting
49
