EFCUT MF30 - Parts Breakdown

12


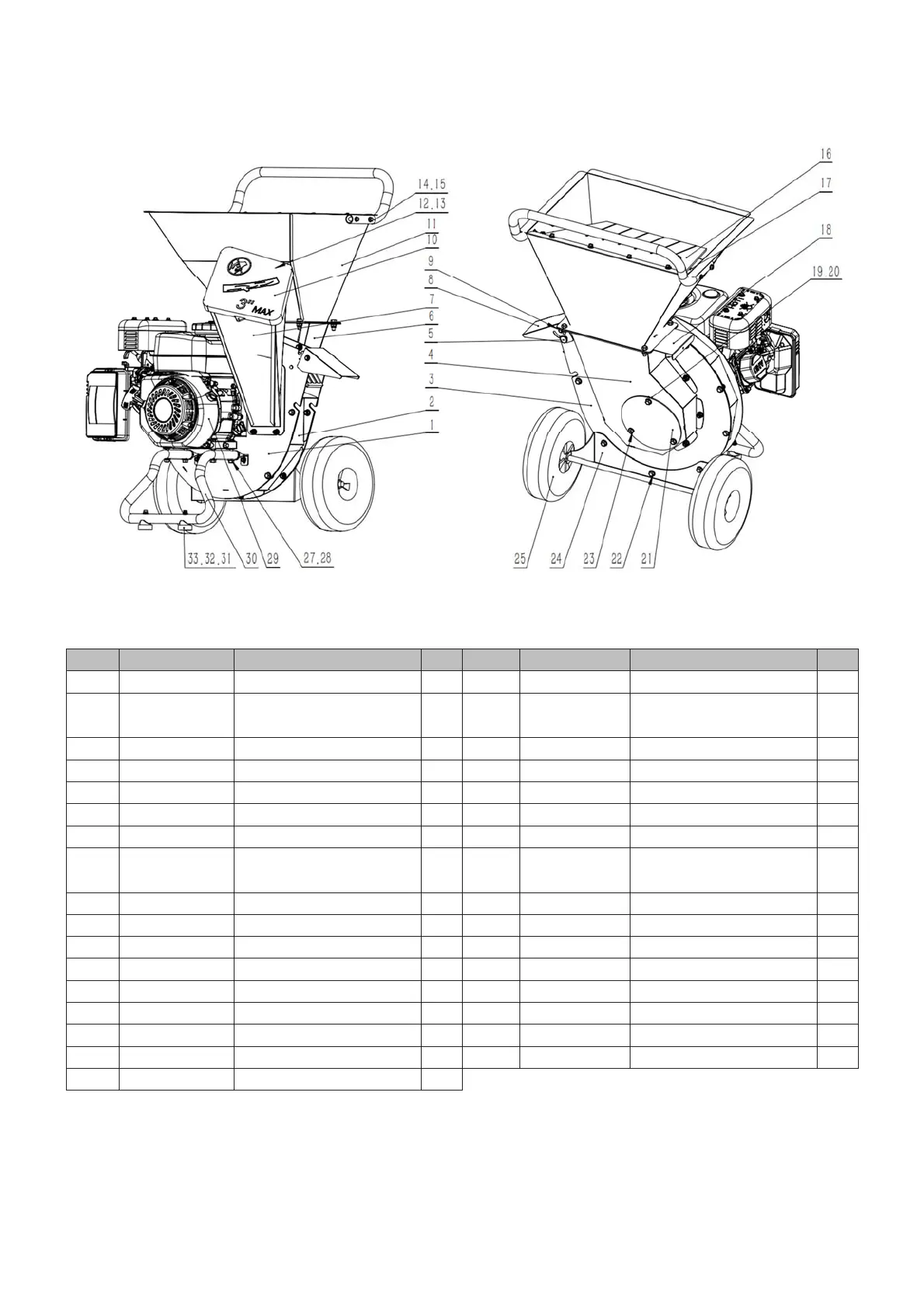

PARTS BREAKDOWN
Ref. # Part # Description Q’ty Ref.# Part #
Description
Q’ty
1
902‐13A‐01 Coverofhousing
1 18
902‐13A‐08 Damperplate
1
2
902‐13A‐01‐4 Removablecoverof
housing
1 19
802‐018 Dualdiscself‐lock
washerM10
1
3
902‐13A‐02 Backcoverofhousing
1
20
801‐071 3/8‐24UNF‐30bolt
1
4
902‐13A‐03 Rotorassembly
1 21
902‐13A‐09 Vacuuminletcover
1
5
801‐065 HandscrewboltM6X16
1 22
801‐031 FlangehexboltM8X20
9
6
902‐13A‐04 Bottomhopper
1
23
801‐030 FlangehexboltM8X16
9
7
902‐13A‐12 Chippercone
1 24
902‐12A‐13 Wheelrack
1
8
902‐13A‐11 Adjustabledischarge
guard
1
25
703‐003 Wheel
2
9
902‐13A‐07
U shape plate
1 26
804‐002 Cotterpin3X40
2
10
701‐015 Conecap
1
27
801‐068 FlangehexboltM8X55
4
11
902‐13A‐05 Hopper
1
28
803‐005 FlangenutM8
29
12
902‐13A‐13 Retainercoverguard
1 29
101‐001D 212ccgasengine
1
13
801‐059 FlangehexboltM6x16
5
30
902‐12A‐04A Stand
1
14
902‐13A‐10 Handle
1 31
702‐002 Standpad
2
15
801‐067 FlangehexboltM6X35
4 32
801‐062 FlangehexboltM6X40
2
16
701‐014 Hopperguard
1 33
803‐012 FlangenutM6
17
17
902‐13A‐06 Retainerhopperguard
1   
