Effecta Lambda - Electrical installation

15
Effecta AB - Västra Rågdalsvägen 21 - 434 96 Kungsbacka - 0300 - 22320 - info@effecta.se
230 VAC
12 volt
Traco, 2,1 amp
12 volt
+
+
T01
D1
D2
Red
Green
Grey
White
Yellow
Black
B3
S5
S4
Brown
Red
Yellow
Orange
Brown
Red
Yellow
Orange
-
-
V2
V1
L1

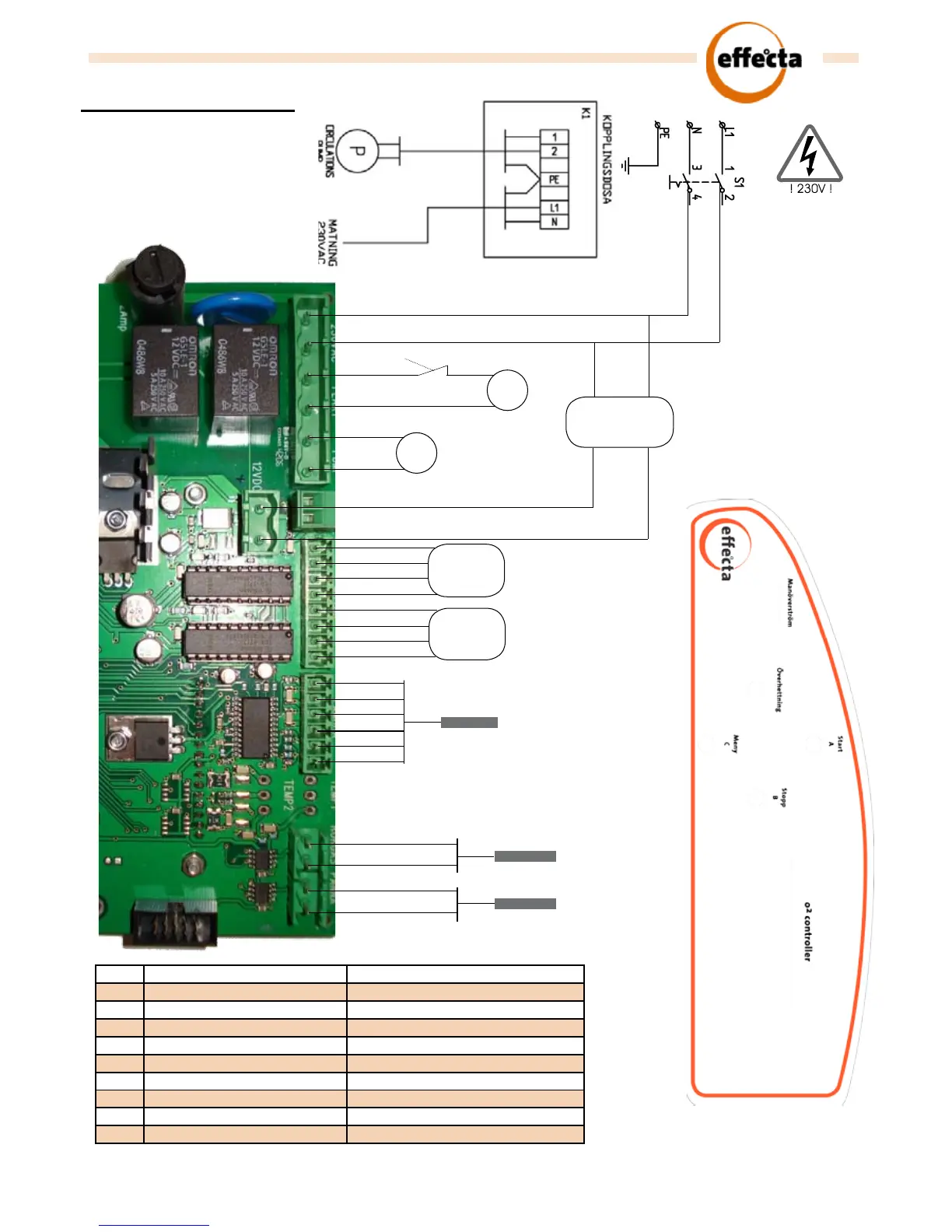

Electrical installation
S1 Power supply Incoming 230 VAC
T01 Overheating protection Mecanical overheating protection
B3 Fuse Fuse 2 amp
S4 Sensor ue gas Sensor TYP K
S5 Sensor boile temperatur Sensor TYP K
D1 Flue gas fan 230 VAC
D2
Pump laddomat 230 VAC
V1 Motor primary air 12 volt
V2
Motor secondary air 12 volt
L1 Lambdasond ---------------------------
S1
T01
+
-
