EFI Vutek QS3200 User Manual

QS Series Basic Operator's Guide
Key (internal view)
1 UV lamp assembly (2x)
2 Ink cabinet
3 Vacuum purge wiper
4 Carriage
5 Outfeed media hold down assembly
6 Media conveyor belt
7 Electronics cabinet

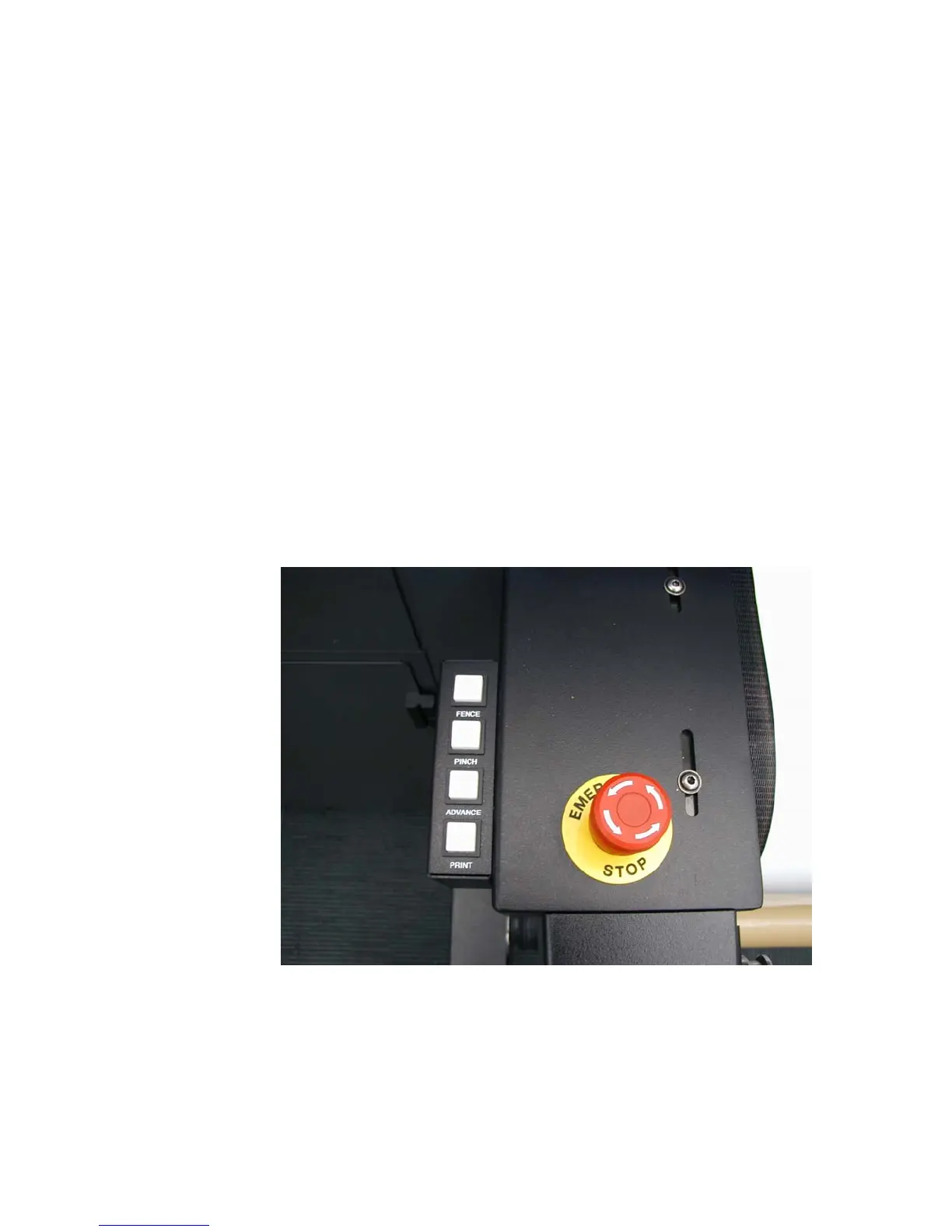

Rear control panel
Your QS Series printer has a rear control panel to increase
productivity by allowing you to control printer functions from
the rear of the printer.
Use the rear control panel to move the fence up and down,
move the media roller up and down, advance the media, and
start printing.
Rear control panel
Fence Press to move the fence up. Press again
to move the fence down.
Pinch Press to move the media roller up. Press
6 OMM-00038-US English-F

EFI Vutek QS3200 Specifications

General

Maximum Print Width	3.2 meters (126 inches)
Print Resolution	up to 1080 dpi
Media Types	Flexible and rigid substrates
Ink Colors	CMYK, Light Cyan, Light Magenta, White, Clear
Maximum Media Thickness	Up to 2 inches
Production Speed	up to 900 square feet per hour
Ink Type	UV-curable
Media Handling	Roll-to-roll
Connectivity	Ethernet
Technology	UV Inkjet
