EFLOW EF-Series - Page 17

EF-Series Instruction Manual
Rev 2/01 1-13
Notes: All dimensions are in inches.

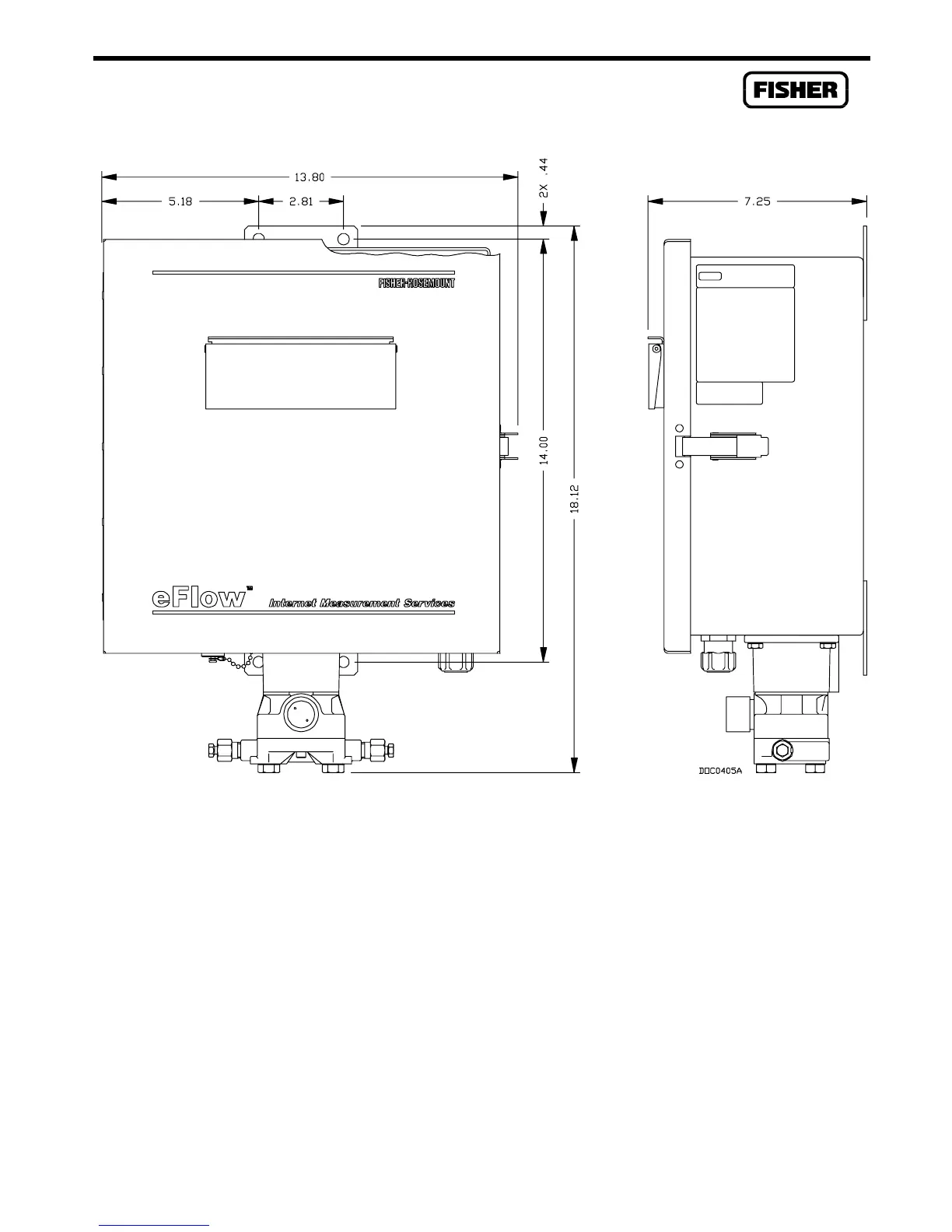

Figure 1-2. Outline and Mounting Dimensions
CAUTION
The EF-Series Unit must be mounted vertically with the Sensor at its base as shown in
Figure 1-2.
①
