C556 Self Powered Elliptical Fitness Crosstrainer
Page 16
Procedure 6.1 - Troubleshooting the Lower and Upper
Interconnect Cables
Anti-static kits can be ordered from Precor (part number 20024-101).
Troubleshooting the Upper Interconnect Cable
WARNING
Before continuing with this procedure, review the Warning and Caution statements listed in
Section One, Things You Should Know.
10. Attach the anti-static wrist strap to your arm, then connect the ground lead of the wrist strap
to the units frame.
11. Remove two screws that fasten the upper mid-point cover. Remove two screws that fasten
the lower mid-point cover. Remove both halves of the cover and the split ring. See Diagram
6.1

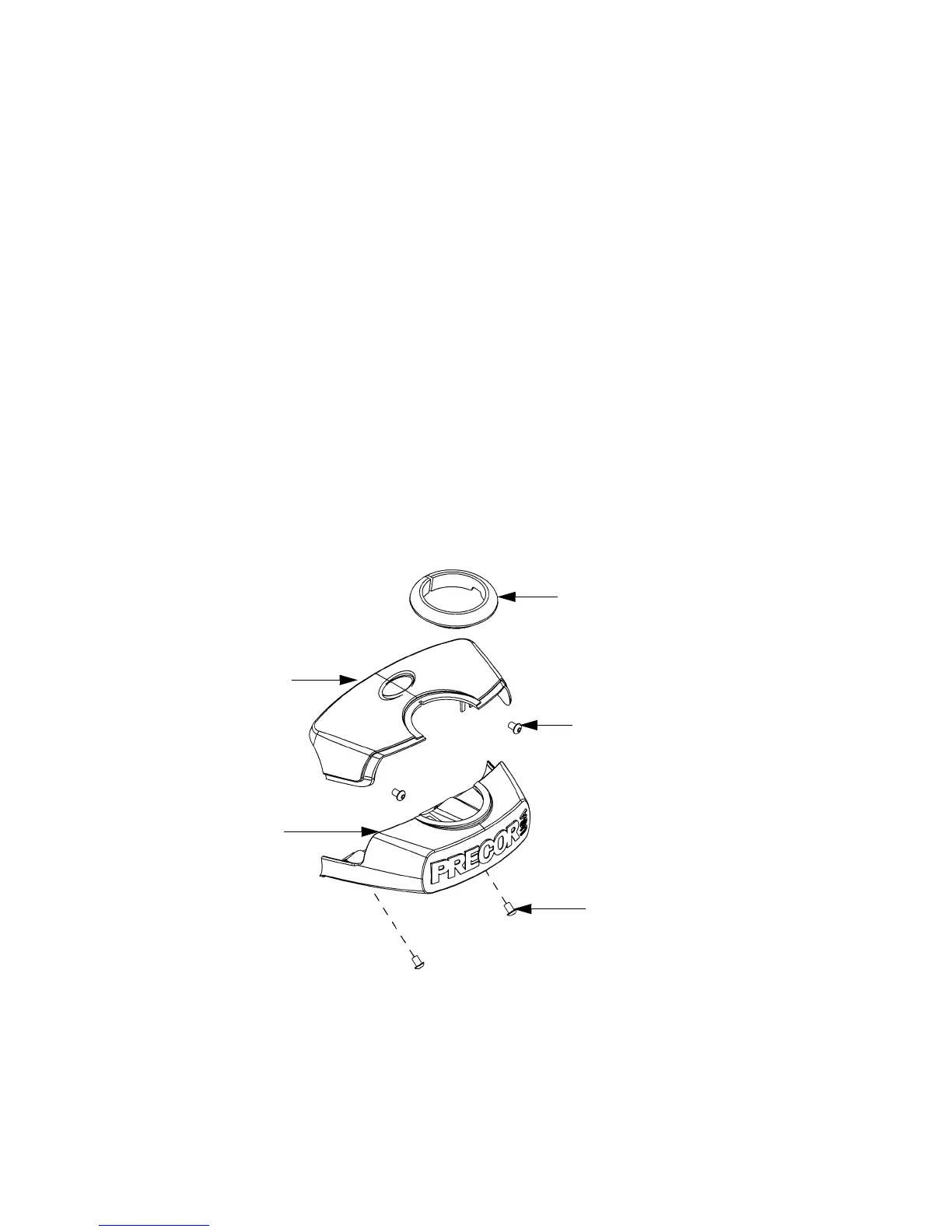

Diagram 6.1 - Mid-Point Cover
Split Ring
Upper Cover
Upper Cover
Mounting Screw
Lower Cover
Lower Cover
Mounting Screw
To Next Page
