C556 Self Powered Elliptical Fitness Crosstrainerl
Page 49
Procedure 7.16 - Replacing a Lower Pivot Arm
WARNING
Before continuing with this procedure, review the Warning and Caution statements listed in
Section One, Things You Should Know.
1. Remove the retaining ring that fastens the lower pivot arm to the stairarm connector. See
Diagram 7.12.
2. Remove the bolt that fastens the lower pivot arm to the upper pivot arm.

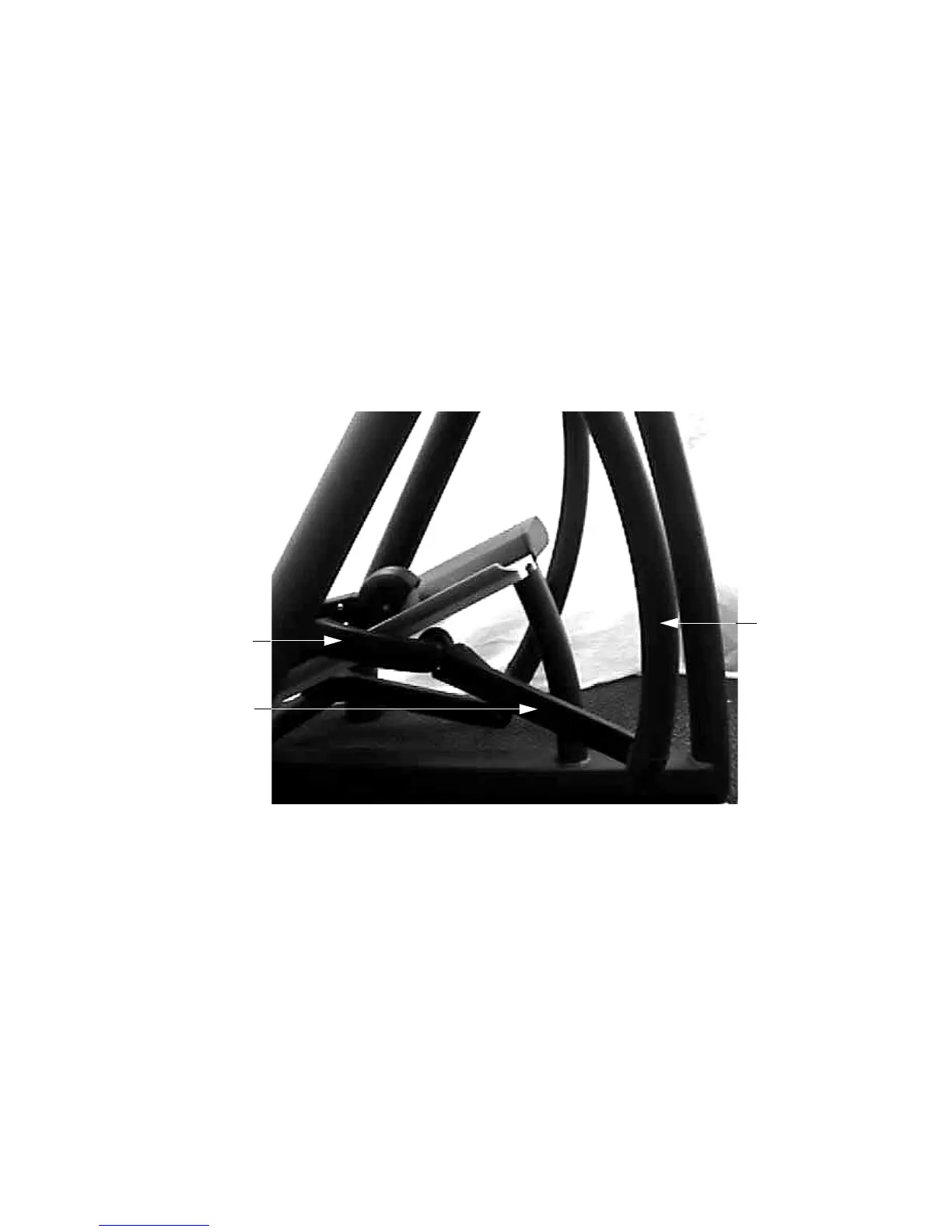

Diagram 7.12 - Pivot Arms
3. Remove the lower pivot arm.
4. Slide the lower pivot arm onto the pivot arm connector. Replace the retaining ring removed
in step 2.
5. Align the lower pivot arm with the upper pivot arm and replace the bolt removed in step 3.
Torque the bolts to 200 inch pounds.
Upper
Pivot Arm
Lower
Pivot Arm
Stairarm
Connector
