C556 Self Powered Elliptical Fitness Crosstrainerl
Page 47
Procedure 7.14 - Replacing a Handlebar
1. Remove the four screws that fasten the handlebar to the upper pivot arm.

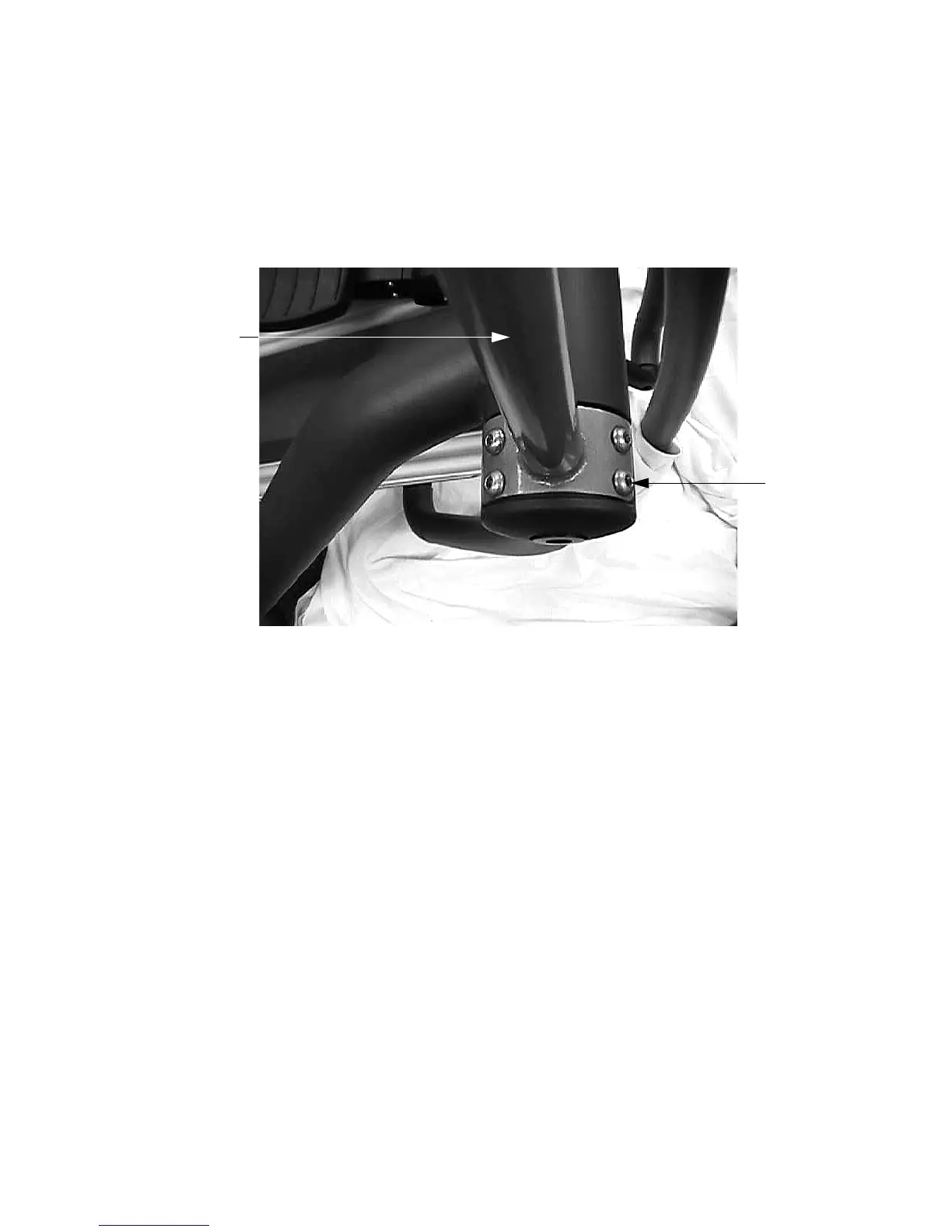

Diagram 7.10 - Handlebar Mounting
2. Set the replacement handlebar in it’s mounting position. Hand start the four mounting
screws. Center the handlebar in the indented area of the upper pivot arm. Torque the four
mounting screws to 300 inch pounds.
Handlebar
Mounting
Screw
