The EG4 Brightmount is an adjustable ground mount system designed for photovoltaic (PV) module installations. Its primary function is to provide a stable and adjustable framework for solar panels, allowing for optimal sun exposure and energy harvesting. The system is engineered to be robust and adaptable, catering to various site conditions and performance requirements.

Function Description:

The EG4 Brightmount system serves as the structural foundation for solar panel arrays installed on the ground. It is designed to securely hold PV modules at a specific tilt angle, which can be adjusted to maximize solar energy capture throughout the year or for different geographical locations. The system comprises several key components that work in conjunction to form a complete and reliable mounting solution.

The core of the system involves rack rails, which are the main structural elements that support the solar panels. These rails are attached to mount groups, which in turn are anchored to the ground. The mount groups include adjustable legs, a crucial feature that allows installers to modify the tilt angle of the entire solar array. This adjustability is vital for optimizing the system's performance, as the ideal tilt angle varies depending on the latitude of the installation site and the seasonal path of the sun. By adjusting the angle, users can ensure that the solar panels receive the maximum possible direct sunlight, leading to higher energy yields.

Mid clamps and end clamps are used to secure the PV modules to the rack rails. Mid clamps are positioned between two adjacent panels, holding them firmly in place, while end clamps are used at the outer edges of the array to secure the outermost panels. These clamps are designed to provide a strong grip, preventing movement or dislodgment of the panels due to wind or other environmental factors.

Grounding components are an integral part of the EG4 Brightmount system, ensuring electrical safety and compliance with relevant codes. Grounding clips are used to establish electrical continuity between the PV modules and the mounting rails, while grounding lugs are installed on the rails to connect a grounding wire. This comprehensive grounding scheme protects the system from lightning strikes and other electrical faults, safeguarding both the equipment and personnel.

Splice connectors and bonding jumpers are used to extend the rack rails and ensure electrical continuity across multiple rail sections. When an array requires longer rail lengths than a single rail can provide, splice connectors join two rail sections together. Bonding jumpers are then used to maintain the electrical bond between these spliced sections, ensuring that the entire rail structure is properly grounded.

Anchor bolts are provided to secure the mounting brackets to concrete foundations. These bolts ensure that the entire ground mount system is firmly attached to the ground, providing stability and resistance against uplift forces from strong winds. The design of the mounting brackets and anchor points is critical for the long-term integrity and safety of the solar array.

Usage Features:

The EG4 Brightmount system is designed for ease of installation and adjustability, offering several features that enhance its usability.

One of the primary usage features is the adjustable leg mechanism. This allows for a flexible range of tilt angles, typically from 25° to 45°, to suit diverse solar irradiation requirements. The adjustment process involves loosening set screws, setting the desired angle by extending or retracting the adjustable leg to a specific length (as indicated by a provided chart), and then re-securing the set screws. This feature empowers installers to fine-tune the array's orientation for optimal performance based on the specific site and seasonal needs. The ability to lock the adjustable leg in place ensures the stability of the chosen angle.

The system incorporates a modular design, which simplifies the assembly process. Components like rack rails, mount groups, and clamps are designed to fit together intuitively, reducing installation time and complexity. The use of standard bolts and nuts, along with recommended torque settings, ensures secure connections across the entire structure.

The installation process is broken down into logical steps, starting with the assembly of leg groups, followed by the installation of L feet and anchor bolts into concrete foundations. The rail assembly then connects to these L feet, with splice connectors used for longer rail runs. Finally, PV modules are attached using mid and end clamps, along with grounding clips. This structured approach makes the installation manageable for trained personnel.

The system's design accommodates various panel widths, with a maximum panel width specified to guide installers in selecting appropriate PV modules. This flexibility allows for integration with a wide range of commercially available solar panels.

Grounding is a key usage feature, with specific components like grounding clips and grounding lugs integrated into the design. These components facilitate the creation of a robust grounding path, which is essential for electrical safety and compliance. The circular grounding shim used in rail splices further ensures electrical continuity throughout the rail system.

The system's robust construction, utilizing materials suitable for outdoor environments, ensures durability and long-term performance. The components are designed to withstand various weather conditions, including wind loads and temperature fluctuations, contributing to the longevity of the solar installation.

Maintenance Features:

While the EG4 Brightmount system is designed for durability and minimal maintenance, certain features and considerations contribute to its long-term upkeep.

The robust construction of the components, made from materials resistant to corrosion and degradation, inherently reduces the need for frequent maintenance. Once installed and properly torqued, the structural integrity of the system is designed to last for many years.

Regular visual inspections are a primary maintenance feature. Periodically checking the entire array for any signs of loose connections, damaged components, or corrosion can help identify potential issues before they escalate. This includes inspecting all bolts, nuts, clamps, and rail connections to ensure they remain secure.

The adjustable leg mechanism, while a usage feature, also has maintenance implications. Over time, environmental factors or vibrations could potentially affect the tightness of the set screws. Therefore, periodic checks of these screws, and re-torquing them to the recommended specification if necessary, are important to maintain the desired tilt angle and overall stability of the array.

The grounding system, including grounding clips and lugs, should also be part of routine maintenance checks. Ensuring that all grounding connections are intact and free from corrosion is critical for maintaining electrical safety. Any signs of damage or loose connections in the grounding path should be addressed promptly.

The open design of the ground mount system allows for relatively easy access to components for inspection or replacement if needed. Should a component be damaged due to unforeseen circumstances, its modular nature means that individual parts can often be replaced without dismantling the entire array.

Cleaning of the solar panels themselves is a separate but related maintenance activity. While not directly a feature of the mounting system, the accessibility provided by the ground mount design can facilitate easier cleaning compared to some rooftop installations. Keeping the panels clean ensures maximum light absorption and consistent energy output.

In summary, the EG4 Brightmount system is designed to be a reliable, adjustable, and safe ground mounting solution for solar panels. Its features prioritize ease of installation, optimal performance through angle adjustability, and long-term durability with straightforward maintenance considerations.

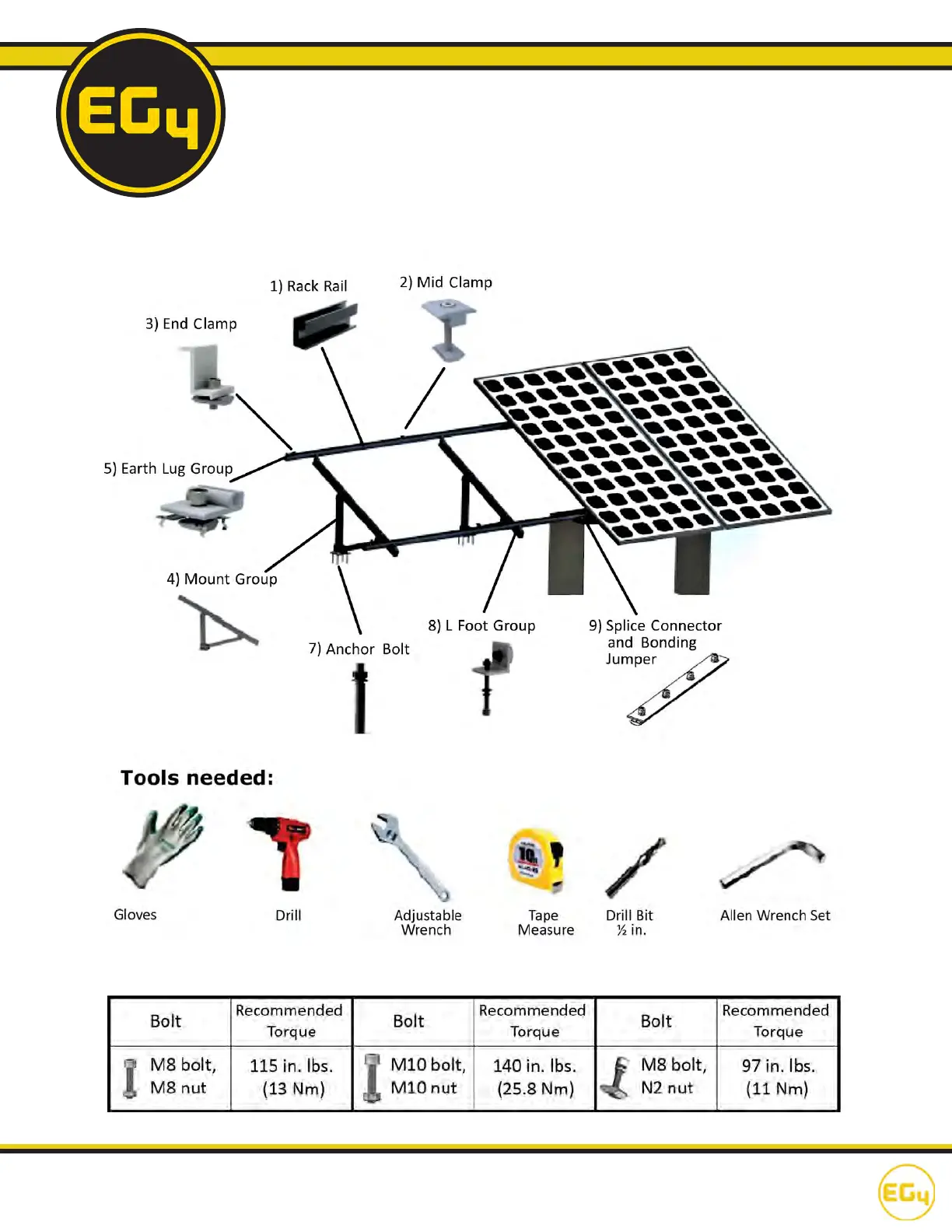

EG4 BRIGHTMOUNT - Layout and Installation Overview; Overall Layout and Tools
