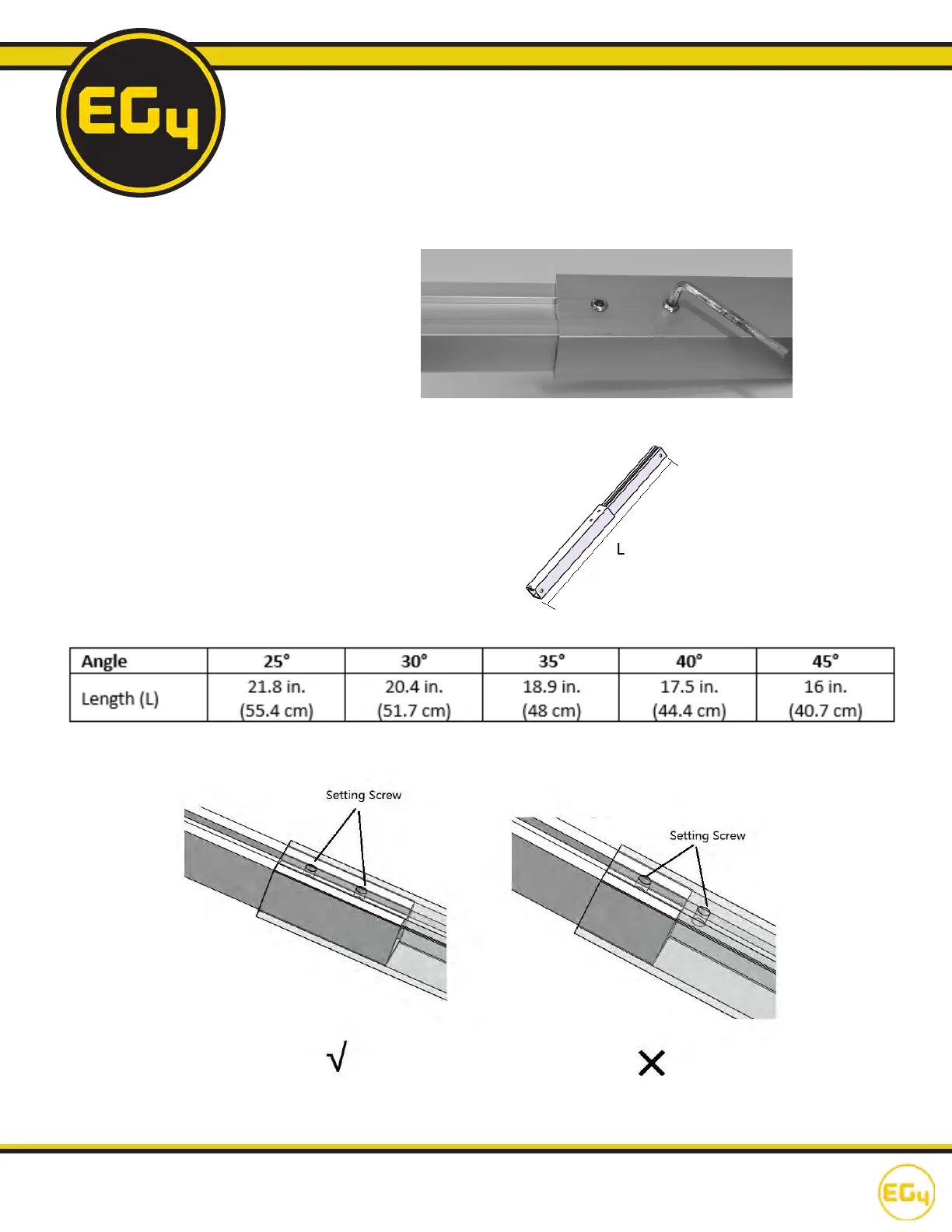

Loosen set screws to
adjust the angle of the
array. Different angles
correspond to the lengths
provided in the chart
below. The recommended
torque for the set screws
is 80 in. lbs. (9 Nm).
Note: Both set screws
must be secured to lock
the adjustable leg in
place.
