3756-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2100SP & LM2100
PARTS LIST 56V LITHIUM-ION CORDLESS LAWN MOWER MODEL NUMBER LM2100SP/LM2100.
The Model Number will be found on the Nameplate attached to the rear-discharge door of the lawn mower. Always
mention the Model Number when ordering parts for this tool.

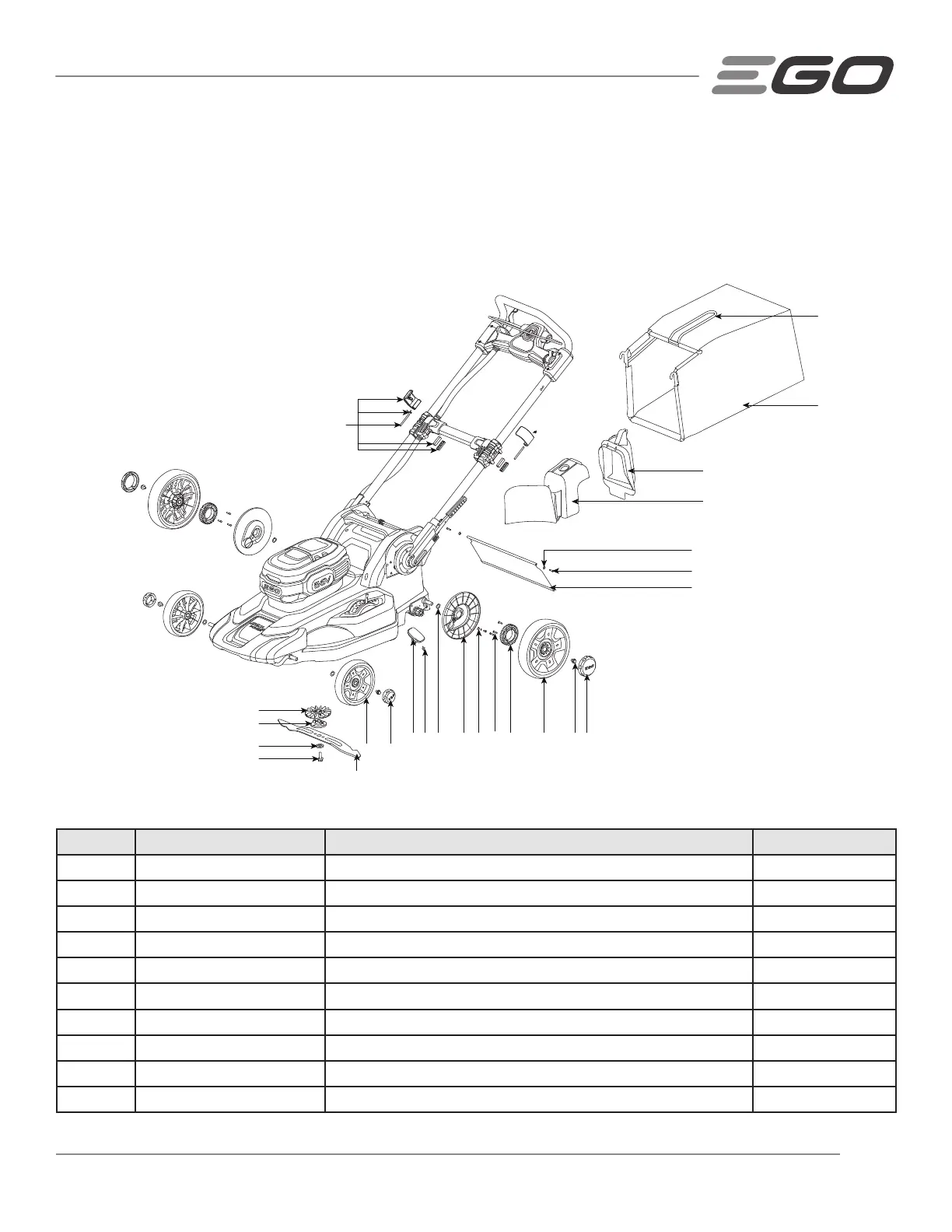

EXPLODED DRAWING FOR LM2100SP
2
1
3
4
25
1819
20
21
22
23
24
891011121314151617
5
7
6
PARTS LIST FOR LM2100SP
No. Part Number Part Name Quantity
1 3800109000 Grass Bag 1
2 3705442000 Bag Frame 1
3 3127911000 Side Discharge Chute 1
4 3127924000 Mulching Insert 1
5 5610042000 Tapping Screw 8
6 5650004000 Plain Washer 4
7 3126391000 Trailing Shield 1
8 3126765000 Rear Hubcap 2
9 5640010000 Hexagon Flange Bolt 4
10 2824279000 Rear Wheel Assembly 2
To Next Page
