56-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2100SP & LM2100
38
11 3128057000 Gear 2
12 5620040000 Screw 2
13 5650007000 Spring Washer 2
14 3127923000 Wheel Cover 2
15 5650453000 Wave Washer 4
16 5620065000 Screw 2
17 3321478000 Height-Adjusting Lever 1
18 3126769000 Front Hubcap 2
19 2823662000 Front Wheel Assembly 2
20 3705938000 Blade 1
21 5640226000 Flange Bolt 1
22 5650510000 Outer Flange 1
23 3520852000 Inner Flange 1
24 3127847000 Fan 1
25 2823714000 Handle-Locking Clamp Set 2

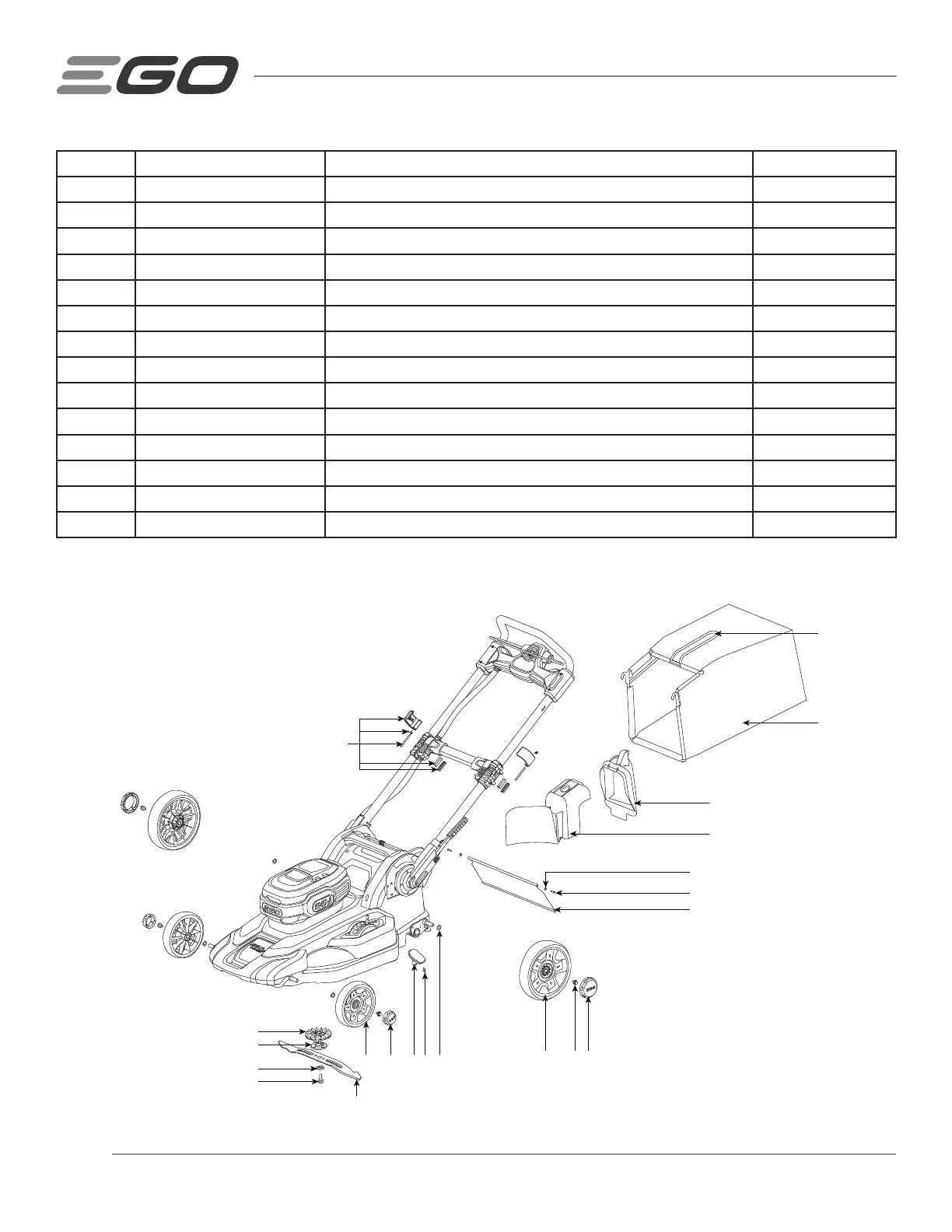

EXPLODED DRAWING FOR LM2100
