EDGER ATTACHMENT — EA0800/EA0800-FC 13
2. Loosen the wing knob.
3. Remove the end cap from the edger attachment. Align the arrow on the edger
shaft with the arrow on the coupler and push the edger shaft into the coupler until
you hear a clear “click” sound which indicates the edger shaft is mounted into
place (Fig. 2).
4. Pull the shaft of the attachment to verify it is securely locked into the coupler. If
not, rotate the edger shaft from side to side in the coupler until it snaps into place.
5. Tighten the wing knob securely.
WARNING:
Be certain the wing knob is fully tightened before operating
equipment; check it periodically for tightness during use to avoid serious personal
injury.
REMOVING THE ATTACHMENT FROM THE POWER HEAD
1. Stop the motor and remove the battery pack.
2. Loosen the wing knob.
3. Press the shaft-release button and with the button depressed, pull or twist the
attachment shaft out of the coupler.

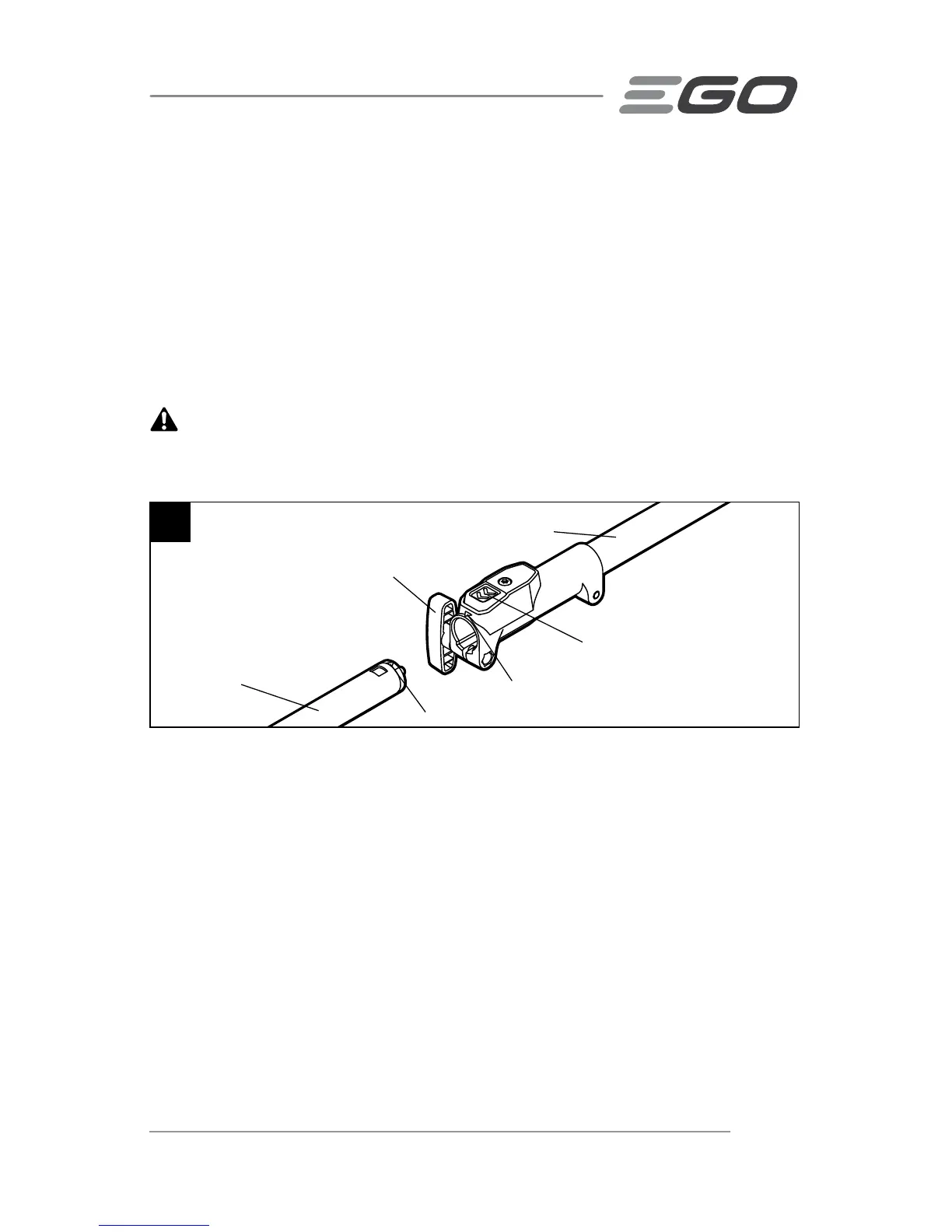

2
Arrow on the Coupler
Arrow on the Attachment Shaft
Edger Shaft
Shaft-Release Button
Power Head Shaft
Wing Knob
