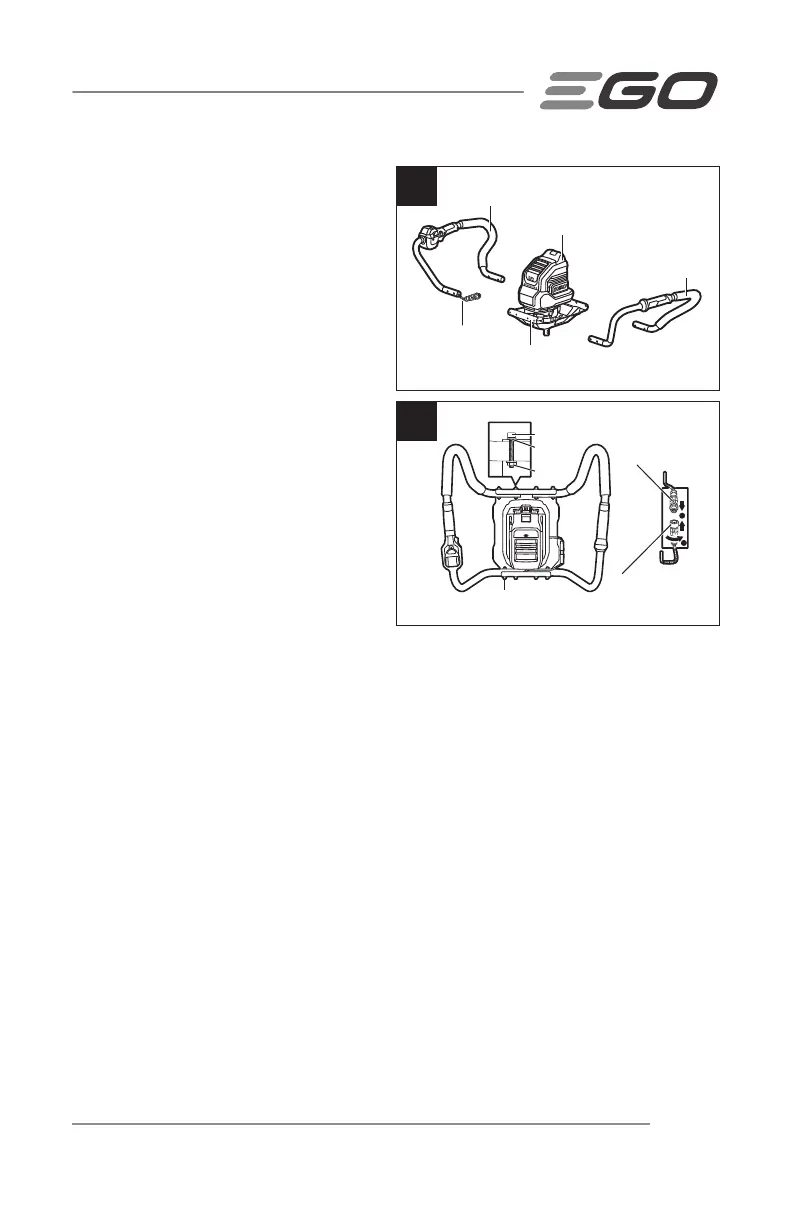

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC 19
INSTALLING THE HANDLES
(Fig. 2)
Required tools (provided): socket
wrench (10 mm), Allen key (5 mm)
1. With the battery pack port facing
backward, insert the tubes of the
right and left handles into the
curved slots on the power head
base (Fig. 2a).
2. Align the two holes in each handle
tube with the two holes in each base
slot.
NOTE: Incorrect right/left installation
of the handles will prevent these
holes from aligning.
3. Use the bolts, washers, and nuts
to secure the handles to the power
head. Use the wrench and 5 mm
Allen key to tighten them securely (Fig. 2b).
4. Align the arrow on the right handle cable with the arrow on the power head cable.
Then insert the cable plug of the right handle into the cable socket of the power
head. Tighten them securely (Fig. 2b).
NOTICE: To prevent cable damage do not bend or twist it during assembly.
2
1
2b
Cable Plug
Cable Socket
Bolt
Nut
Washer
8 Sets of Screws,
Washers & Nuts
2a
Left Handle
Base Slot
Battery Pack Port
Right Handle
Cable
