EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC20
INSTALLING THE AUGER BIT
WARNING:
The auger bit is very
sharp. To prevent personal injury, exercise
extreme caution when cleaning, installing,
or removing the auger bit. Always wear
protective gloves when performing
maintenance on the auger bit.

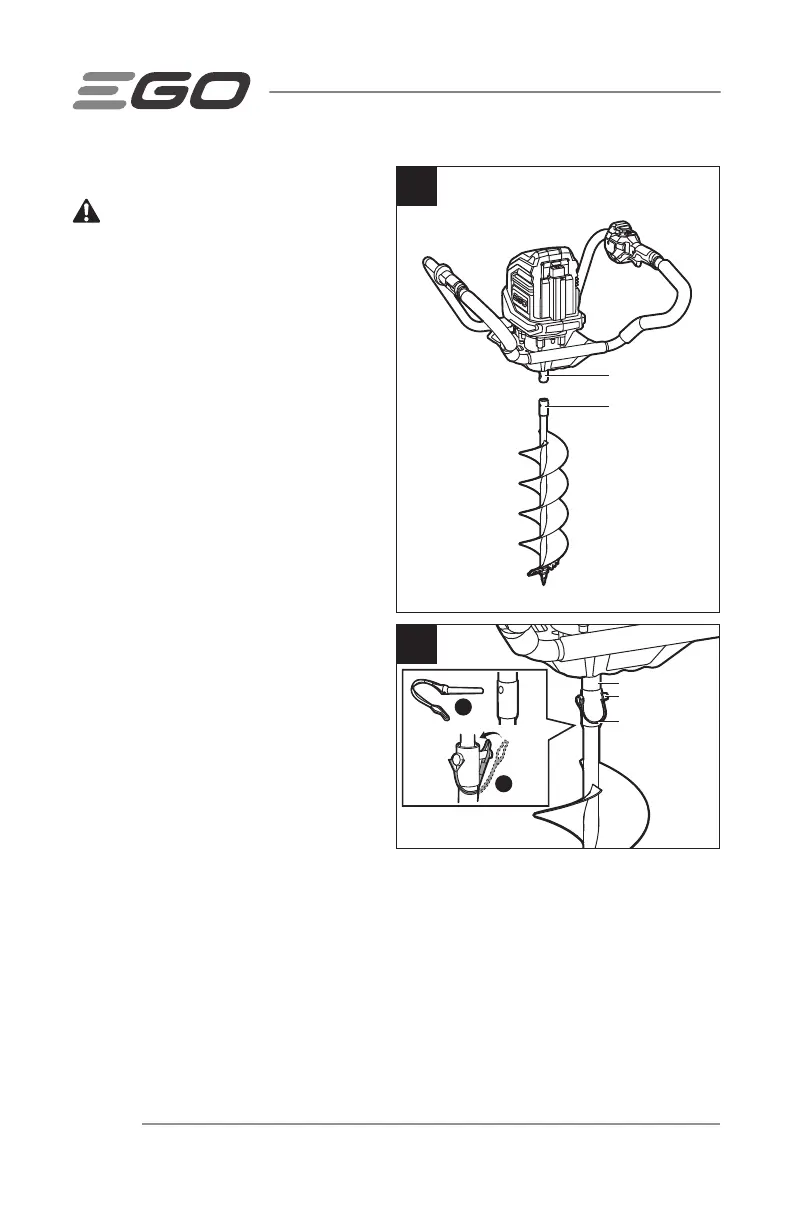

To Install the Earth Auger Bit
(Fig. 3a & 3b)
1. Remove the locking pin with pin clip
from the earth auger bit.
2. Mount the upper end of the auger
bit onto the drive shaft of the power
head.
3. Align the connection holes on the
auger bit and drive shaft.
4. Insert the locking pin through the
aligned connection holes.
5. Close the pin clip to prevent the
locking pin from falling out.
3a
Drive Shaft
Upper End of
the Auger Bit
1
2
3b
Drive Shaft
Locking Pin
Pin Clip
