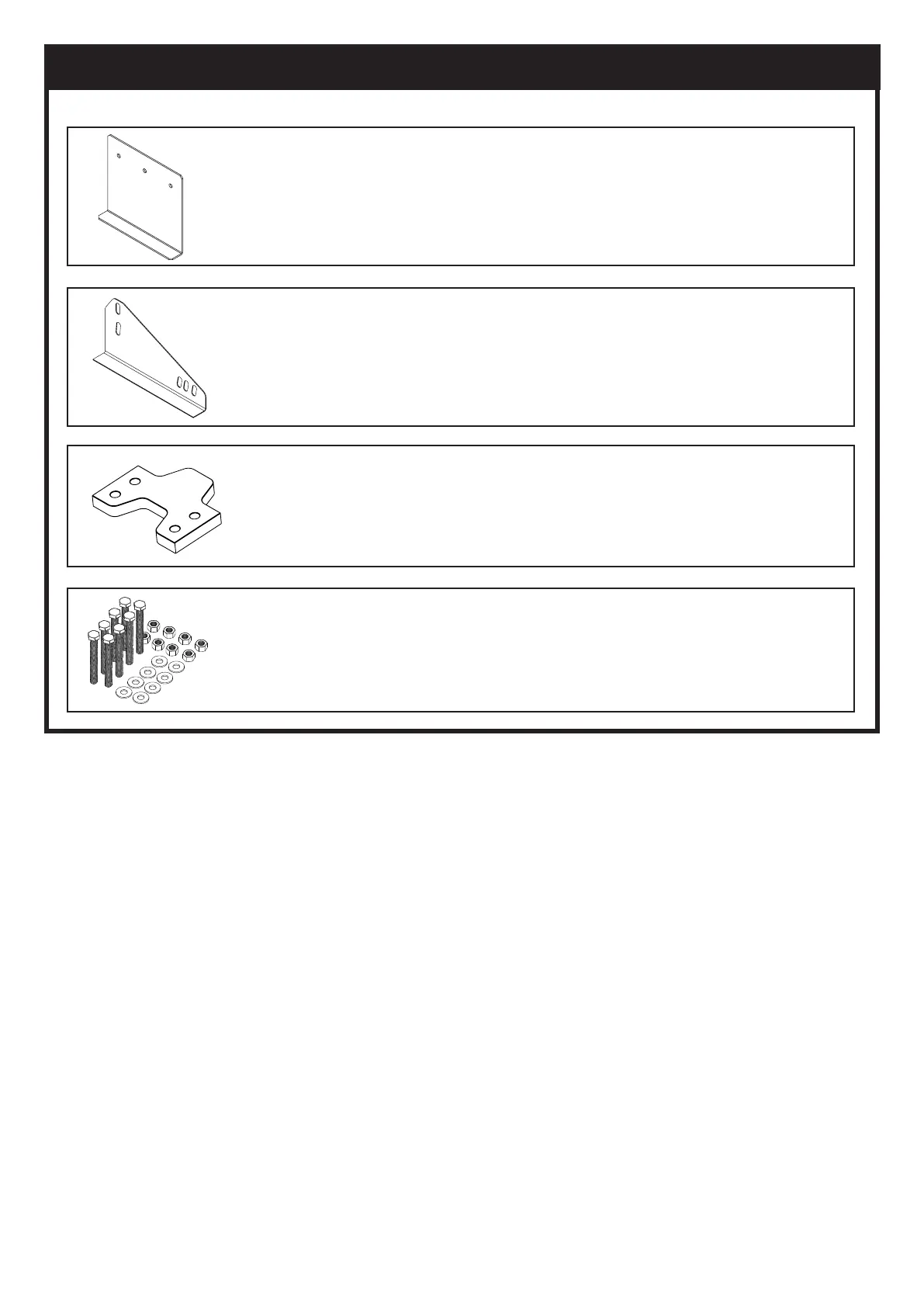

Optional Fitting Adapters
Low Prole Chassis Adapter Plates (Part No. CM-029)
If your chassis frame height is less than 140mm these plates must be tted to lower
the assembly to provide the correct height of 185mm. Drilling of your chassis may be
required. Note: In some countries, the installation must be checked by a professional
technician in order to adhere to local regulations.
Narrow Gauge Chassis Adapters (Part No. CM-030)
These plates must be utilised if you have an AL-KO Vario III/AV chassis which has a
frame thickness of less than 2.8mm. These must be positioned behind the axle using
pre-drilled holes already available on the chassis; so your mover must be tted behind
the axle.
16mm Spacers - 1 pair (Part No. CM-028)
Use spacers to lower the mover assembly if your chassis has a frame height of between
140 to 185mm. A maximum of 3 sets of spacers can be utilised to achieve correct frame
height of 185mm. A set of extended clamp bolts must be used in conjunction with these
spacers (Part No. 346-054).
Set of 8 M10 x 100 Bolts (Part No. CM-031)
Set of 8 extended clamp bolts for use with 16mm spacers (Part No. 346-051)
Additional chassis clamp adapters are available, as follows:
