56V-VOLT LITHIUM-ION COMMERCIAL BACKPACK BLOWER — LBPX8000/LBPX8000-FC 17

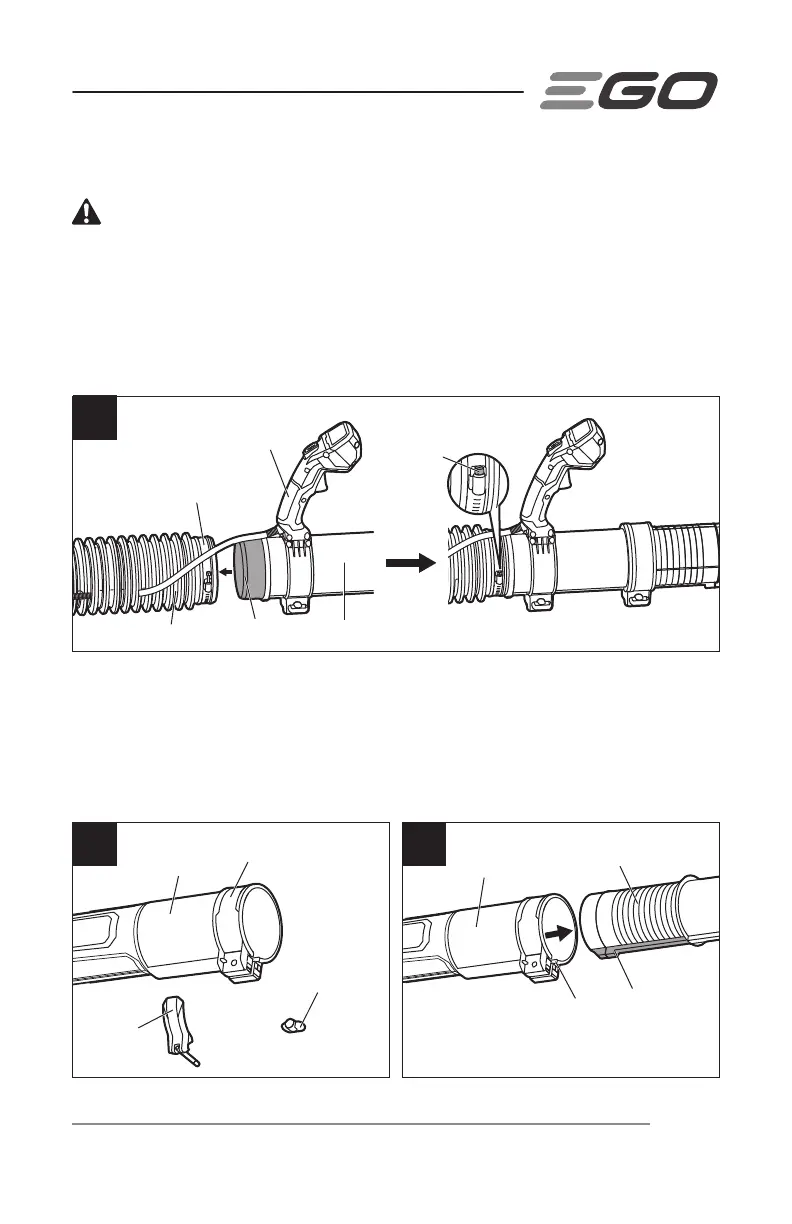

ASSEMBLING THE BLOWER TUBES
WARNING:
To prevent accidental starting that could cause serious personal
injury, always remove the battery pack(s) from the blower when assembling parts.
Connecting the Control-Handle Tube to the Bellows (Fig. 2)
1. Insert the upper end of the control-handle tube into the bellows as far as it will go.
2. Using a flat screwdriver (not included), tighten securely the screw in the clamping
collar fixed on the bellows.
2
Control Handle
Clamping Collar
Bellows
Screw
Upper End
Control-handle Tube
Connecting the Blower Tube to the Control-Handle Tube
1. Loosen and remove the quick-release lever and wing nut from the tube clamp
assembly fixed on the blower tube (Fig. 3a).
2. Align the groove in the blower tube with the rib on the control-handle tube, slide
the blower tube over the control-handle tube as far as it will go (Fig. 3b).
3b
Rib
Groove
Blower Tube
Control-handle Tube
3a
Blower Tube
Tube Clamp
Wing Nut
Quick-release
Lever
