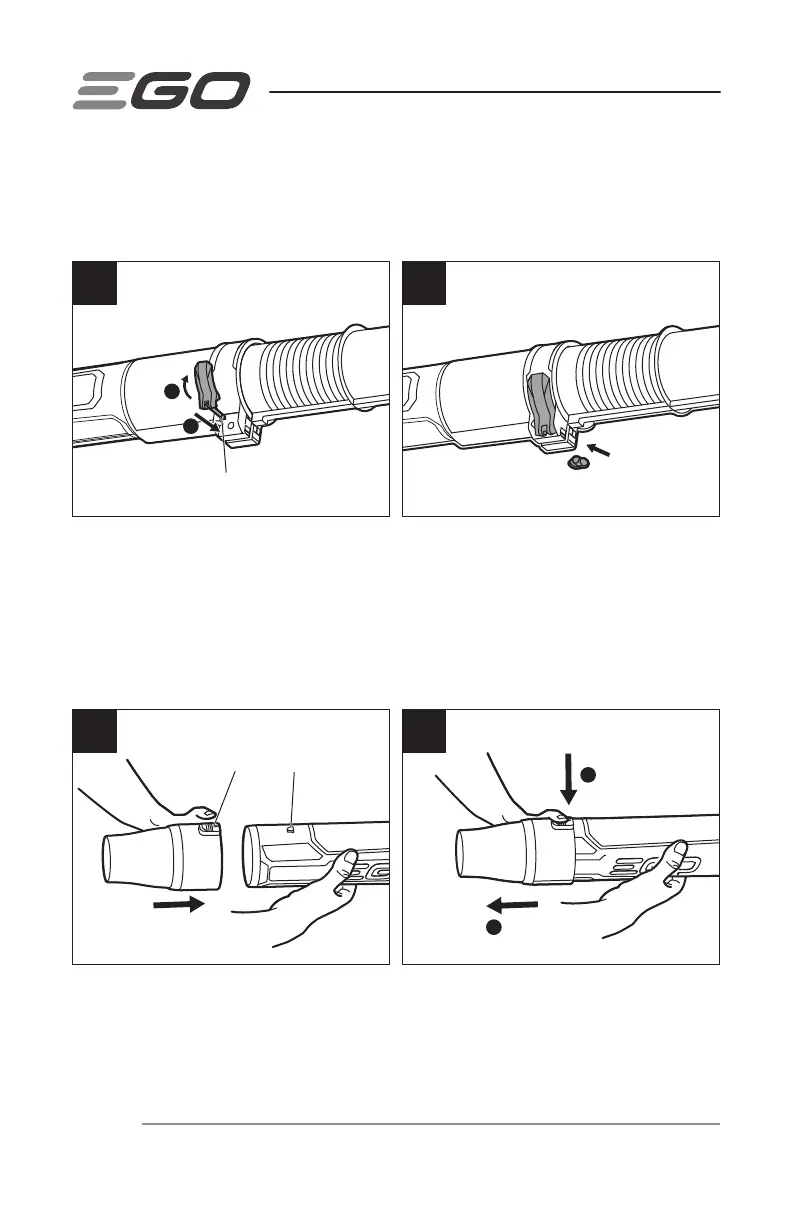

3. Insert the pin of the quick-release lever and close the lever onto the tube clamp
(Fig. 3c).
4. Tighten the wing nut to secure the tube clamp (Fig. 3d).
Connecting the Tapered Nozzle to the Blower Tube (Fig. 4a, 4b)
1. Align the groove in the nozzle with the latch on the tube. Push the nozzle over the
tube until it securely snaps into place.
2. To remove the nozzle, press and hold the nozzle-release button to disengage the
latch, then pull the nozzle straight from the blower tube.
3d
a
b
4b4a
Nozzle-release
Button
Latch
a
b
3c
Pin
